Sutton D613 0004 SDS Plus Masonry Drill Set - 4 Piece - 6 to 12mm x 160mm - 2 Cut

The Sutton D613 0004 is a four piece SDS Plus masonry drill set with 2-cut patented Destructor tungsten carbide tip (TCT) bits in 6, 8, 10 and 12 mm, each 160 mm overall length with a 100 mm flute length. It is for concrete, brick, aerated concrete, stone and granite.

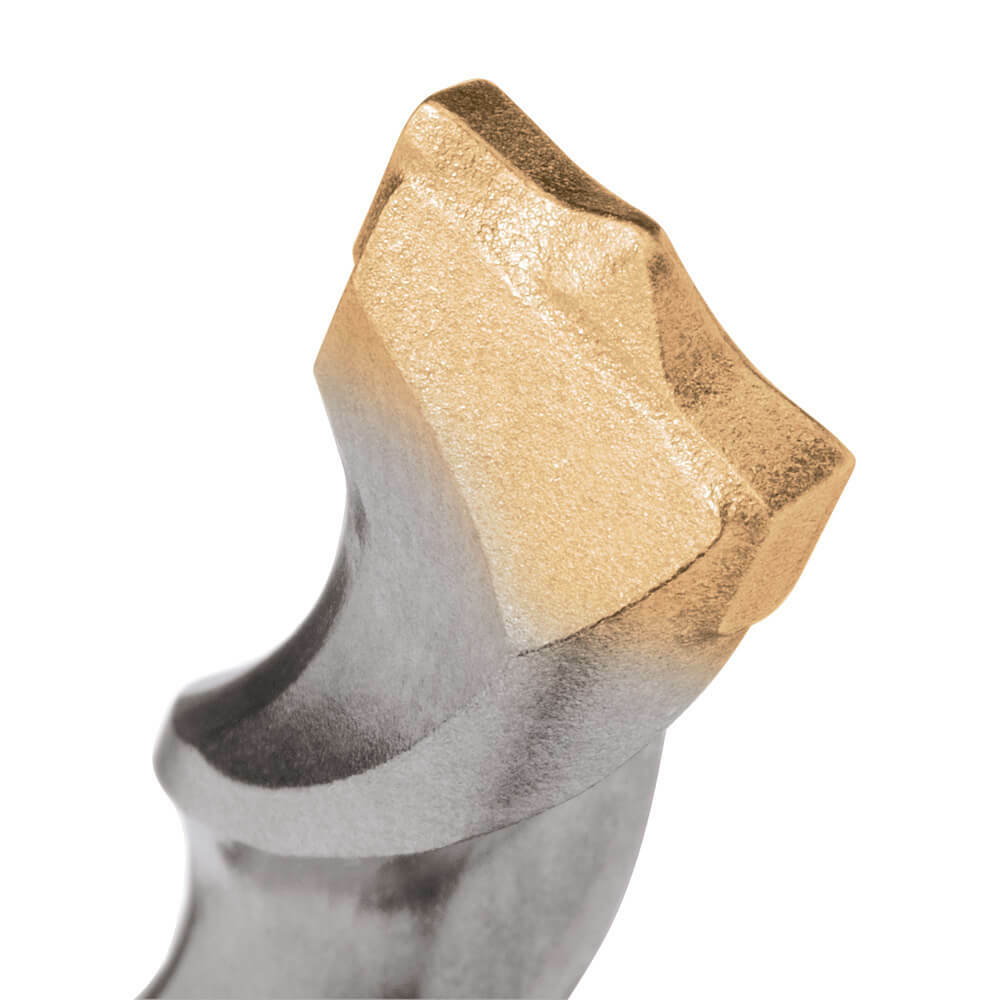

The patented Destructor carbide tip has an aggressive Z-shape self-centring point with wavy cutting edges, for superior destruction capacity. It is designed to drill 30% faster than conventional SDS drills. The combination spiral flute pairs a half-round spiral, which accelerates dust extraction away from the tip, with a square spiral that combines a compression channel with a depression chamber for controlled dust removal. The SDS Plus shank suits all SDS Plus rotary hammer drills. The sand-blasted finish is an environmentally friendly production method with zero heavy metals.

Where this product is used

• Drilling concrete, brick, aerated concrete, stone and granite with an SDS Plus rotary hammer.
• Applications include DIY, trade, professional, electrical, plumbing, carpentry, plastering and masonry work.
• Four sizes, 6, 8, 10 and 12 mm, for fixing and anchor holes in one case.

Set contents

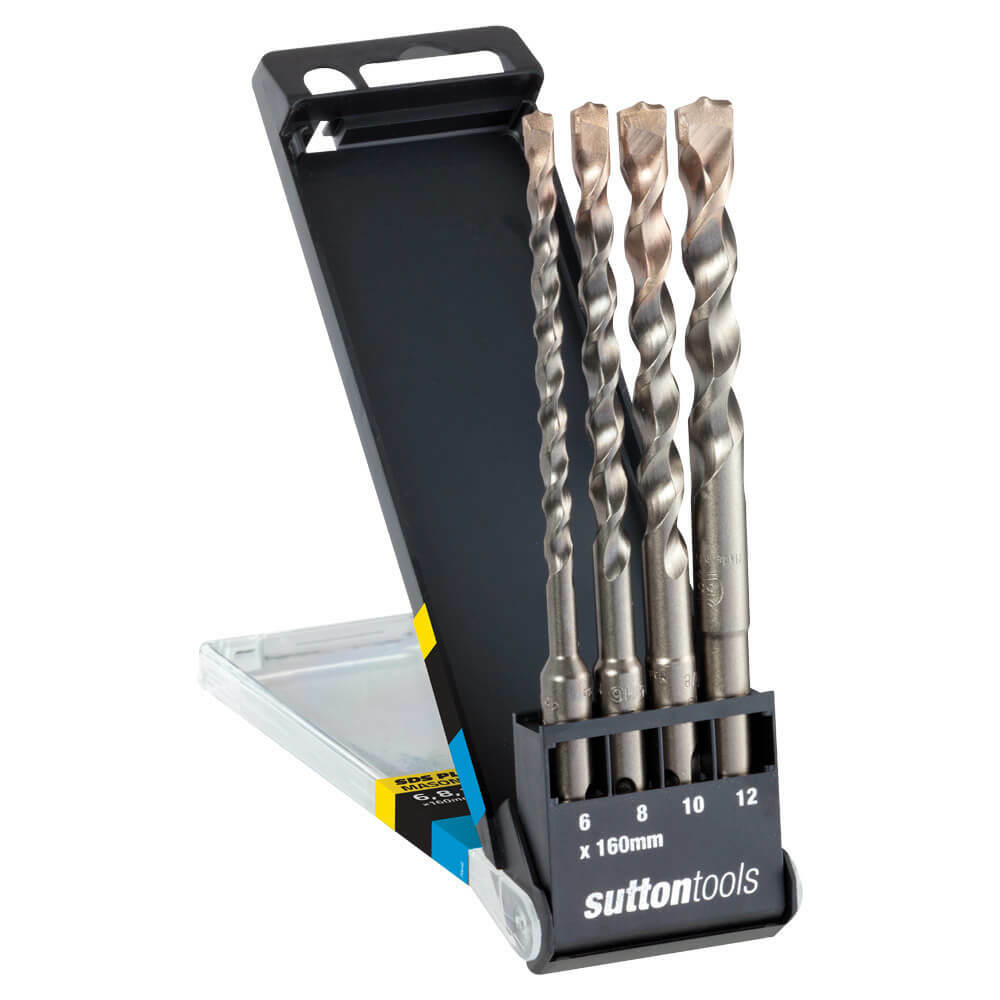

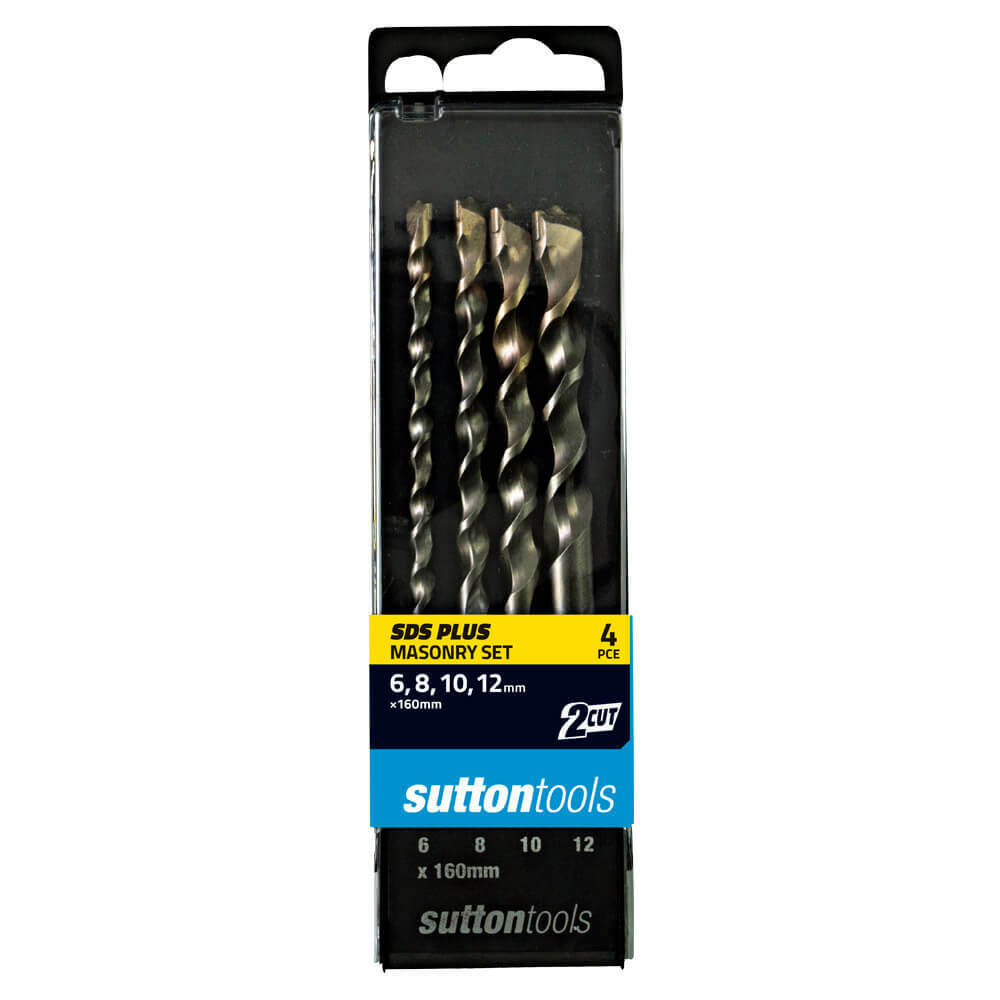

The set contains 4 pieces, all in the D613 2-cut series with an SDS Plus shank. Lengths are in millimetres.

Drilling notes

• Use in an SDS Plus rotary hammer drill with the hammer action on (rotation plus percussion).
• Apply steady, moderate pressure and let the hammer do the work; extra force does not speed up the cut.
• Choose a length so the hole depth sits within the flute length. For deeper holes step up to a longer series.
• Withdraw the bit from time to time in deep holes to help clear dust, and clear the dust from the hole before fitting an anchor.
• Match the drill diameter to the hole size the anchor or fixing manufacturer specifies.

Key specifications

Related drilling products

Individual bits: D613 160 mm 2-cut drill bits. Longer and shorter series: D612 110 mm, D614 210 mm and D615 260 mm. Browse all masonry drill bits and sets. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials.
