Sutton 10mm x 260mm D615 SDS Plus Masonry Drill Bit - 2 Cut - TCT

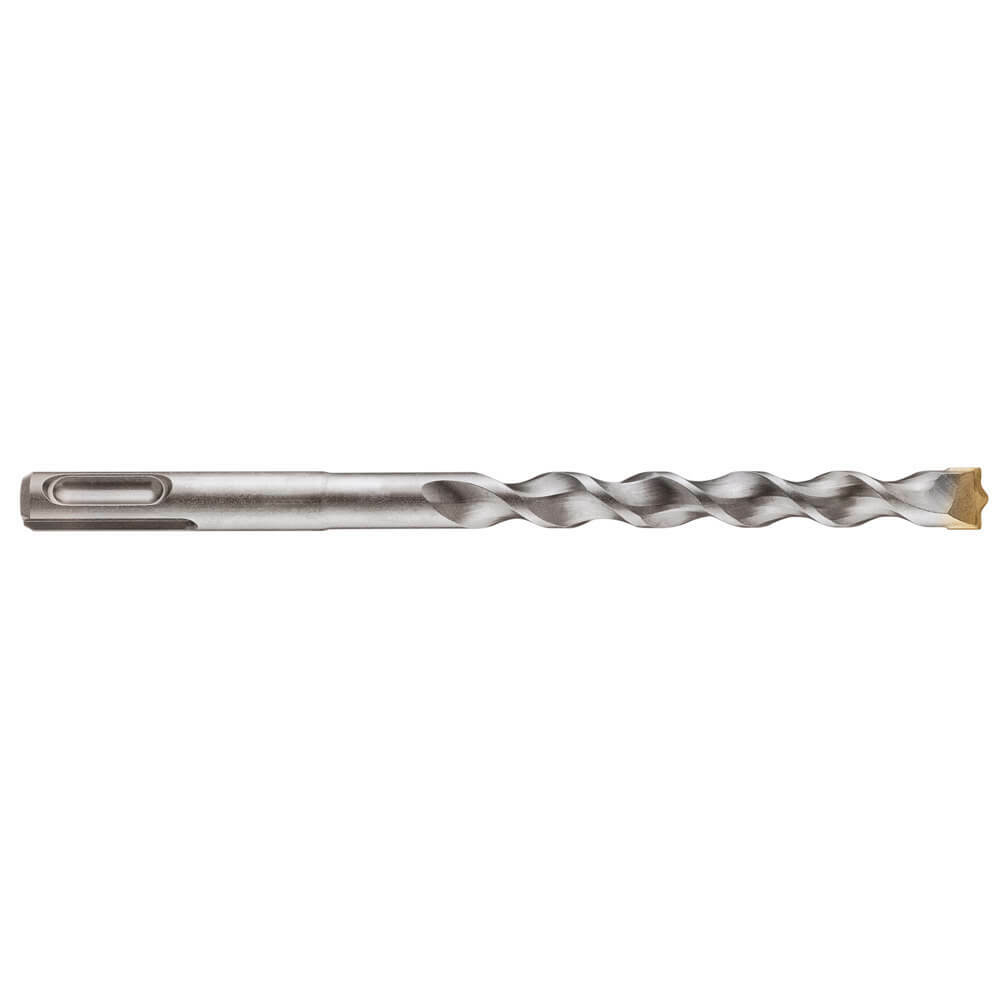

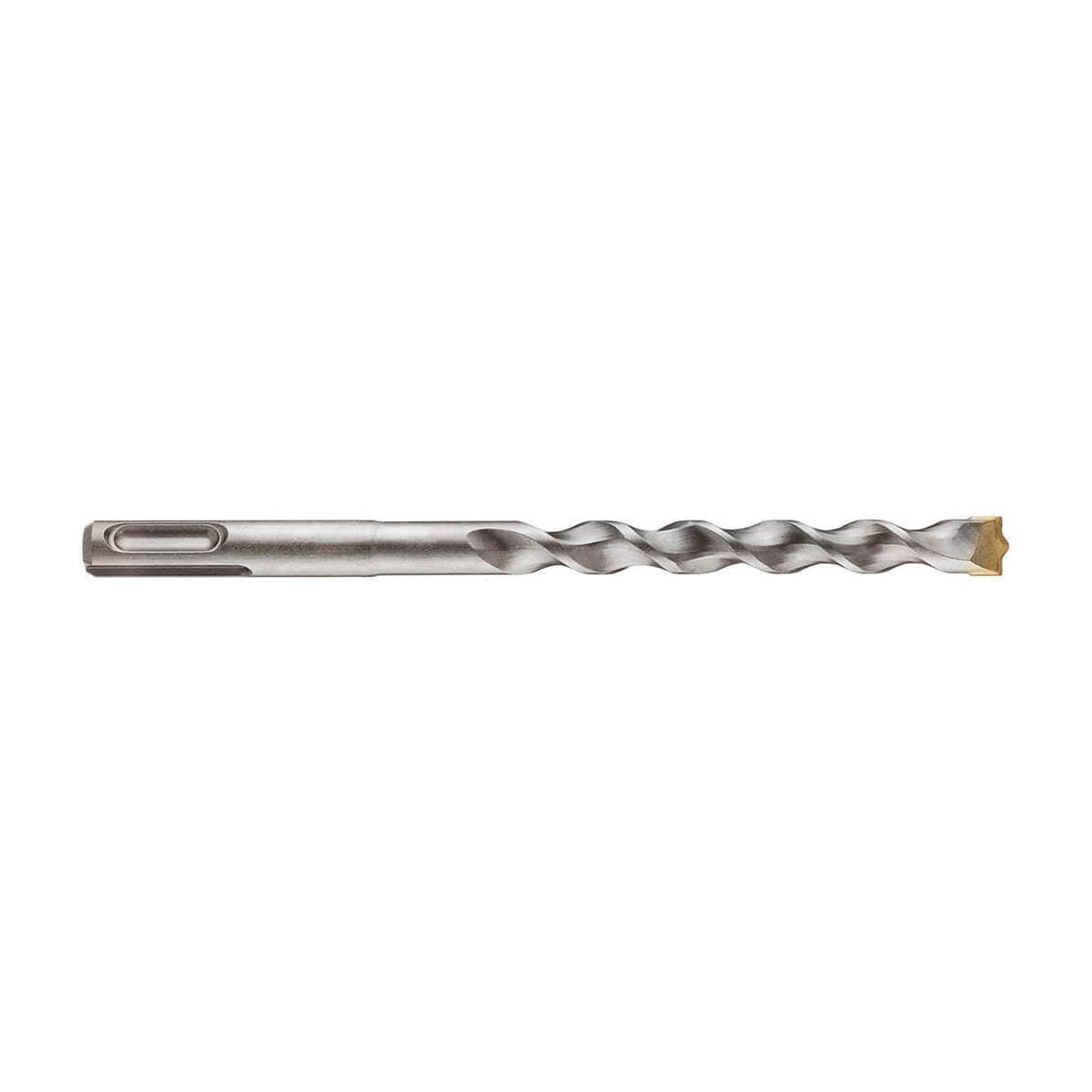

The Sutton D615 is a 2-cut SDS Plus masonry drill bit with a patented Destructor tungsten carbide tip (TCT), 260 mm overall length with a 200 mm flute length. This range has 6 sizes: 10, 12, 14, 16, 18 and 20 mm. It is for concrete, brick, aerated concrete, stone and granite.

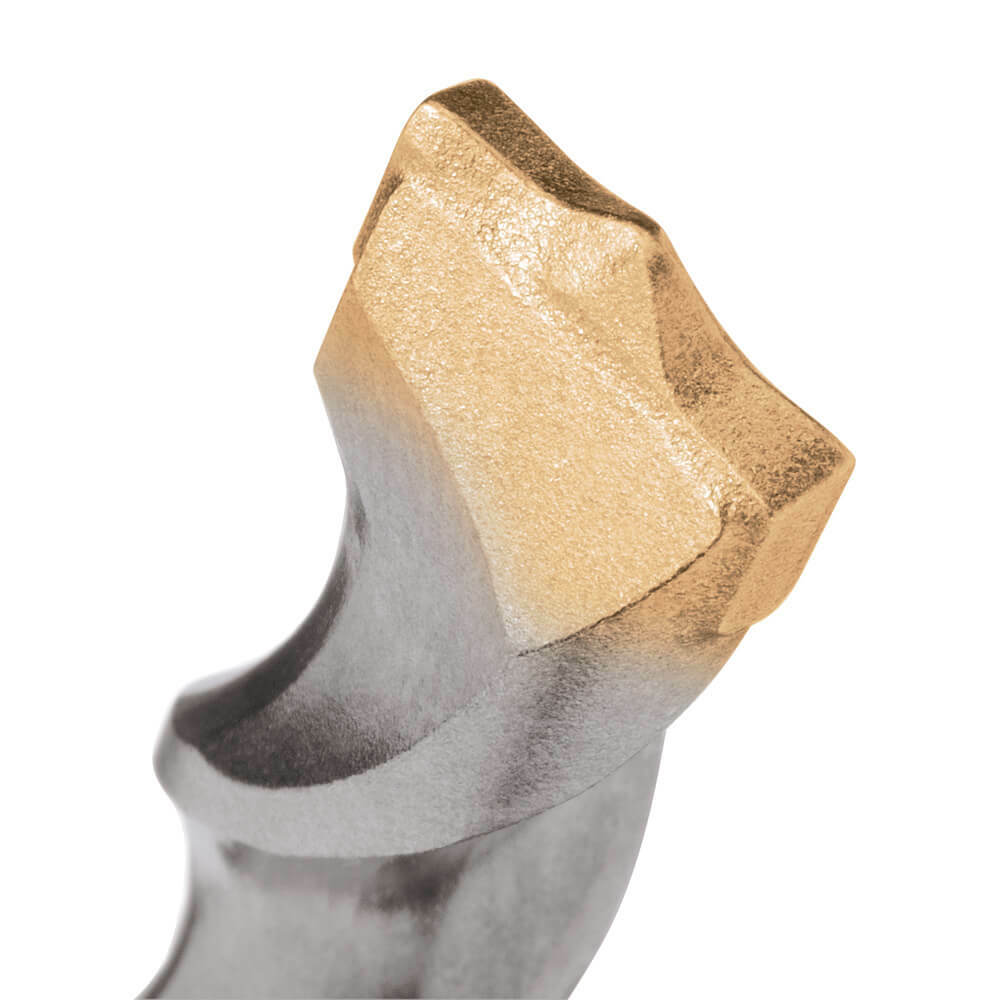

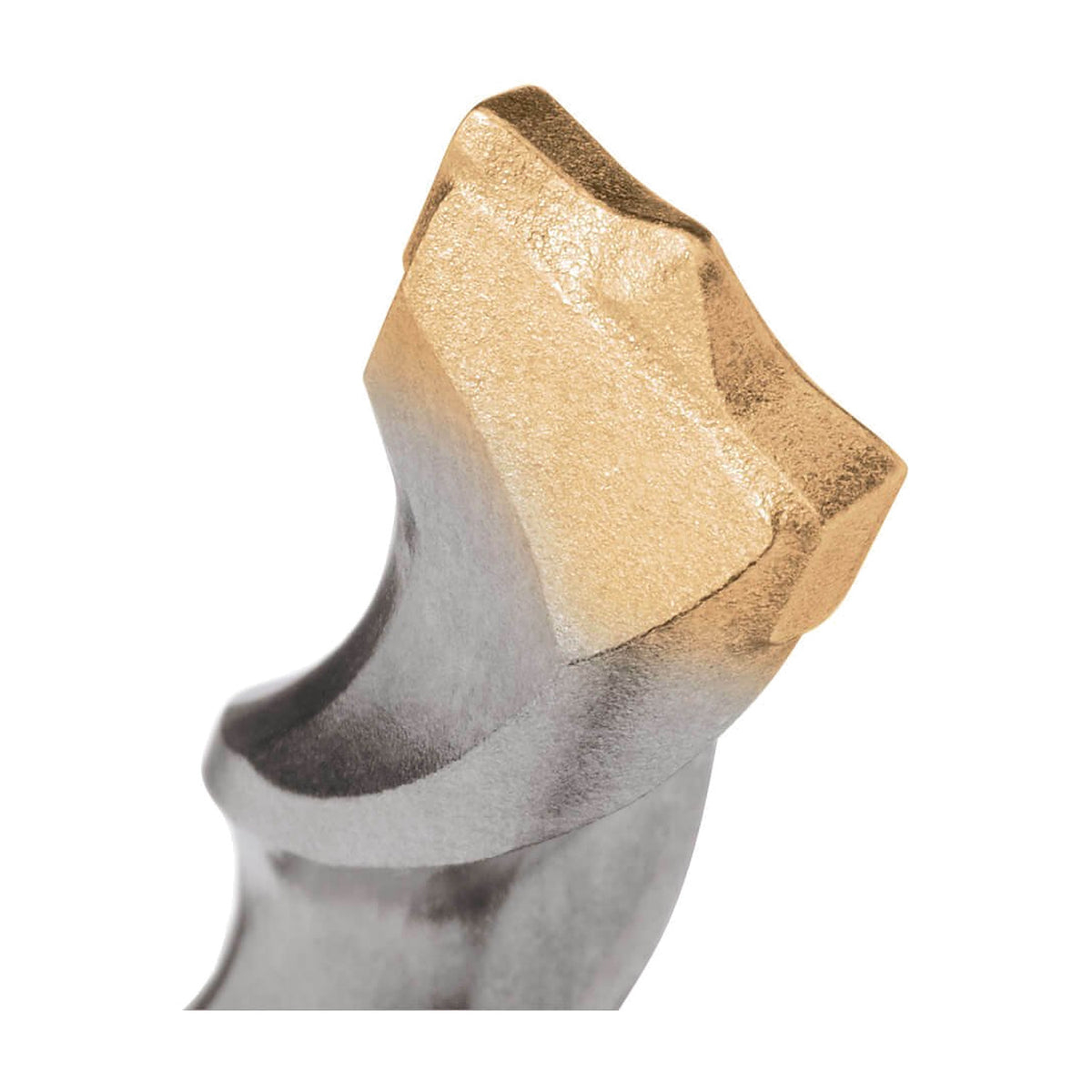

The patented Destructor carbide tip has an aggressive Z-shape self-centring point with wavy cutting edges, for superior destruction capacity. It is designed to drill 30% faster than conventional SDS drills. The combination spiral flute pairs a half-round spiral, which accelerates dust extraction away from the tip, with a square spiral that combines a compression channel with a depression chamber for controlled dust removal. The SDS Plus shank suits all SDS Plus rotary hammer drills. The sand-blasted finish is an environmentally friendly production method with zero heavy metals.

Where this product is used

• Drilling concrete, brick, aerated concrete, stone and granite with an SDS Plus rotary hammer.
• Applications include DIY, trade, professional, electrical, plumbing, carpentry, plastering and masonry work.
• Fixing and anchor holes up to the 200 mm flute length.

Sizes and item numbers

Every size in the range, with its Sutton item number. Overall length and flute length are in millimetres.

Drilling notes

• Use in an SDS Plus rotary hammer drill with the hammer action on (rotation plus percussion).
• Apply steady, moderate pressure and let the hammer do the work; extra force does not speed up the cut.
• Choose a length so the hole depth sits within the flute length. For deeper holes step up to a longer series.
• Withdraw the bit from time to time in deep holes to help clear dust, and clear the dust from the hole before fitting an anchor.
• Match the drill diameter to the hole size the anchor or fixing manufacturer specifies.

Key specifications
