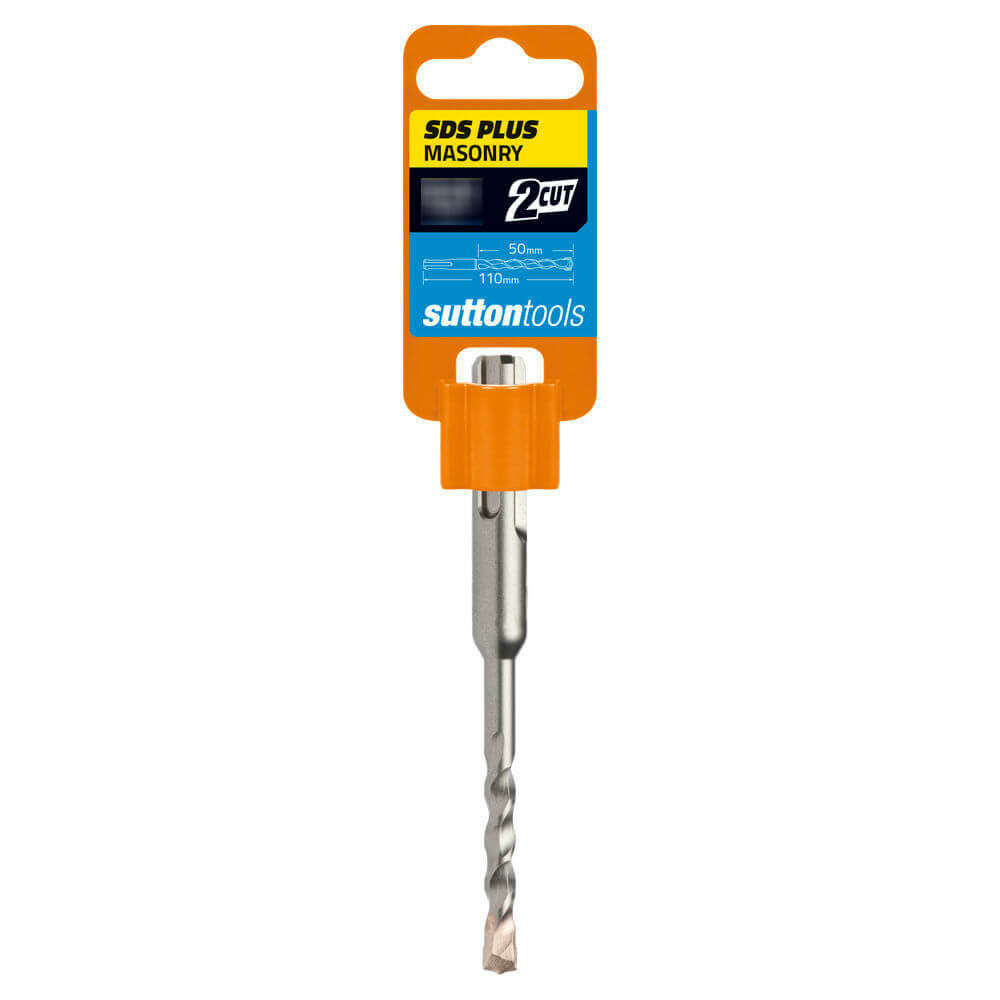

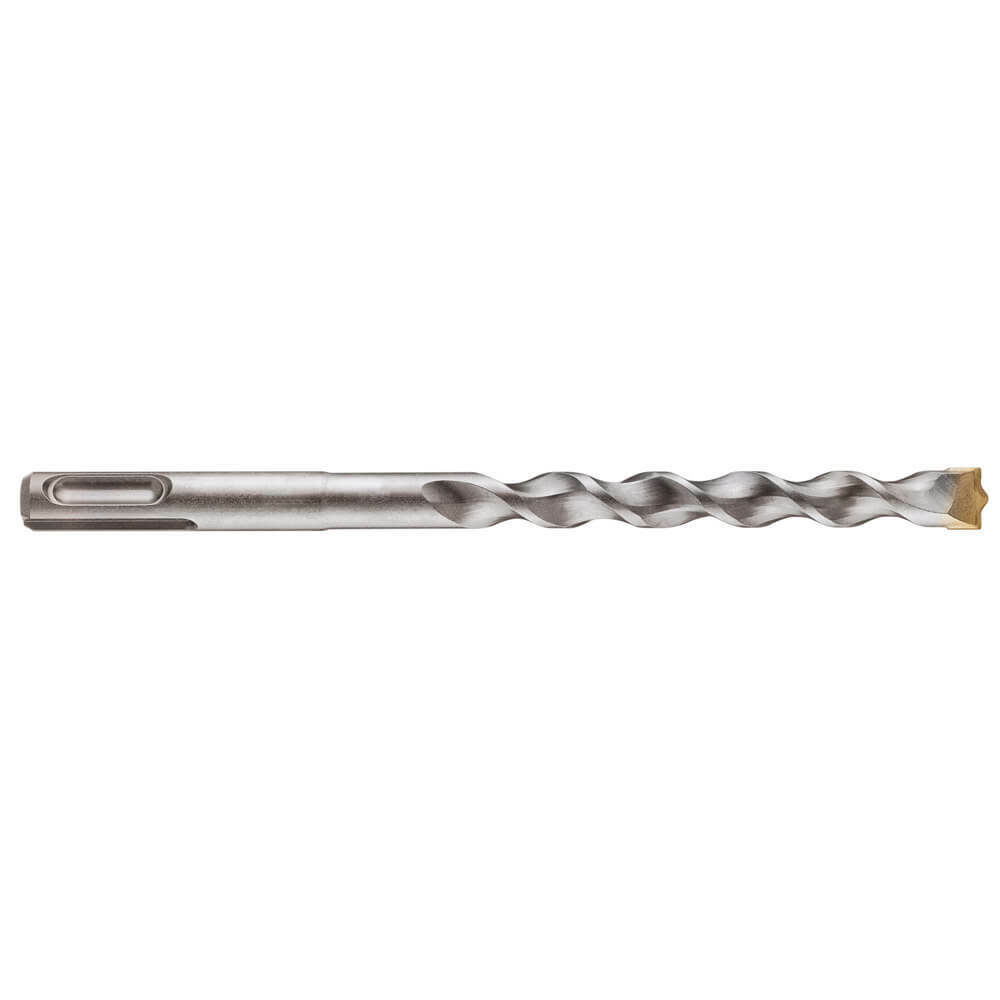

Sutton 5mm x 110mm D612 SDS Plus Masonry Drill Bit - 2 Cut - TCT

The Sutton D612 is a 2-cut SDS Plus masonry drill bit with a patented Destructor tungsten carbide tip (TCT), 110 mm overall length with a 50 mm flute length. This range has 4 sizes: 5, 5.5, 6 and 6.5 mm. It is for concrete, brick, aerated concrete, stone and granite.

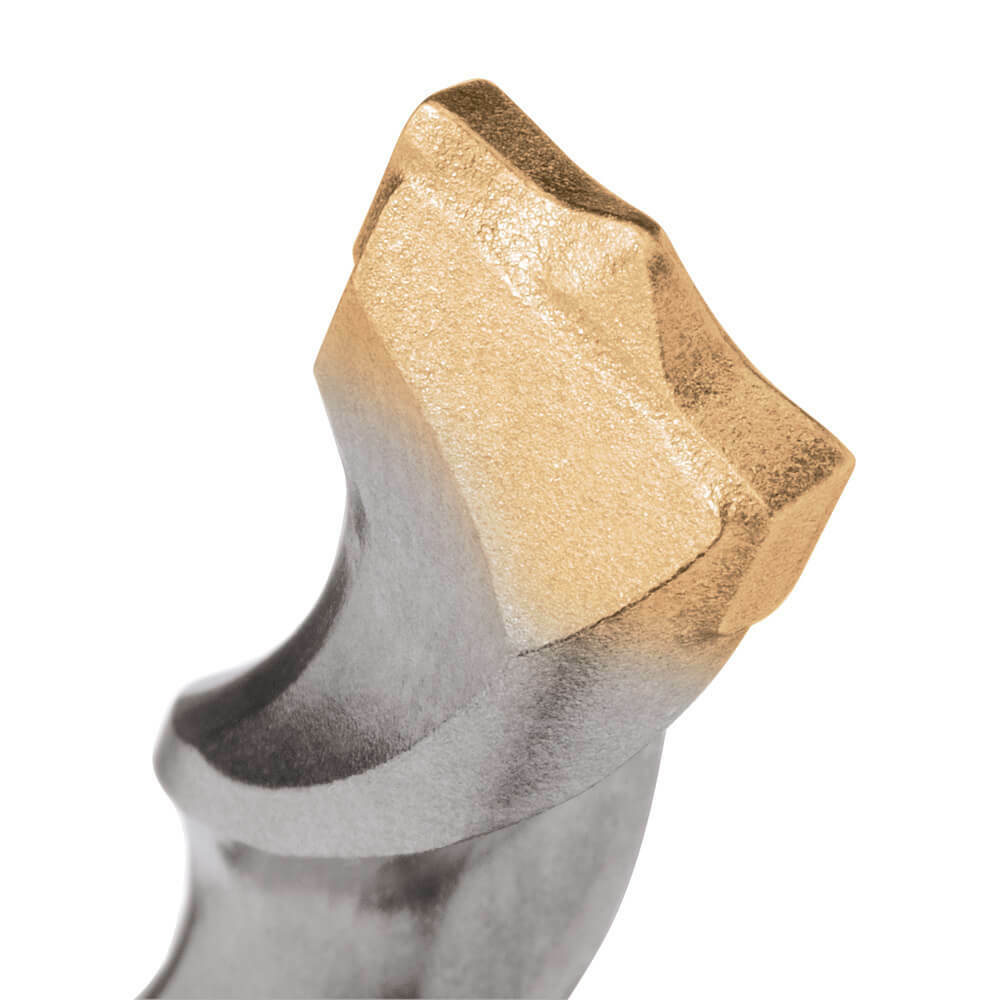

The patented Destructor carbide tip has an aggressive Z-shape self-centring point with wavy cutting edges, for superior destruction capacity. It is designed to drill 30% faster than conventional SDS drills. The combination spiral flute pairs a half-round spiral, which accelerates dust extraction away from the tip, with a square spiral that combines a compression channel with a depression chamber for controlled dust removal. The SDS Plus shank suits all SDS Plus rotary hammer drills. The sand-blasted finish is an environmentally friendly production method with zero heavy metals.

Where this product is used

• Drilling concrete, brick, aerated concrete, stone and granite with an SDS Plus rotary hammer.
• Applications include DIY, trade, professional, electrical, plumbing, carpentry, plastering and masonry work.
• Fixing and anchor holes up to the 50 mm flute length.

Sizes and item numbers

Every size in the range, with its Sutton item number. Overall length and flute length are in millimetres.

Drilling notes

• Use in an SDS Plus rotary hammer drill with the hammer action on (rotation plus percussion).
• Apply steady, moderate pressure and let the hammer do the work; extra force does not speed up the cut.
• Choose a length so the hole depth sits within the flute length. For deeper holes step up to a longer series.
• Withdraw the bit from time to time in deep holes to help clear dust, and clear the dust from the hole before fitting an anchor.
• Match the drill diameter to the hole size the anchor or fixing manufacturer specifies.

Key specifications

Related drilling products

Compare other Sutton SDS Plus masonry drill bits: D613 160 mm, D614 210 mm, D615 260 mm, D613 0004 four piece set and the 4-cut D631 to D637 series. Browse all masonry drill bits and sets. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials.
