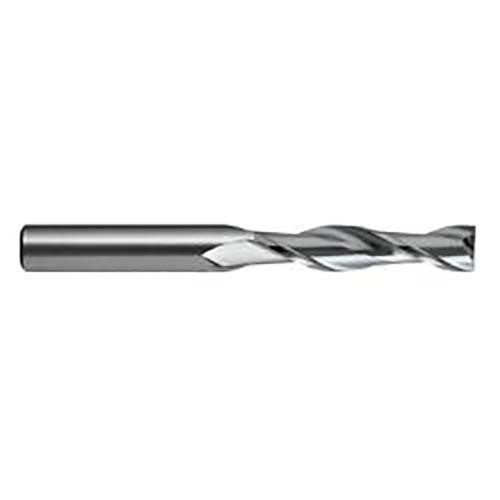

Sutton 2 Flute Slot Drill - R30 N - Long
- 2 Flute Slot Drill R30 N.
- Suitable for materials up to 1000 N/mm2.
- For soft steels & non-ferrous material.
- TiCN for longer tool life.
Specifications
Specifications
Specifications
- Designation: N
- Material: HSS Co.8
- Finish: Brt
- Shank Form: A
- Helix Angle: R30
- Point Tolerance: e8
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable-60HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton-E102 2 Flute Slot Drill - R30 N - Long
Sutton-E102 2 Flute Slot Drill - R30 N - Long
SKU: A0131644
Type: Slot Drill
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton-E102 2 Flute Slot Drill by Sutton Tools is a Slot Drill with HSS Co.8. It provides up to 1000 N/mm2 and is suitable for Aluminum & Magnesium - Heat Treatable-100HB.
