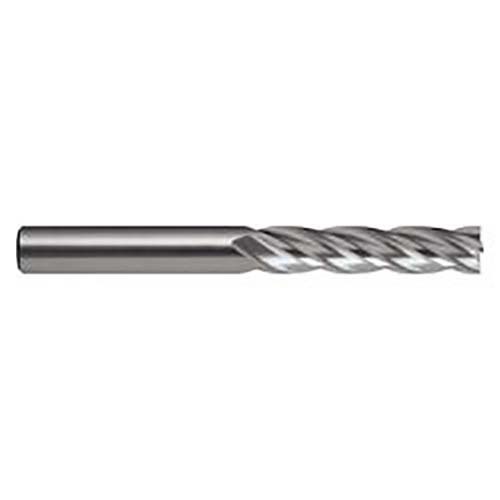

Sutton E127 6.5mm Endmill 4 Flute - 8% Cobalt HSS - Long
Available
The Sutton E127 is a 4 flute endmill made from 8% cobalt high speed steel (HSS Co.8), with a bright finish. It is in the long length series. This listing covers 6 metric sizes from 6.5 mm to 24 mm.
The cutting edge has an R30 helix and the designation is N. The shank is a plain cylindrical shank (DIN 1835 form A), with h6 shank tolerance and k10 cutting diameter tolerance.
Where this product is used
- Precision finish milling in steels up to 1000 N/mm2, where extra reach is needed.
- Side milling, shoulder milling and profiling on manual and CNC milling machines.
Design features
- 8% cobalt high speed steel (HSS Co.8) construction.
- Bright finish.
- 4 flutes, R30 helix.
- Plain cylindrical shank (DIN 1835 form A).
- Tolerances: cutting diameter (d1) k10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E127 0650 | 6.5 | 80 | 35 | 10 | 4 |
| E127 0750 | 7.5 | 80 | 35 | 10 | 4 |
| E127 0950 | 9.5 | 95 | 45 | 10 | 4 |
| E127 1100 | 11 | 105 | 55 | 12 | 4 |
| E127 2200 | 22 | 140 | 75 | 20 | 4 |
| E127 2400 | 24 | 160 | 90 | 25 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E127 |
| Type | Endmill, 4 flute, long length |
| Material | 8% cobalt HSS (HSS Co.8) |
| Finish | Bright |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 1835 form A) |
| Cutting diameter tolerance (d1) | k10 |
| Shank tolerance | h6 |
| Sizes in this listing | 6 sizes, 6.5 to 24 mm |
Related products
Related Sutton endmills: E127 imperial endmill (long), E127 metric endmill (long), E229 metric endmill (long), E230 6 mm endmill (long), TiCN, E125 imperial endmill (regular).
