Sutton E127 2mm Endmill 4 Flute - 8% Cobalt HSS - Long
Available

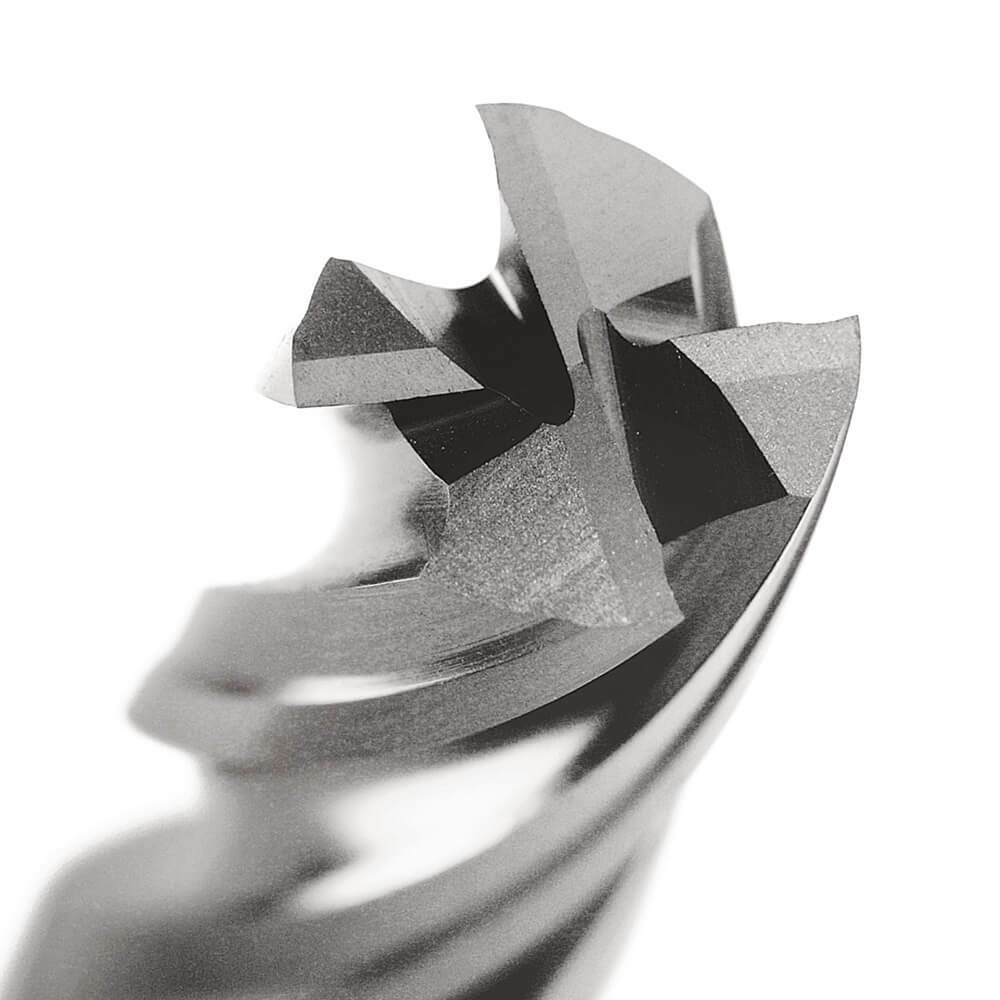

The Sutton E127 is a 4 flute endmill made from 8% cobalt high speed steel (HSS Co.8), with a bright finish. It is in the long length series. This listing covers 17 metric sizes from 2 mm to 32 mm. The 32 mm size has 6 flutes.
The cutting edge has an R30 helix and the designation is N. The shank is a plain cylindrical shank (DIN 1835 form A), with h6 shank tolerance and k10 cutting diameter tolerance.
Where this product is used
- Precision finish milling in steels up to 1000 N/mm2, where extra reach is needed.
- Side milling, shoulder milling and profiling on manual and CNC milling machines.
Design features
- 8% cobalt high speed steel (HSS Co.8) construction.
- Bright finish.
- 4 flutes, R30 helix.
- Plain cylindrical shank (DIN 1835 form A).
- Tolerances: cutting diameter (d1) k10, shank h6.
Sizes

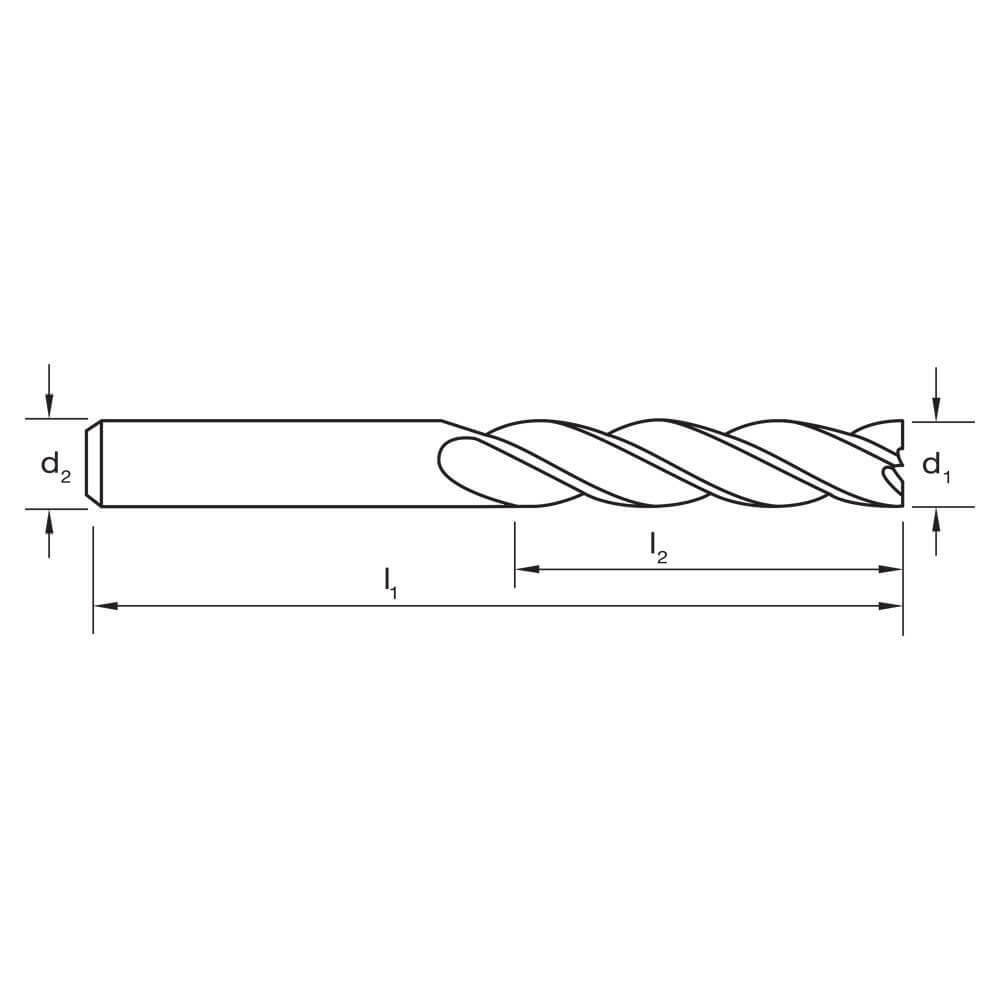

Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E127 0200 | 2 | 60 | 10 | 6 | 4 |
| E127 0250 | 2.5 | 60 | 15 | 6 | 4 |
| E127 0300 | 3 | 60 | 15 | 6 | 4 |
| E127 0400 | 4 | 60 | 20 | 8 | 4 |
| E127 0500 | 5 | 65 | 25 | 8 | 4 |
| E127 0600 | 6 | 65 | 25 | 8 | 4 |
| E127 0700 | 7 | 80 | 35 | 10 | 4 |
| E127 0800 | 8 | 80 | 35 | 10 | 4 |
| E127 0900 | 9 | 95 | 45 | 10 | 4 |
| E127 1000 | 10 | 95 | 45 | 10 | 4 |
| E127 1200 | 12 | 105 | 55 | 12 | 4 |
| E127 1400 | 14 | 110 | 55 | 16 | 4 |
| E127 1600 | 16 | 120 | 65 | 16 | 4 |
| E127 1800 | 18 | 130 | 65 | 20 | 4 |

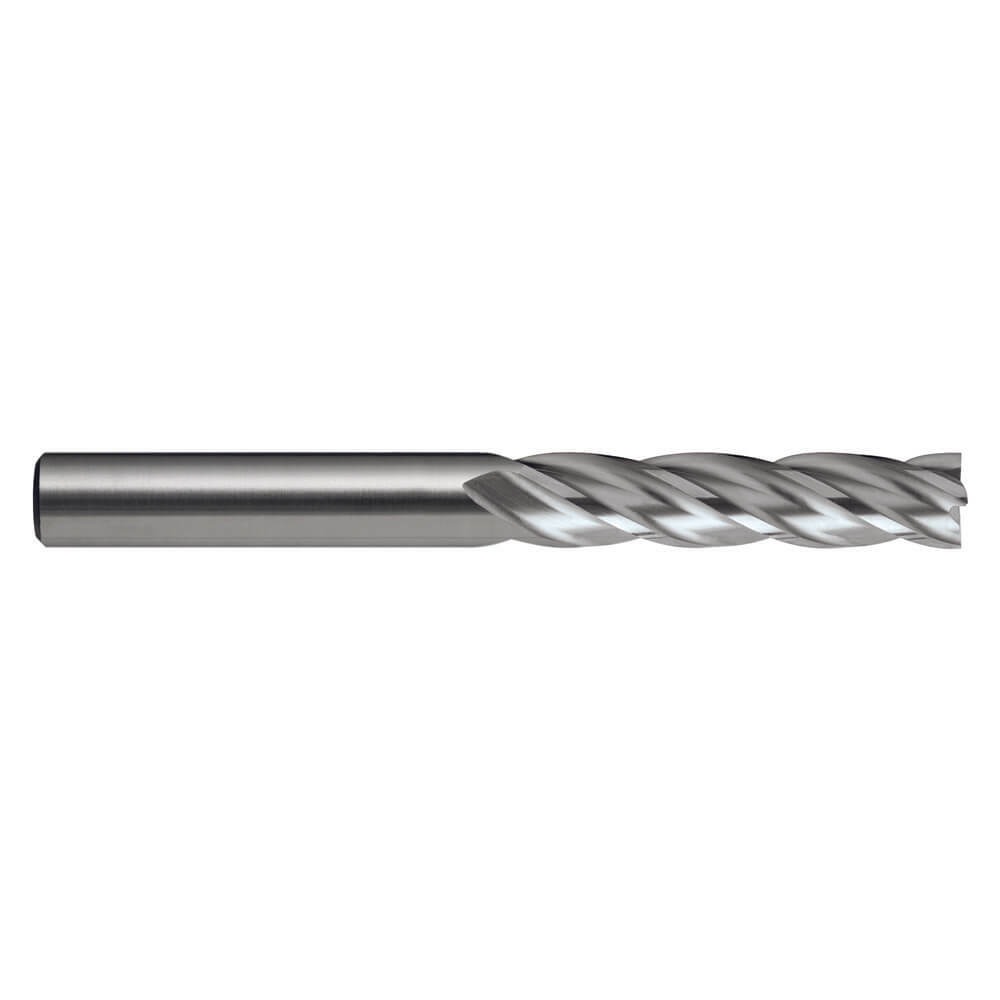

| E127 2000 | 20 | 140 | 75 | 20 | 4 |
| E127 2500 | 25 | 160 | 90 | 25 | 4 |
| E127 3200 | 32 | 190 | 105 | 32 | 6 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E127 |
| Type | Endmill, 4 flute, long length |
| Material | 8% cobalt HSS (HSS Co.8) |
| Finish | Bright |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 1835 form A) |
| Cutting diameter tolerance (d1) | k10 |
| Shank tolerance | h6 |
| Sizes in this listing | 17 sizes, 2 to 32 mm |
