Description
Description
Description
- For precision finish milling applications
Specifications
Specifications

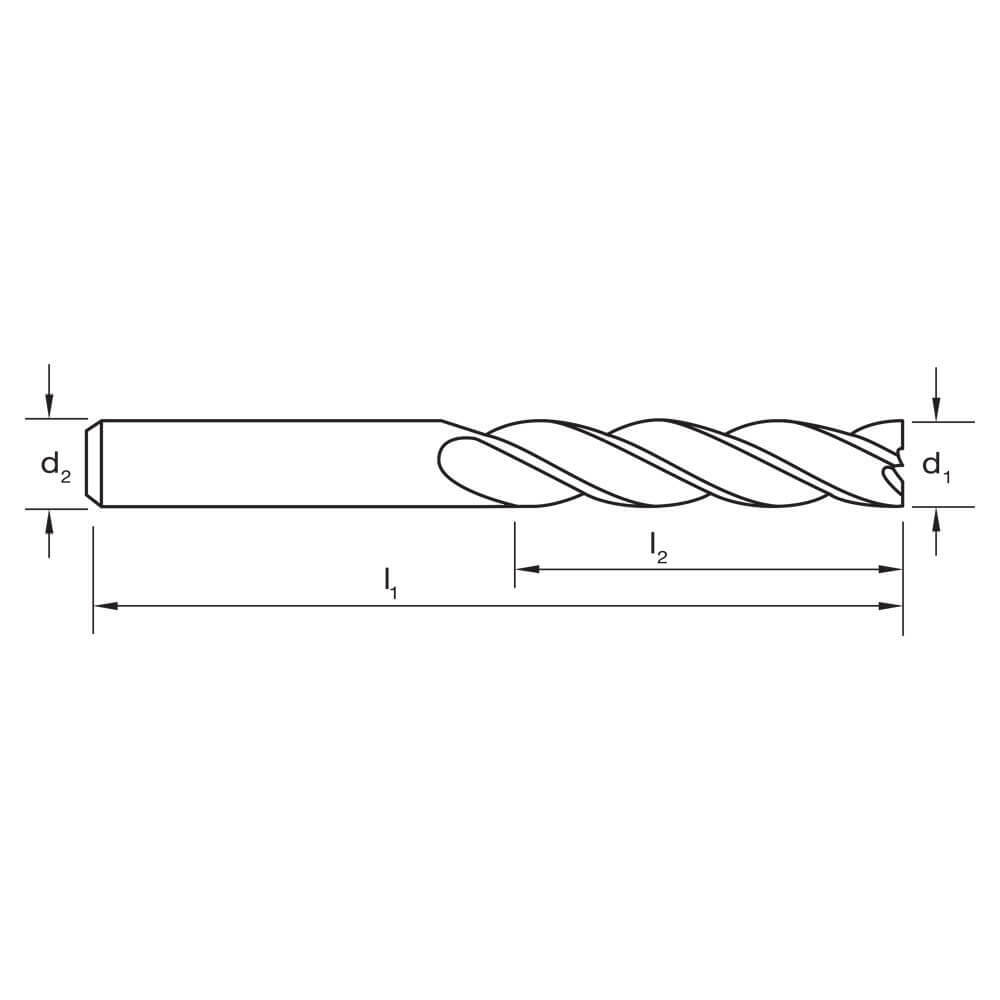

Dimensions
- d1 (mm): 4
- d2 (mm): 6
- l1 (mm): 60
- l2 (mm): 20
- Quantity: 1
Specifications
- Designation: N
- Material: High Speed Steel Cobalt-8
- Finish: TiCN
- Shank Form: A
- Helix Angle: R30
- Point Tolerance: k10
- Shank Tolerance: h6
- Point Form: Square End
- Type: N (finishing)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
- Optimal for Cast Iron, Ferritic/Pearlitic - 180 HB
- Optimal for Cast Iron – Chilled – 400 HB
Features & Benefits
Features & Benefits
Features
- 4 Flute Endmill R30 N
- Suitable for materials up to 1000 N/mm2
- TiCN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

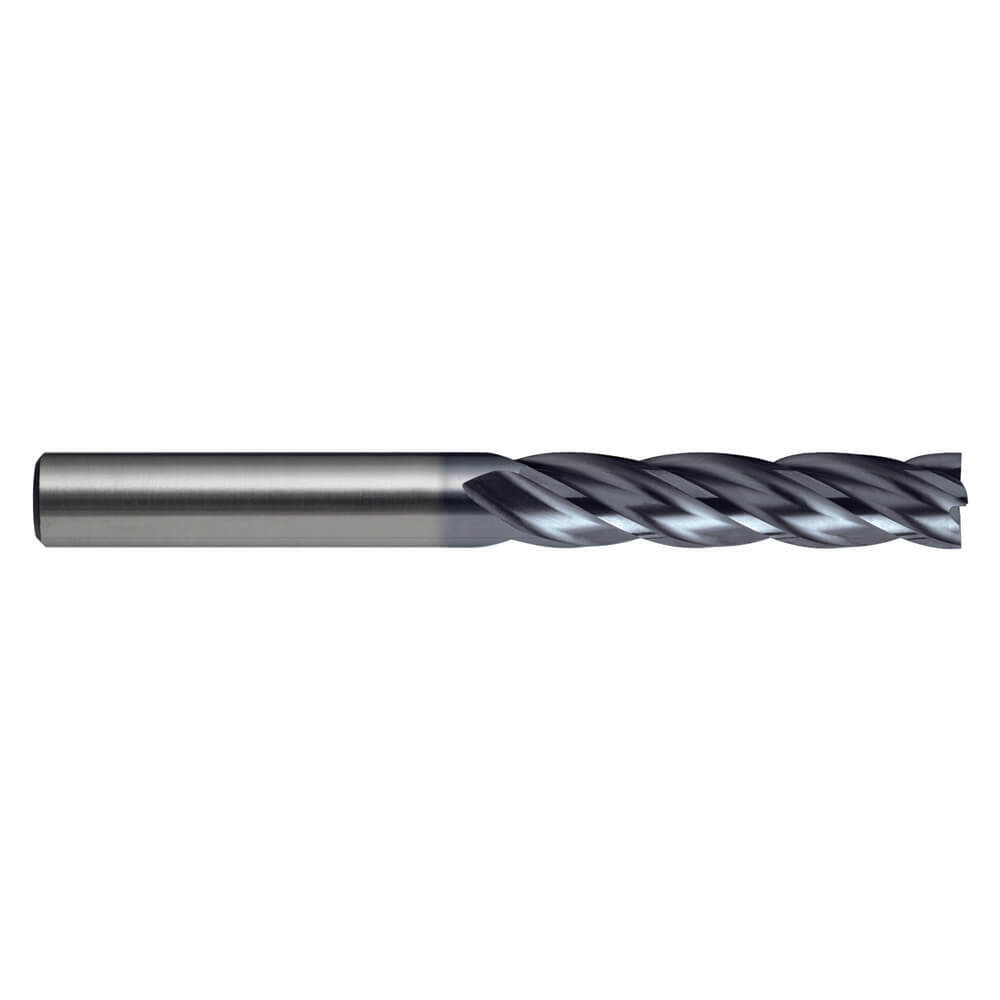

Sutton E230 Metric 4 Flute Endmill - 8% Cobalt Steel - TiCN - Long
Sutton E230 Metric 4 Flute Endmill - 8% Cobalt Steel - TiCN - Long
SKU: A0009113
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E230 Metric 4 Flute Endmill, crafted from 8% cobalt steel, offers durability. It has a TiCN finish for a longer tool life and can handle materials up to 1000 N/mm2. Its dimensions make it suitable for precision finish milling applications.
