Sutton-E1510400-4-x-55mm-3-Flute-Roughing-Endmill-11%-Cobalt-HRS

Sutton-E1510500-5-x-57mm-4-Flute-Roughing-Endmill-11%-Cobalt-HRS

Sutton-E1510600-6-x-57mm-4-Flute-Roughing-Endmill-11%-Cobalt-HRS

Description +

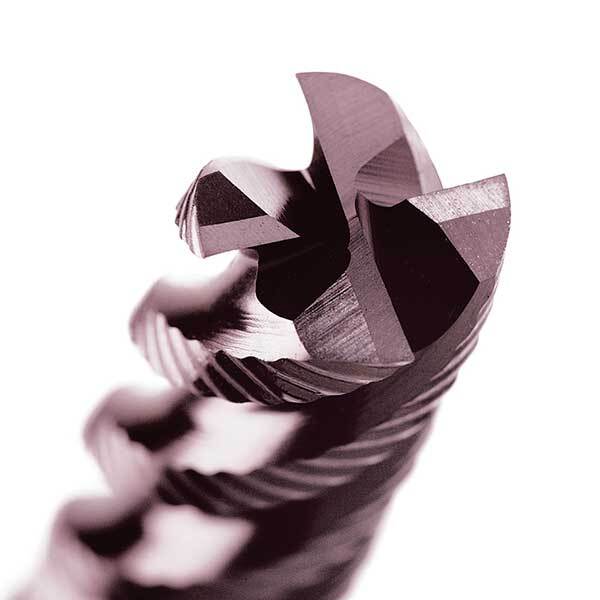

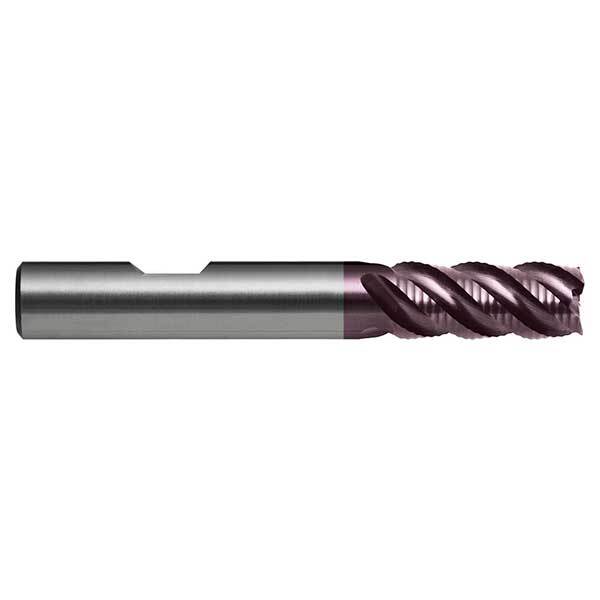

Sutton Tools Rougher - HRS (Fine) - R30 UNI - Regular

Rougher, HRS (fine), R45 UNI, Regular offers superior performance.
For roughing applications.
HRS geometry allows for heavy cuts in short & long chipping materials.
TiAlN For longer tool life.

Specifications +

Specifications

Designation: UNI
Material: SPM
Finish: TiAlN
Shank Form: B
Helix Angle: R45
Point Tolerance: js14
Shank Tolerance: h6
Point Form:45Â° Corner Chamfer
Type: HRS (fine pitch)
Standard: DIN844K

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C) - 300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 350HB
Optimal for Steel - High alloy, cast & tool - 325HB
Optimal for Steel - Corrosion resistant & cast - Martensitic - 240HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic - 160HB
Optimal for Cast Iron, Malleable - Ferritic - 130HB

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E151 Rougher - HRS (Fine) - R30 UNI - Regular

SKU: A0131081

Type: Rougher Endmill

$119.86

Inc. GST

Buy It Now

Available

The Sutton E151 Rougher by Sutton Tools is a Rougher Endmill with TiAlN finish. It provides R45 helix angle and is suitable for Steel - Low alloy & cast < 5% of alloying elements - 350HB.
