Description
Description
Descriptions
- For roughing applications
- HR geometry allows for heavy cuts, in harder materials
Specifications
Specifications

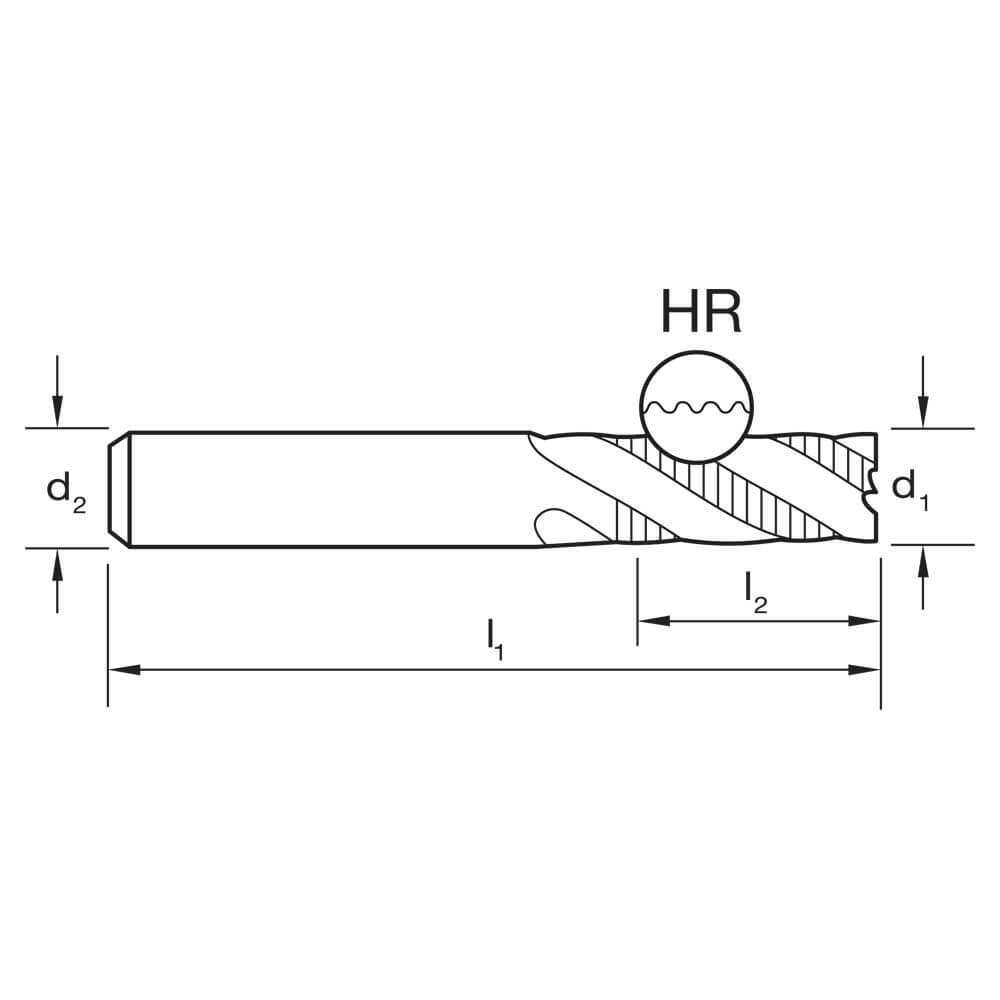

Dimensions
- d1 (mm): 6
- d2 (mm): 10
- l1 (mm): 60
- l2 (mm): 15
- No. of Flutes: 3
- Quantity: 1
Specifications
- Designation: NH
- Material: High Speed Steel Cobalt-8
- Finish: Bright
- Shank Form: A
- Helix Angle: R30
- Point Tolerance: js14
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: HR (fine pitch)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Features & Benefits
Features & Benefits
Features
- HR (fine) R30 NH Rougher Regular
- Suitable for materials up to 1300 N/mm2
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

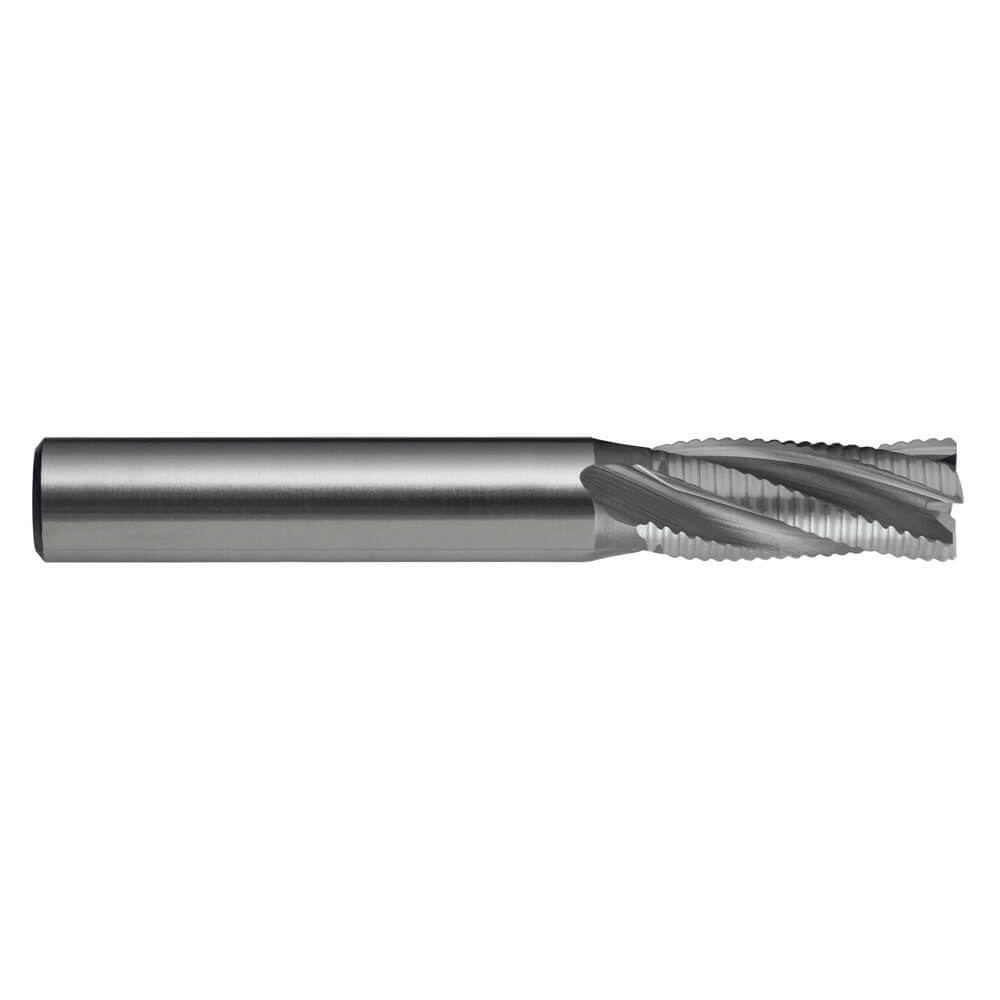

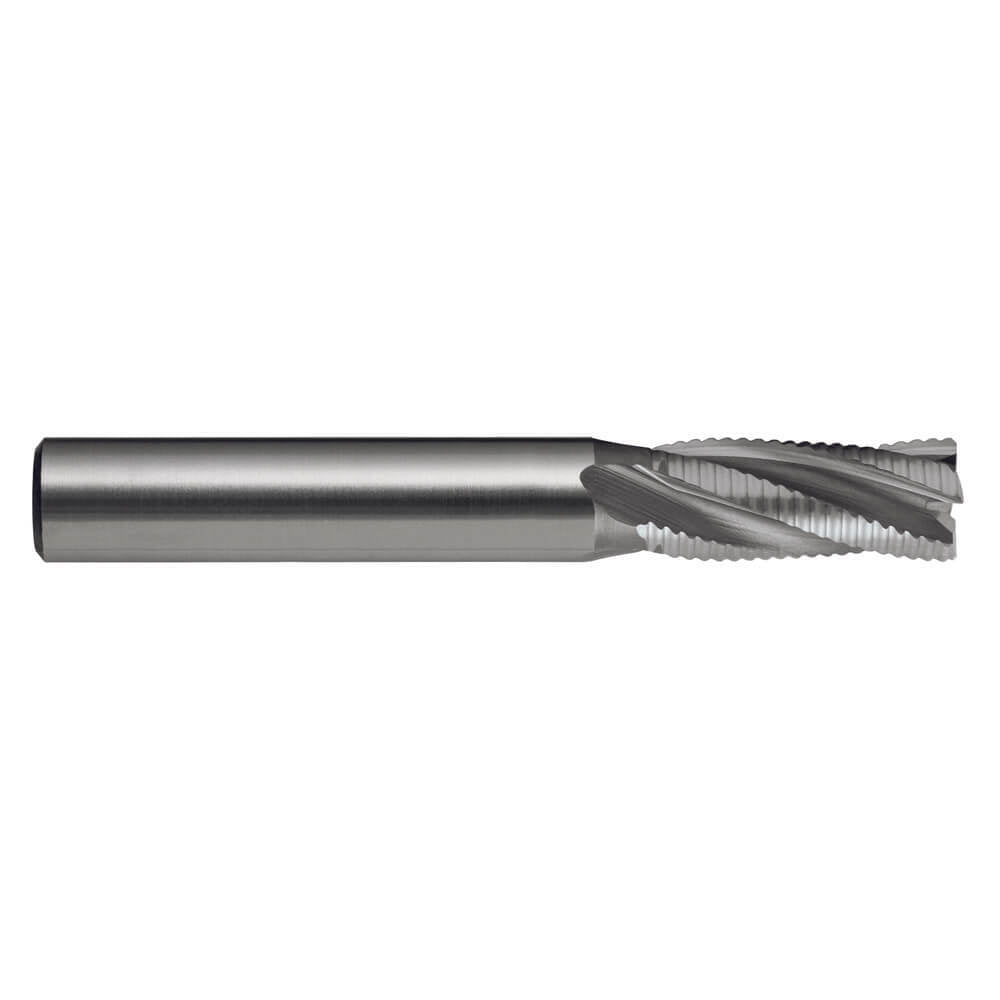

Sutton E168 Metric 3-4 Flute Roughing Endmill - 8% Cobalt - Regular
Sutton E168 Metric 3-4 Flute Roughing Endmill - 8% Cobalt - Regular
SKU: A0009008
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E168 Metric 3-4 Flute Roughing Endmill is ideal for roughing applications. Constructed from High Speed Steel Cobalt-8, it supports heavy cuts in hard materials. Its dimensions are d1 and d2: 10mm, l1: 75mm, l2: 25mm.
