Description
Description
Descriptions
- For roughing applications
- NR geometry allows for heavy cuts
Specifications
Specifications

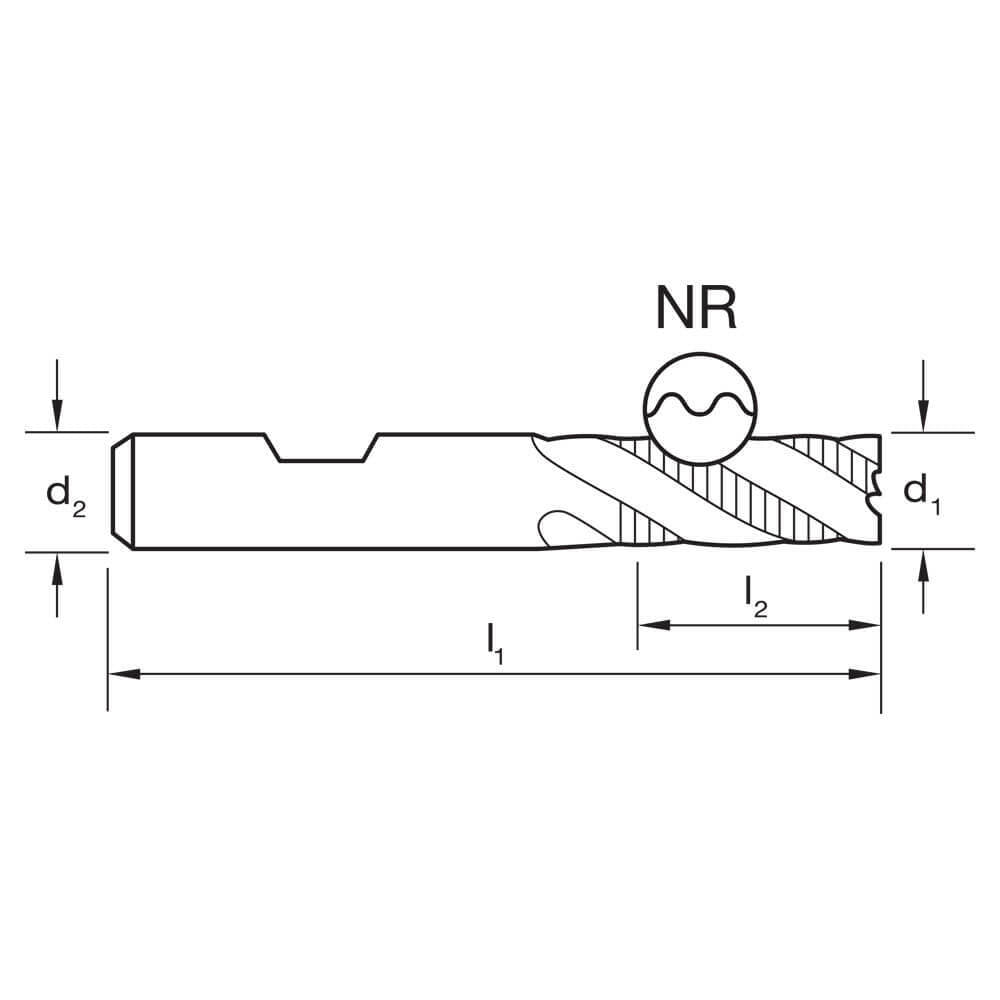

Dimensions
- d1 (mm): 16
- d2 (mm): 16
- l1 (mm): 95
- l2 (mm): 40
- No. of Flutes: 4
- Quantity: 1
Specifications
- Designation: WN
- Material: High Speed Steel Cobalt-8
- Finish: Bright
- Shank Form: B
- Helix Angle: R30
- Point Tolerance: js14
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: NR (coarse pitch)
- Standard: JIS
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
Features & Benefits
Features & Benefits
Features
- NR (normal) Rougher R30 WN
- Suitable for materials up to 1000 N/mm2
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E144 Metric 4-6 Flute Roughing Endmill - 8% Cobalt - Regular
Sutton E144 Metric 4-6 Flute Roughing Endmill - 8% Cobalt - Regular
SKU: A0008967
- Wide Range
- Reliable Services
- Proven Trust
Available

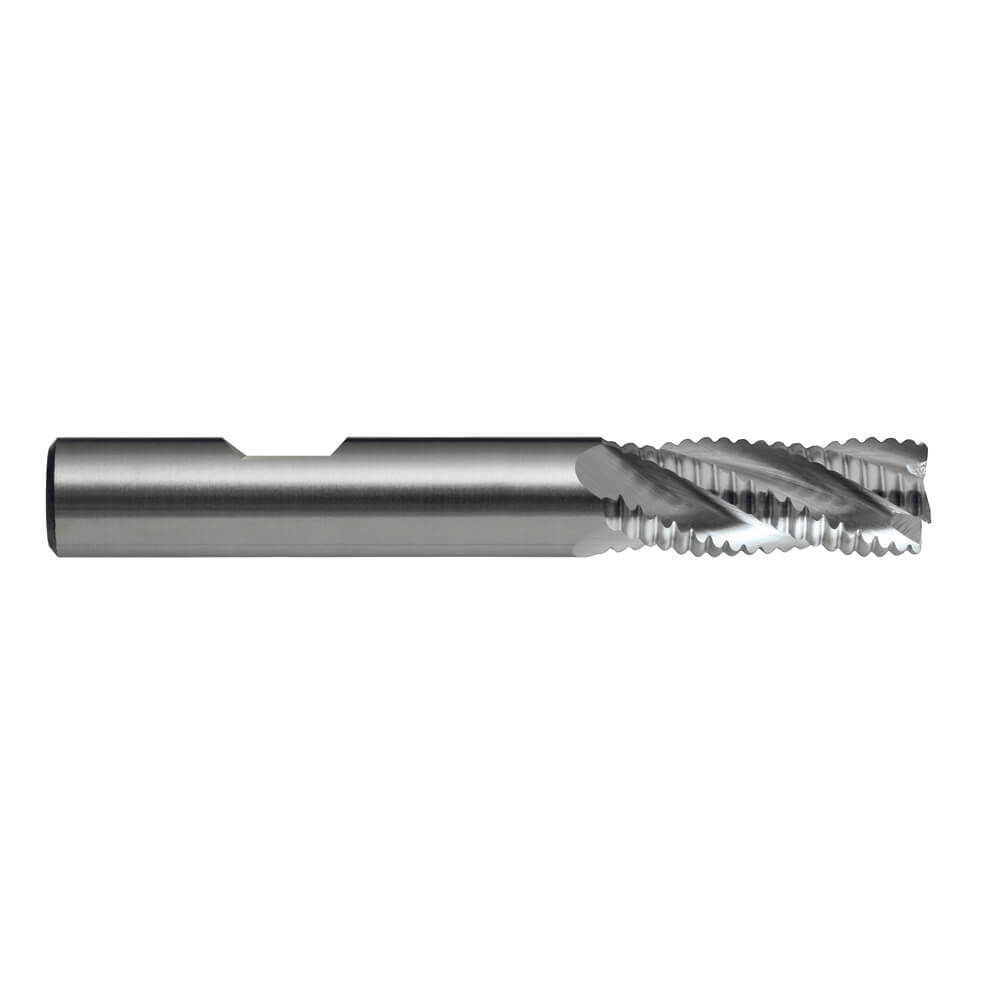

The Sutton E144 Metric 4-6 Flute Roughing Endmill excels in roughing applications. Its NR geometry supports heavy cuts and it's crafted from High Speed Steel Cobalt-8. With dimensions of 16mm d1 and d2, 95mm l1, and 40mm l2, it's ideal for machining and milling.
