Sutton E252 Rougher - HR (fine) - R30 VA - Regular1

Sutton E252 Rougher - HR (fine) - R30 VA - Regular2

Sutton E252 Rougher - HR (fine) - R30 VA - Regular3

Sutton E2520600 6 x 68mm 3 Flute Roughing Endmill 11% Cobalt R30 VA

Sutton E2520800 8 x 88mm 3 Flute Roughing Endmill 11% Cobalt R30 VA

Sutton E2521000 10 x 95mm 4 Flute Roughing Endmill 11% Cobalt R30 VA

Sutton E2521200 12 x 110mm 4 Flute Roughing Endmill 11% Cobalt R30 VA

Sutton E2521600 16 x 123mm 4 Flute Roughing Endmill 11% Cobalt R30 VA

Sutton E2522000 20 x 141mm 4 Flute Roughing Endmill 11% Cobalt R30 VA

Sutton E2522500 25 x 166mm 5 Flute Roughing Endmill 11% Cobalt R30 VA

Description +

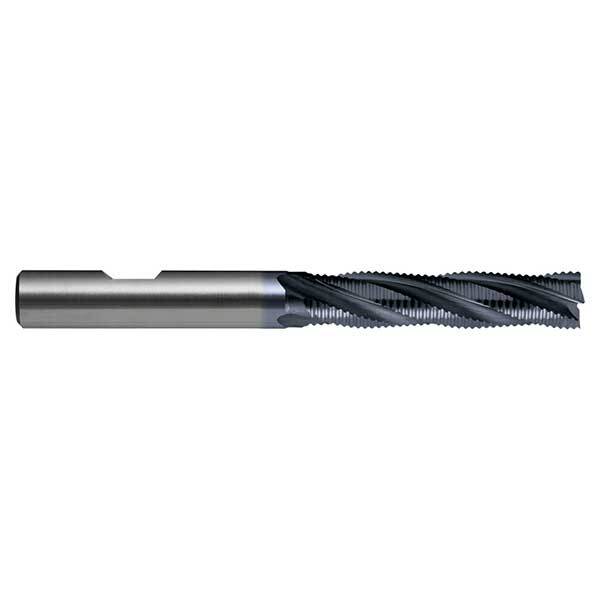

Sutton Tools Rougher - HR (fine) - R30 VA - Regular

Rougher, HR (fine) R30 VA, Long offers superior performance
For roughing applications
HR geometry allows for heavy cuts, in stainless steel
Suitable for materials up to 1400 N/mm2

Specifications +

Specifications

Designation: VA
Material: SPM
Finish: TiCN
Shank Form: B
Helix Angle: R30
Point Tolerance: js14
Shank Tolerance: h6
Point Form:45° Corner Chamfer
Type: HR (fine pitch)
Standard: DIN844L

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C) - 300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 275HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements - 300HB
Optimal for Steel - High alloy, cast & tool - 200HB
Optimal for Steel - Corrosion resistant & cast - Martensitic - 240HB
Optimal for Stainless Steel - Austenitic - 180HB
Optimal for Stainless Steel - Duplex - 250HB

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E252 Rougher - HR (fine) - R30 VA - Regular

SKU: A0131104

Type: Rougher Endmill

$130.31

Inc. GST

Buy It Now

Available

The Sutton E252 Rougher by Sutton Tools is a Rougher Endmill with TiCN finish. It offers materials up to 1400 N/mm2 and is suitable for roughing applications in stainless steel.
