Description
Description
Descriptions
- NF (semi) Rougher R30
- NF geometry allows for heavy cuts, with a good surface finish
Specifications
Specifications
Specifications
- Designation: N
- Material: High Speed Steel Cobalt-8
- Finish: TiAIN
- Shank Form: B
- Helix Angle: R30
- Point Tolerance: js14
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: N (semi roughing)
- Standard: DIN 844L
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Stainless Steel - Austenitic- 180 HB
- Optimal for Stainless Steel - Duplex- 250 HB
- Optimal for Cast Iron, Ferritic/Pearlitic - 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
Features & Benefits
Features & Benefits
Features
- Suitable for materials up to 1100 N/mm2
- TiAlN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

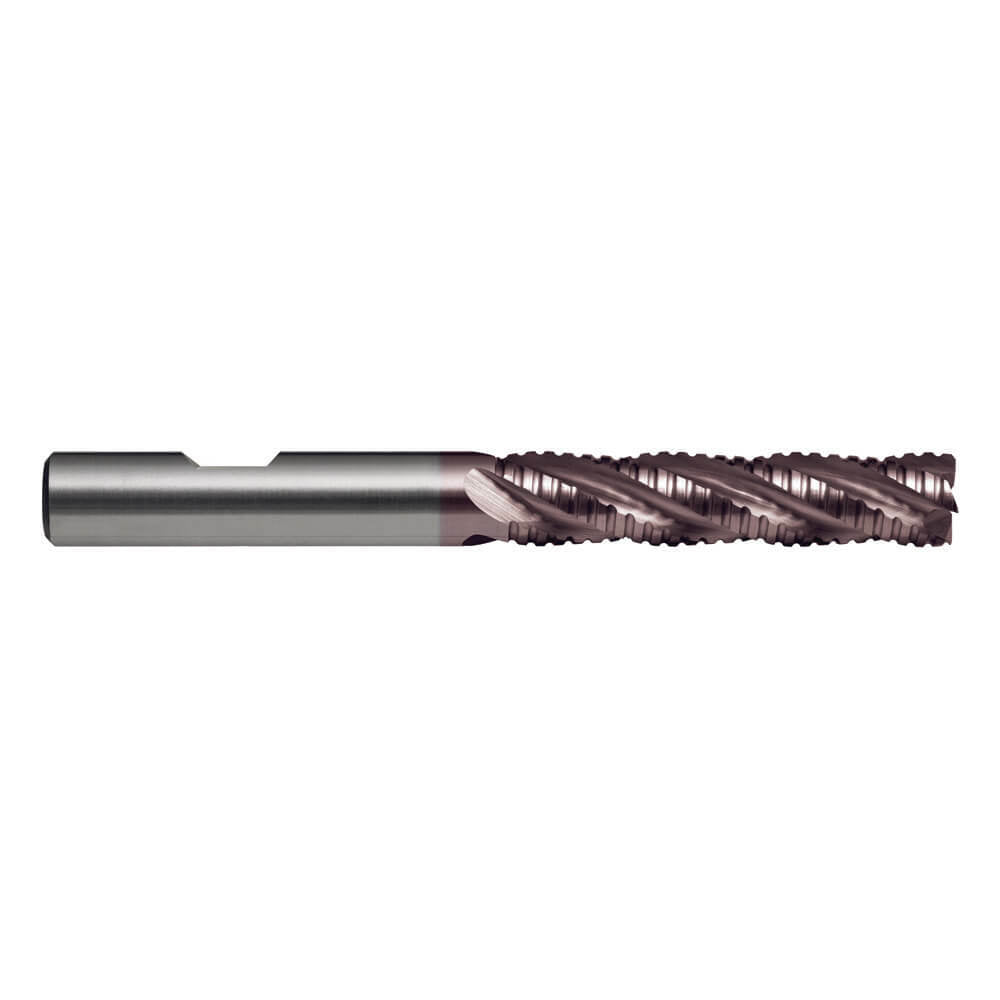

Sutton E206 Metric 4 Flute Roughing Endmill - 8% Cobalt - TiAlN Long
Sutton E206 Metric 4 Flute Roughing Endmill - 8% Cobalt - TiAlN Long
SKU: A0009085
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E206 Endmill is a high-speed tool made of 8% cobalt steel with a TiAlN finish. It can handle heavy cuts with its NF geometry, while ensuring a good surface finish. The tool is suitable for materials up to 1100 N/mm2.
