Description
Description
Descriptions
- For roughing applications
- HR geometry allows for heavy cuts, in harder materials
Specifications
Specifications

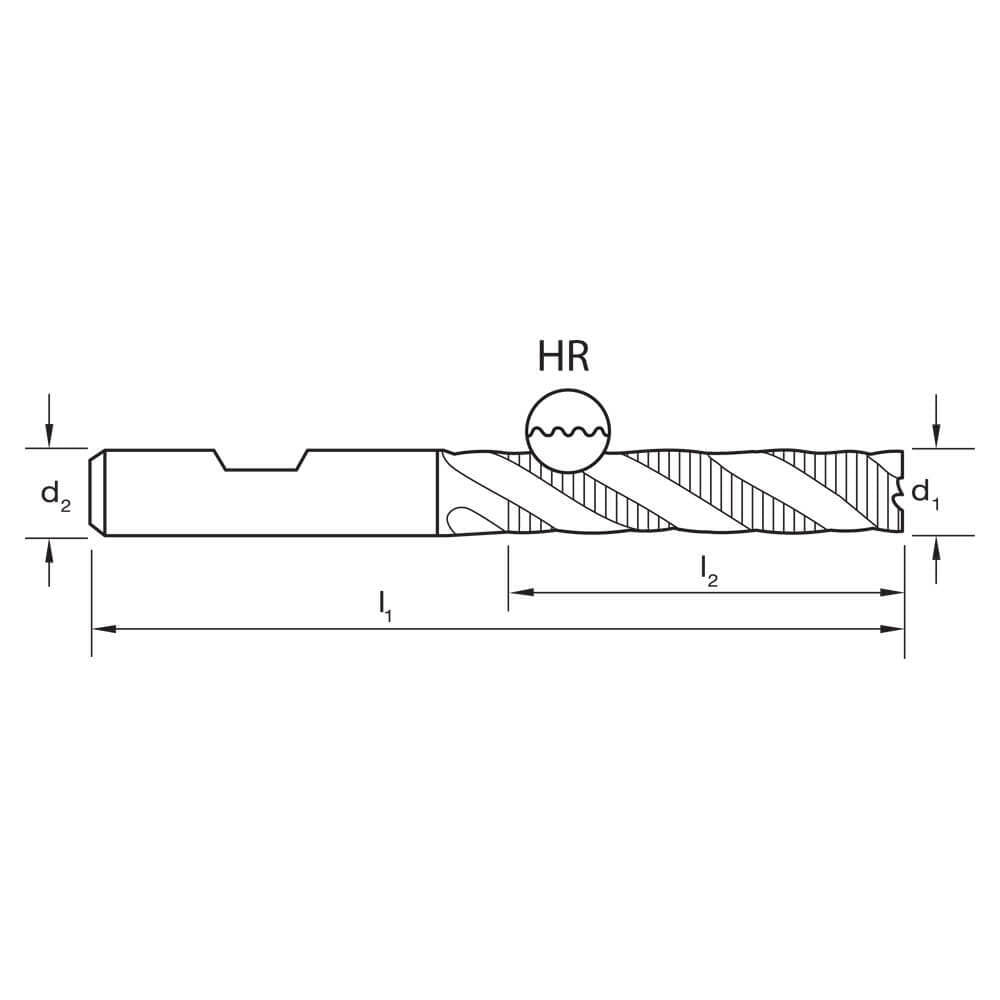

Dimensions
- d1 (mm): 6
- d2 (mm): 6
- l1 (mm): 68
- l2 (mm): 24
- No. of Flutes: 3
- Quantity: 1
Specifications
- Designation: H
- Material: SPM
- Finish: TiAIN
- Shank Form: B
- Helix Angle: R30
- Point Tolerance: js14
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: HR (fine pitch)
- Standard: DIN 844L
Applications
Applications
Applications
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
- Optimal for Steel - High alloy, cast & tool- 325 HB
- Optimal for Steel - Corrosion resistant & cast – Martensitic – 240 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
- Optimal for Cast Iron, Malleable - Ferritic- 130 HB
- Optimal for Cast Iron, Malleable - Pearlitic- 230 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) – 90 HB
- Optimal for Cast Iron – Chilled – 400 HB
Features & Benefits
Features & Benefits
Features
- HR (fine) R30 H Rougher Long offers superior performance
- Suitable for materials up to 1400 N/mm2
- TiAIN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

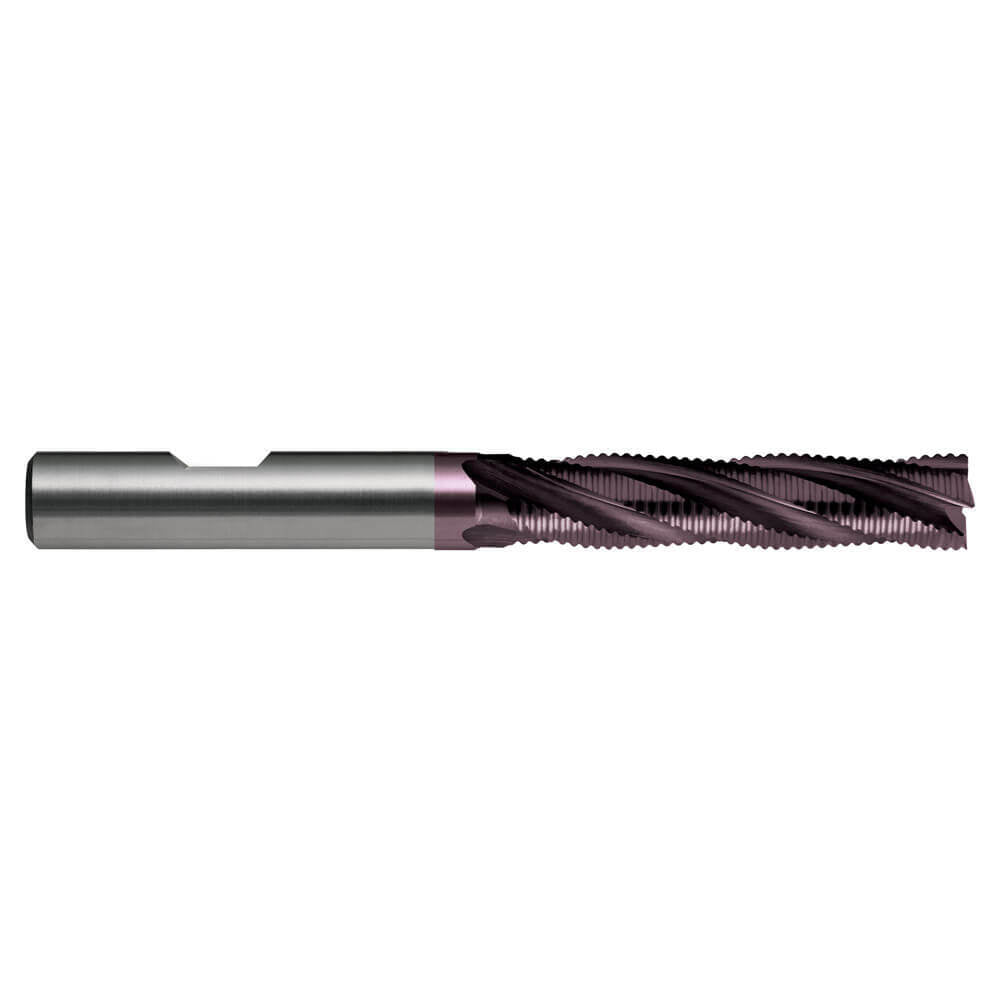

Sutton E177 Metric 3-5 Flute Roughing Endmill - HSS Co11% TiAlN Long
Sutton E177 Metric 3-5 Flute Roughing Endmill - HSS Co11% TiAlN Long
SKU: A0009025
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E177 Metric 3-5 Flute Roughing Endmill is designed for heavy cuts in harder materials. With a TiAlN finish for extended tool life, it's suitable for materials up to 1400 N/mm2. Its dimensions include a length of 95mm and a diameter of 10mm.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Descriptions
- For roughing applications
- HR geometry allows for heavy cuts, in harder materials
Specifications
Specifications
Dimensions
- d1 (mm): 6
- d2 (mm): 6
- l1 (mm): 68
- l2 (mm): 24
- No. of Flutes: 3
- Quantity: 1
Specifications
- Designation: H
- Material: SPM
- Finish: TiAIN
- Shank Form: B
- Helix Angle: R30
- Point Tolerance: js14
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: HR (fine pitch)
- Standard: DIN 844L
Applications
Applications
Applications
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
- Optimal for Steel - High alloy, cast & tool- 325 HB
- Optimal for Steel - Corrosion resistant & cast – Martensitic – 240 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
- Optimal for Cast Iron, Malleable - Ferritic- 130 HB
- Optimal for Cast Iron, Malleable - Pearlitic- 230 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) – 90 HB
- Optimal for Cast Iron – Chilled – 400 HB
Features & Benefits
Features & Benefits
Features
- HR (fine) R30 H Rougher Long offers superior performance
- Suitable for materials up to 1400 N/mm2
- TiAIN for longer tool life
