Sutton E314 1/8" Ball Nose Slot Drill 2 Flute - Carbide VHM - TiAlN - Regular
Available

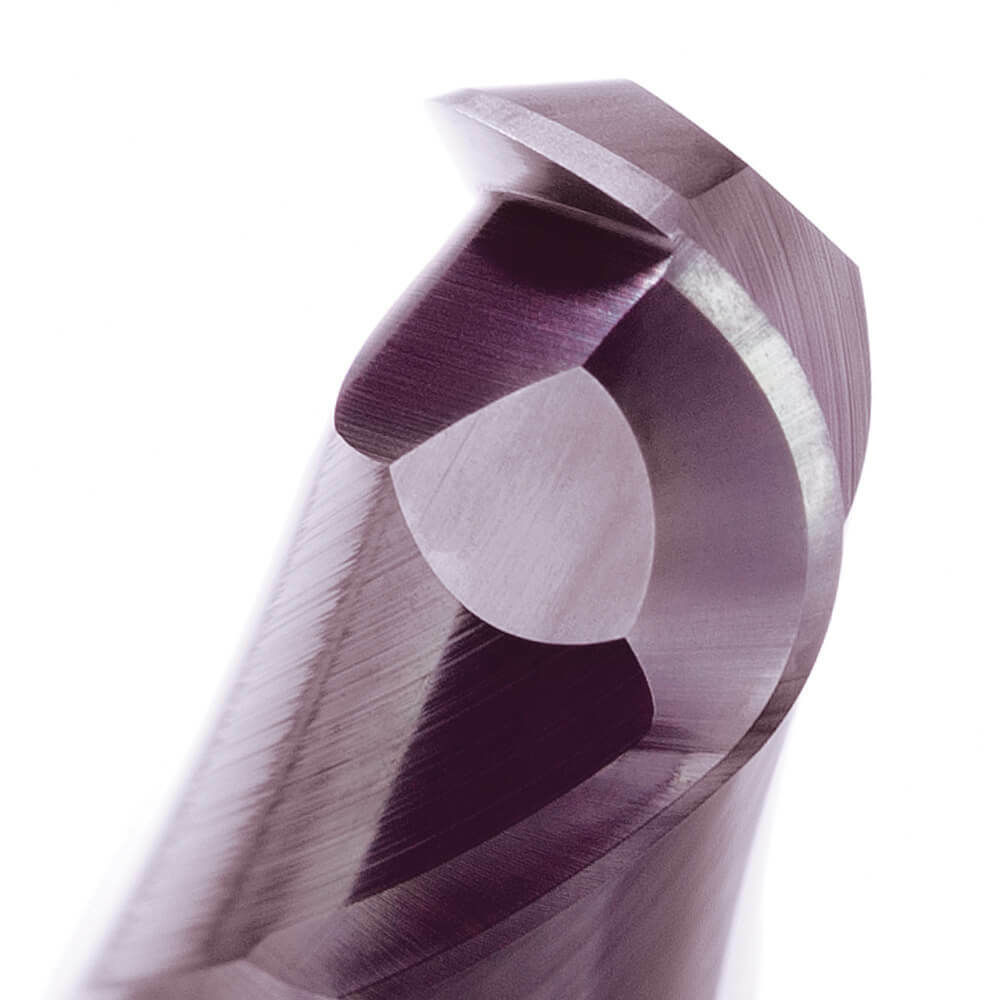

The Sutton E314 is a 2 flute ball nose slot drill made from solid carbide (VHM), with a TiAlN coating. It is in the regular length series. This listing covers 2 fractional-inch sizes from 1/8 in to 1/4 in.
The cutting edge has a 30° helix and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance.
Where this product is used
- Profile and contour milling.
- Materials up to 1600 N/mm2.
Design features
- Solid carbide (VHM) construction.
- TiAlN coating for longer tool life.
- 2 flutes, 30° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: shank h6.
Sizes
Diameters and lengths are in inches. Item numbers are the Sutton catalogue numbers.

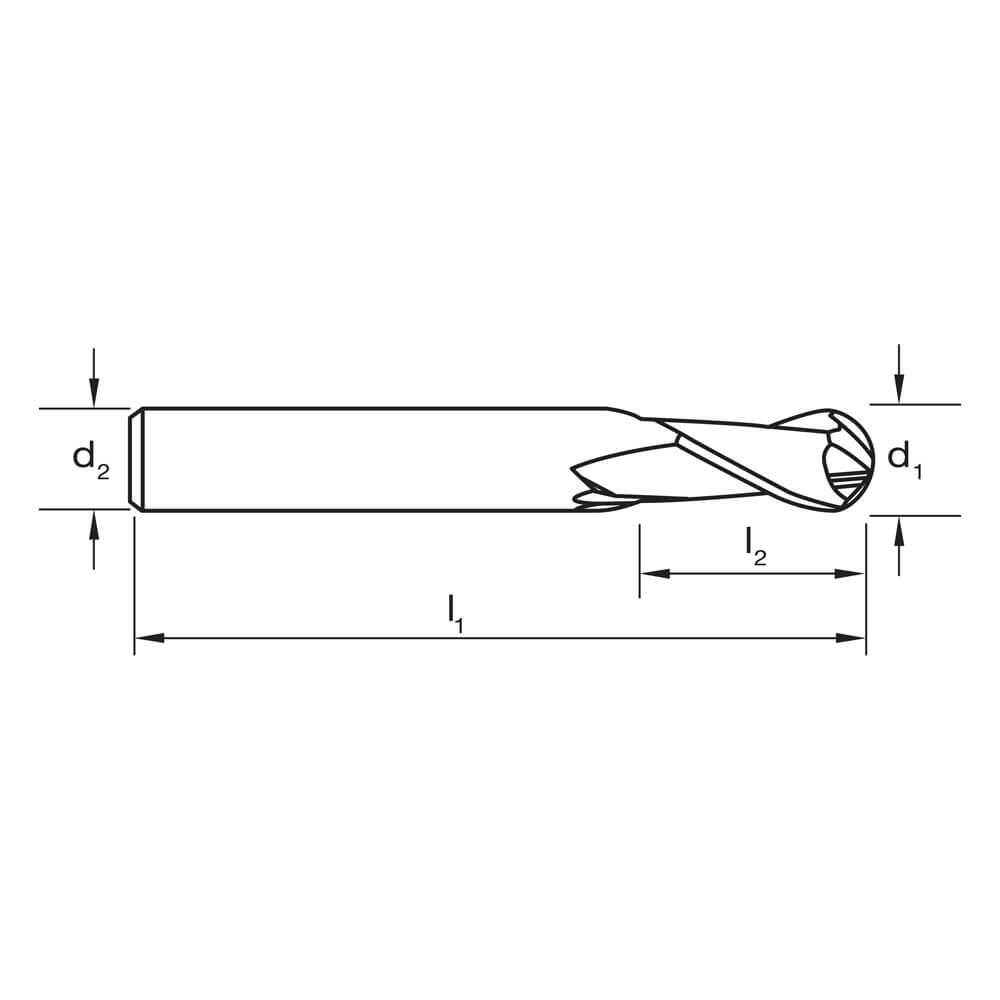

| Item no. | d1 (in) | d1 (mm) | l1 overall (in) | l2 flute (in) | d2 shank (in) | Flutes |
|---|---|---|---|---|---|---|
| E314 0318 | 1/8 | 3.18 | 1 1/2 | 1/2 | 1/8 | 2 |
| E314 0635 | 1/4 | 6.35 | 2 1/2 | 3/4 | 1/4 | 2 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E314 |
| Type | Ball Nose Slot Drill, 2 flute, regular length |
| Material | solid carbide (VHM) |
| Finish | TiAlN |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Shank tolerance | h6 |
| Sizes in this listing | 2 sizes, 1/8 to 1/4 in |
Related products
Related Sutton carbide slot drills: E311 3/4 in ball nose slot drill (regular), plain shank, E440 metric ball nose slot drill (long reach), AlCrN, plain shank, E441 metric ball nose slot drill (long reach), AlCrN, Weldon flat shank, E307 imperial slot drill (regular), TiAlN, plain shank, E304 imperial slot drill (regular), plain shank.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

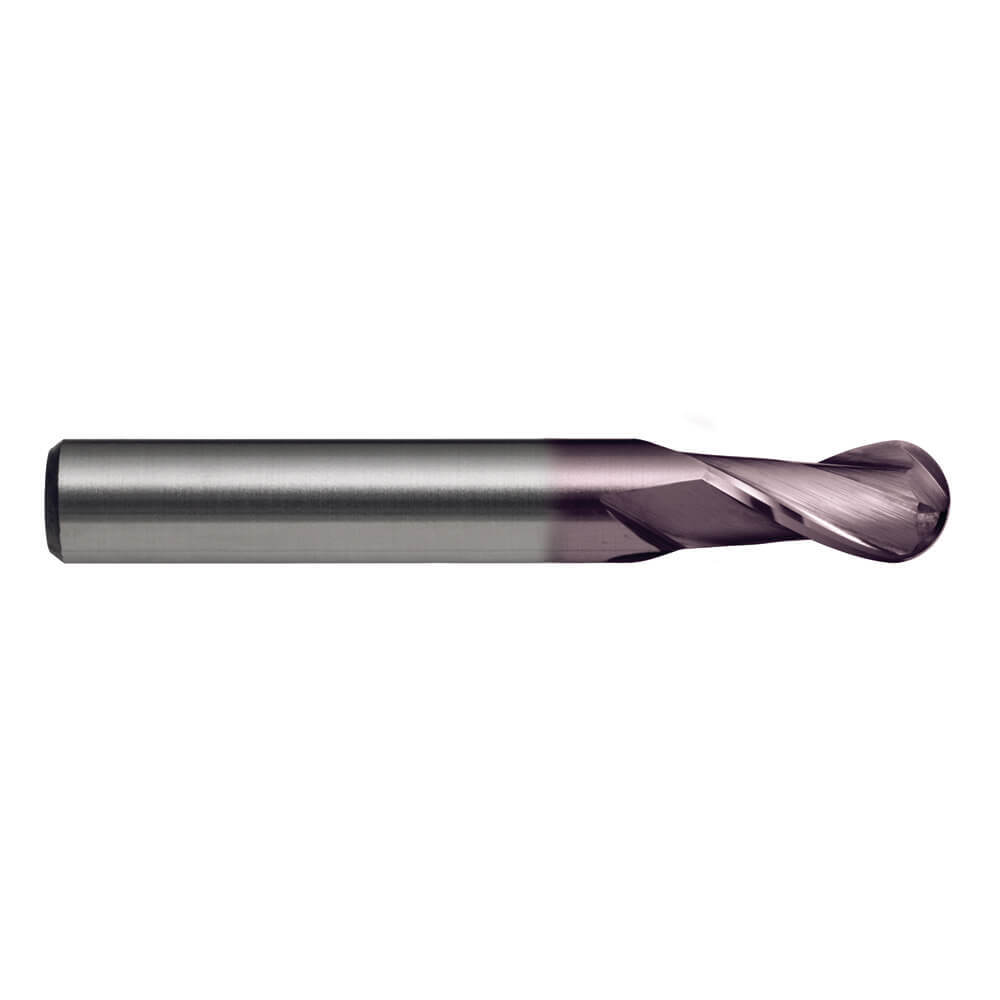

Sutton E314 Imperial 2 Flute Ball Nose Slot Drill - Carbide VHM - TiAlN - Regular - HA: 1 1/2 / 1/8
