Sutton E304 Imperial 2 Flute Slot Drill - Solid Carbide VHM - Regular1

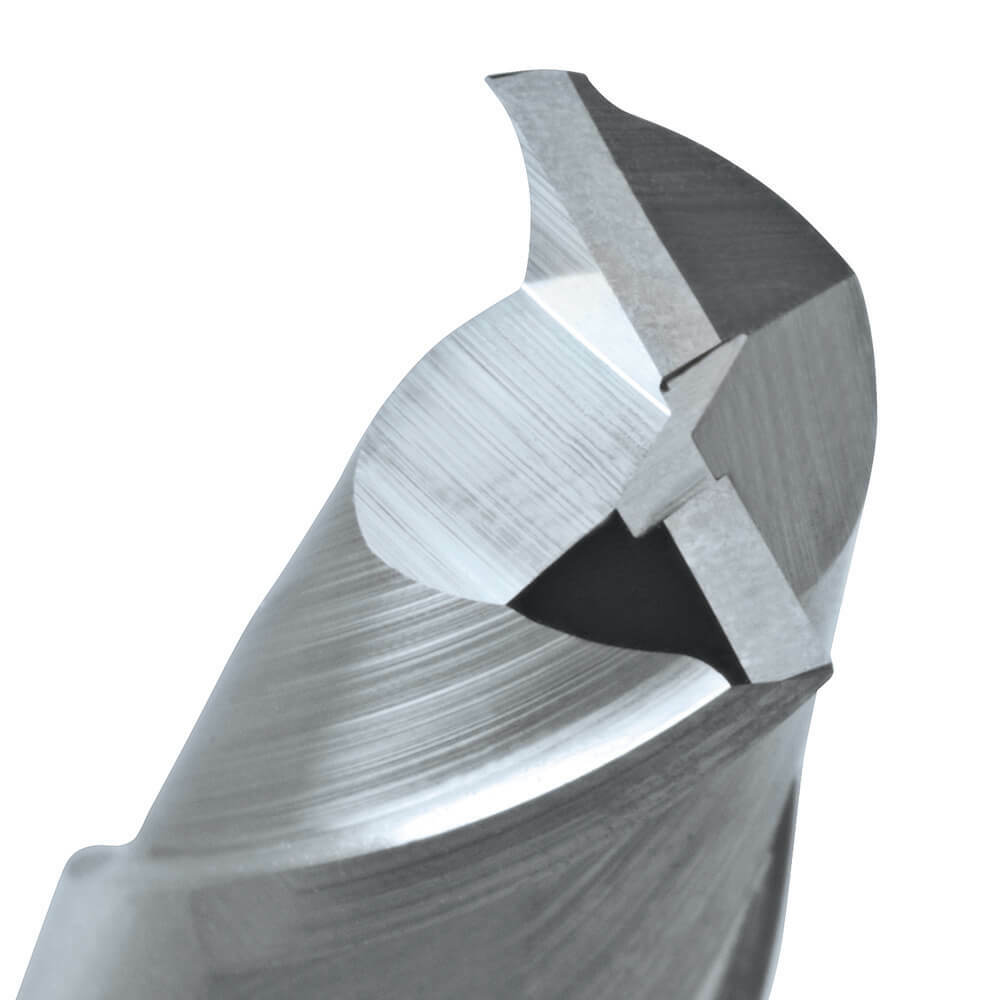

Sutton E304 Imperial 2 Flute Slot Drill - Solid Carbide VHM - Regular2

Sutton E3040635 1/4" x 1/4" 2 Flute Slot Drill - Carbide VHM - Regular

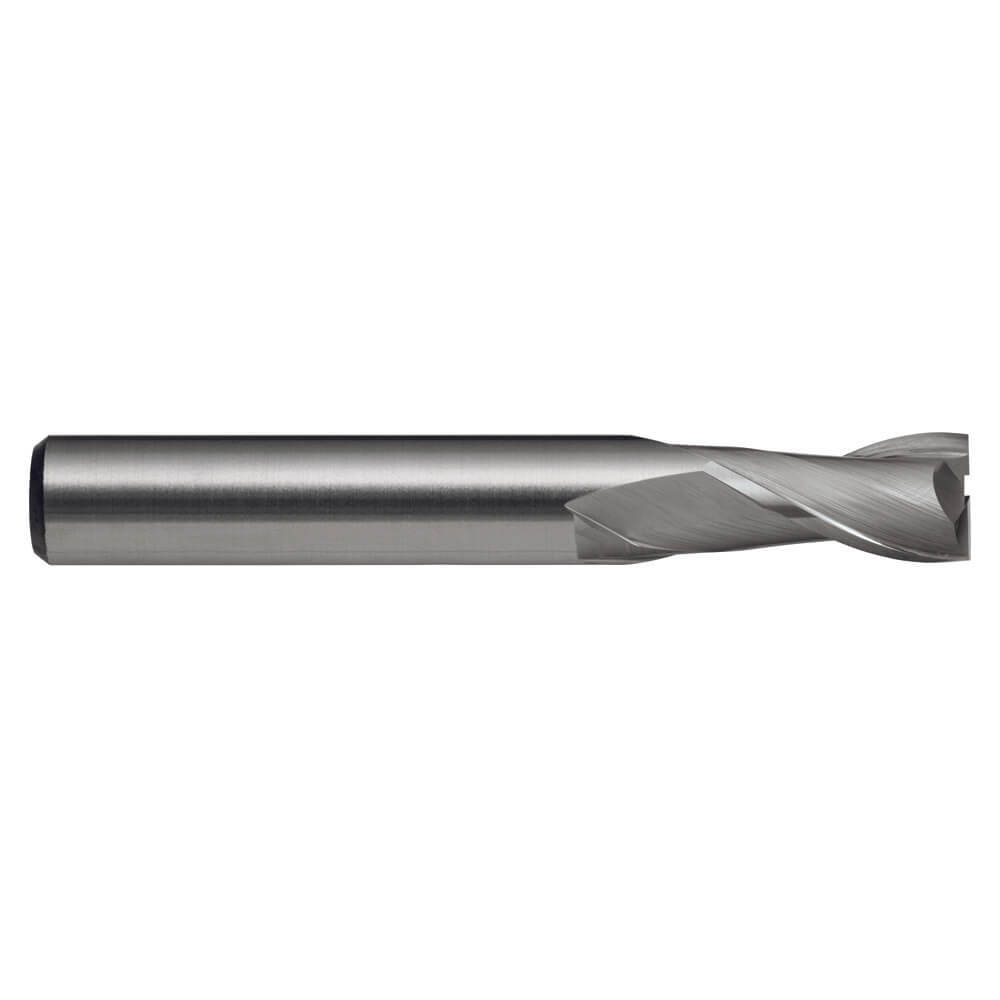

Sutton E3040953 3/8" x 3/8" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3040159 1/16" x 1/8" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3040238 3/32" x 1/8" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3040318 1/8" x 1/8" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3040397 5/32" x 3/16" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3040476 3/16" x 3/16" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3040556 7/32" x 1/4" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3040794 5/16" x 5/16" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3041111 7/16" x 7/16" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3041270 1/2" x 1/2" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3041588 5/8" x 5/8" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3041905 3/4" x 3/4" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3042223 7/8" x 7/8" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton E3042540 1" x 1" 2 Flute Slot Drill - Solid Carbide VHM - Regular

Description +

Description

For precision finish milling of slots & cavities

Specifications +

Specifications

Designation: N
Material: VHM
Finish: Bright
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 12
Standard: DIN6527L

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Features & Benefits +

Features

Slot Drill, Regular, 2 Flute, R30
Suitable for materials up to 1600 N/mm2

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E304 Imperial 2 Flute Slot Drill - Solid Carbide VHM - Regular

SKU: A0009116

$34.03

Inc. GST

Buy It Now

Available

The Sutton E304 Imperial 2 Flute Slot Drill is a precision tool for milling slots and cavities. It has dimensions of d1: 1/16in, d2: 1/8in, l1: 1-1/2in, and l2: 3/16in, and can handle materials up to 1600 N/mm2. Its bright finish and square end point form enhance its functionality.
