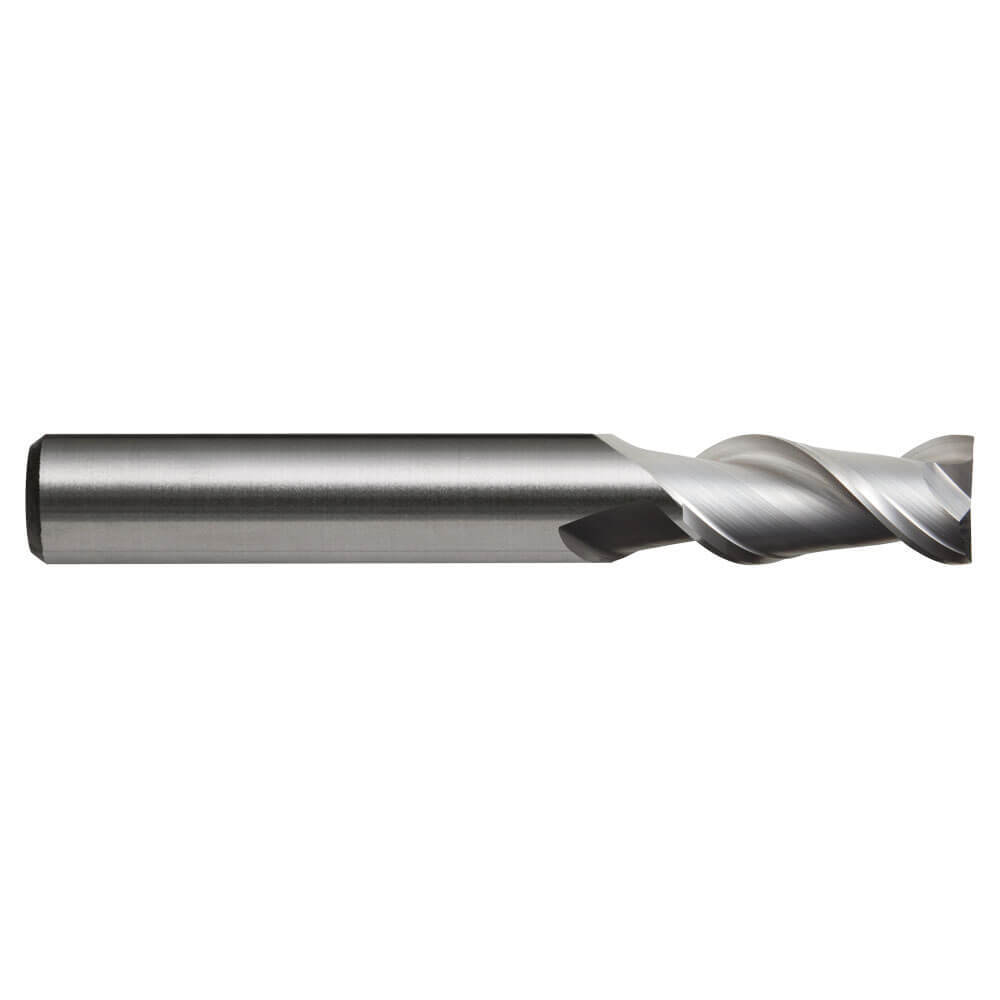

Sutton E310 2mm Slot Drill 2 Flute - Carbide VHM - Regular
Available
The Sutton E310 is a 2 flute slot drill made from solid carbide (VHM), with a bright finish. It is in the regular length series. This listing covers 5 metric sizes from 2 mm to 10 mm.

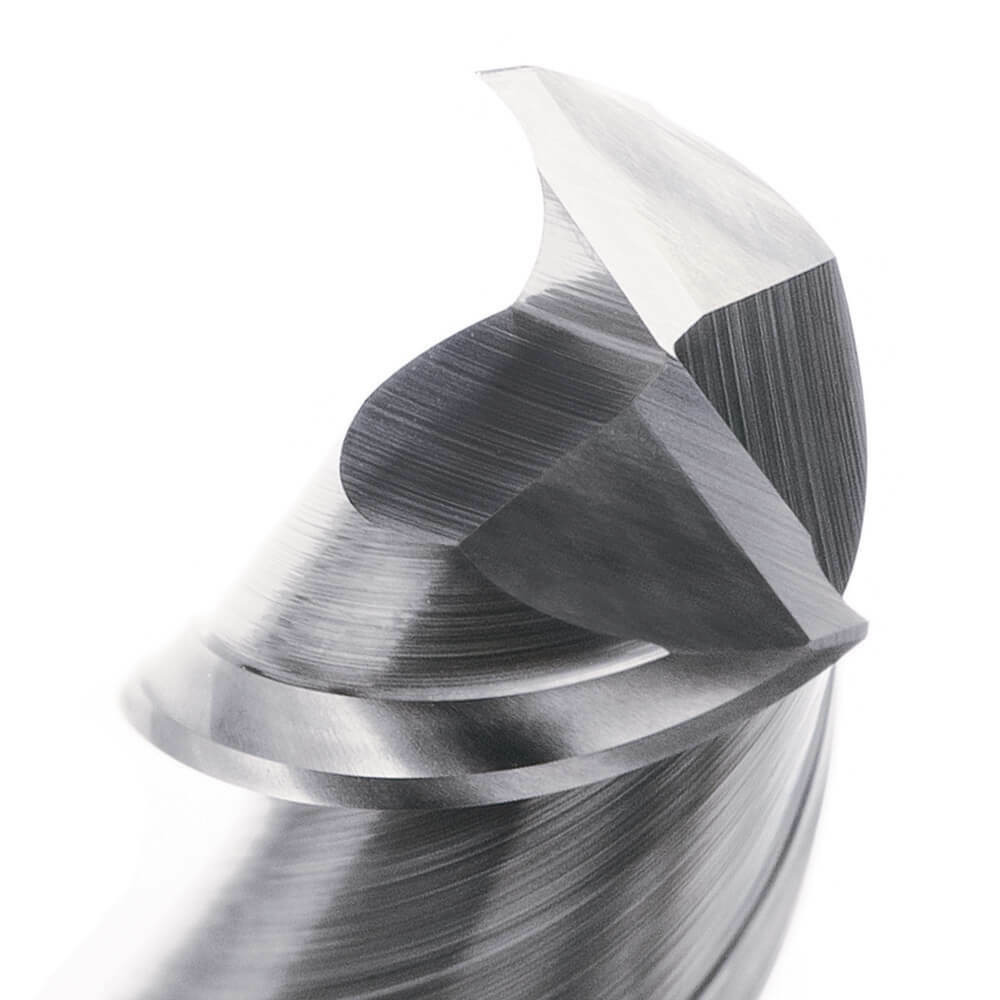

The cutting edge has a 40° helix and the designation is Al. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and h10 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Soft and non-ferrous materials, where the Al geometry is optimised for them.
- Plunging straight into the workpiece before slotting, because a slot drill cuts on its end face.
Design features
- Solid carbide (VHM) construction.
- Bright finish.
- 2 flutes, 40° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

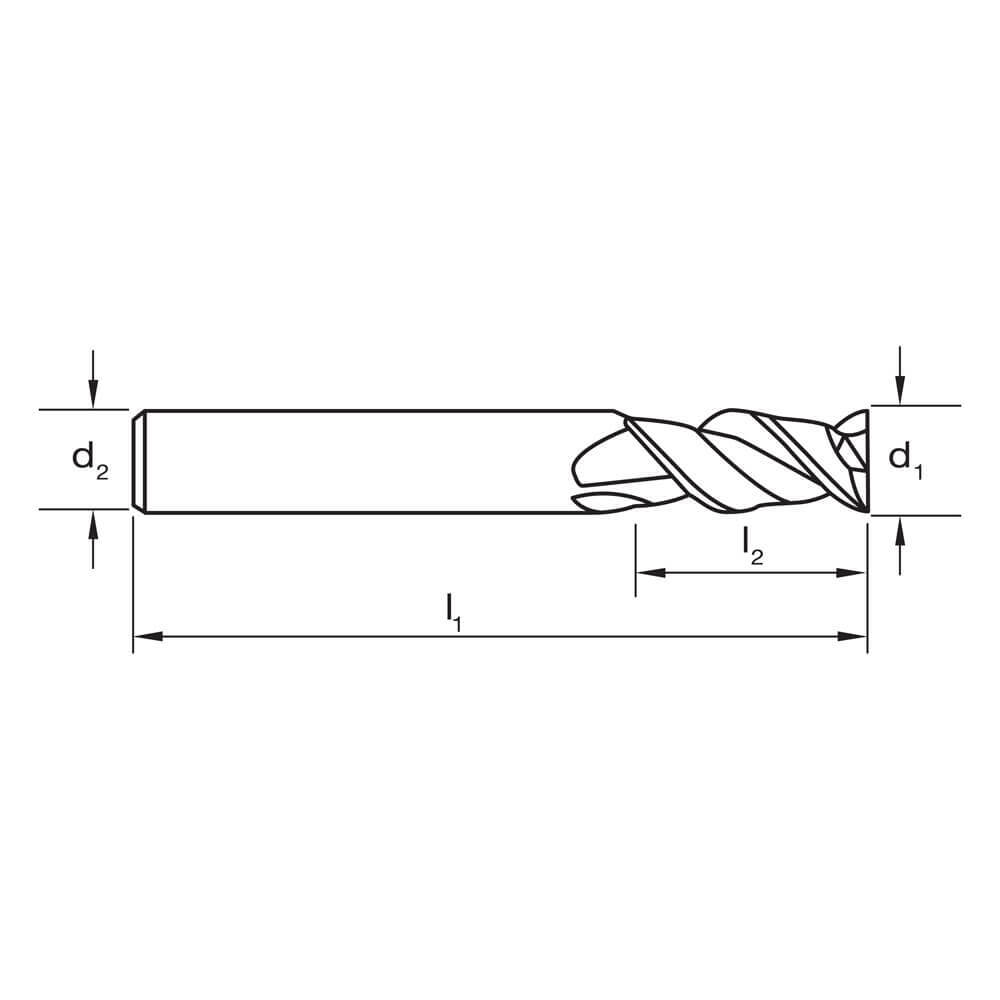

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|---|
| E310 0200 | 2 | 57 | 7 | 10 | 6 | 2 |
| E310 0300 | 3 | 57 | 8 | 10 | 6 | 2 |
| E310 0600 | 6 | 57 | 13 | - | 6 | 2 |
| E310 0800 | 8 | 63 | 19 | - | 8 | 2 |
| E310 1000 | 10 | 72 | 22 | - | 10 | 2 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E310 |
| Type | Slot Drill, 2 flute, regular length |
| Material | solid carbide (VHM) |
| Finish | Bright |
| Helix / geometry | R40 |
| Designation | Al |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 5 sizes, 2 to 10 mm |
Related products
Related Sutton carbide slot drills: E307 imperial slot drill (regular), TiAlN, plain shank, E304 imperial slot drill (regular), plain shank, E311 3/4 in ball nose slot drill (regular), plain shank, E314 imperial ball nose slot drill (regular), TiAlN, plain shank, E440 metric ball nose slot drill (long reach), AlCrN, plain shank.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton E310 Metric 2 Flute Slot Drill - Carbide VHM - Regular - HA: 2
SKU: A0009168 | Model: E3100200
This is the 2mm diameter option of the Sutton E310 Metric 2 Flute Slot Drill - Carbide VHM - Regular - HA. Key details for this option: overall length 57mm, reach length 10mm.
