Sutton E430 4mm Corner Radius Endmill 4 Flute R0.3 - VHM Ultra - AlCrN - Long Reach
Available

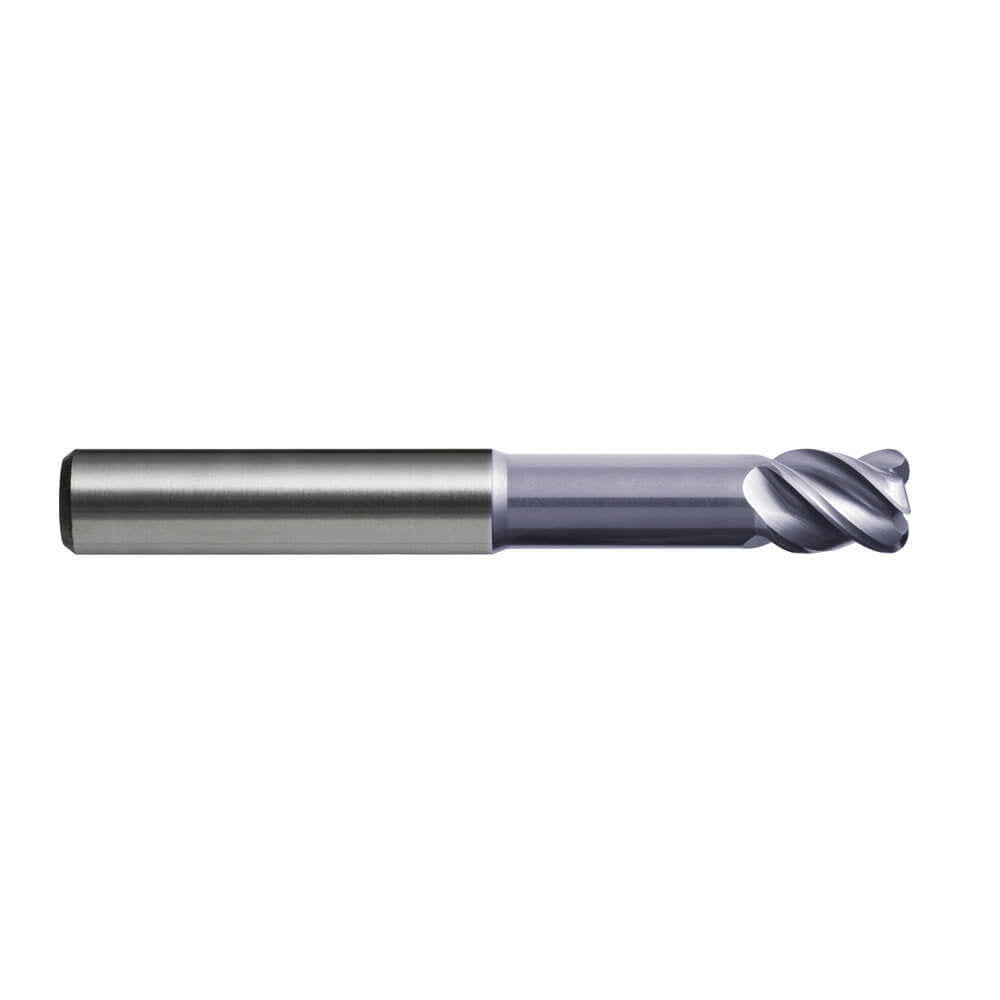

The Sutton E430 is a 4 flute corner radius endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the long reach series. This listing covers 22 metric sizes from 4 mm to 16 mm. Corner radii in this listing: 0.3, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0 mm.
The cutting edge has a 45/44° variable helix and the designation is UNI. The shank is a plain cylindrical shank (DIN 6535 form HA), with h5 shank tolerance and e8 cutting diameter tolerance. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Universal use for slotting and finishing with one tool.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.

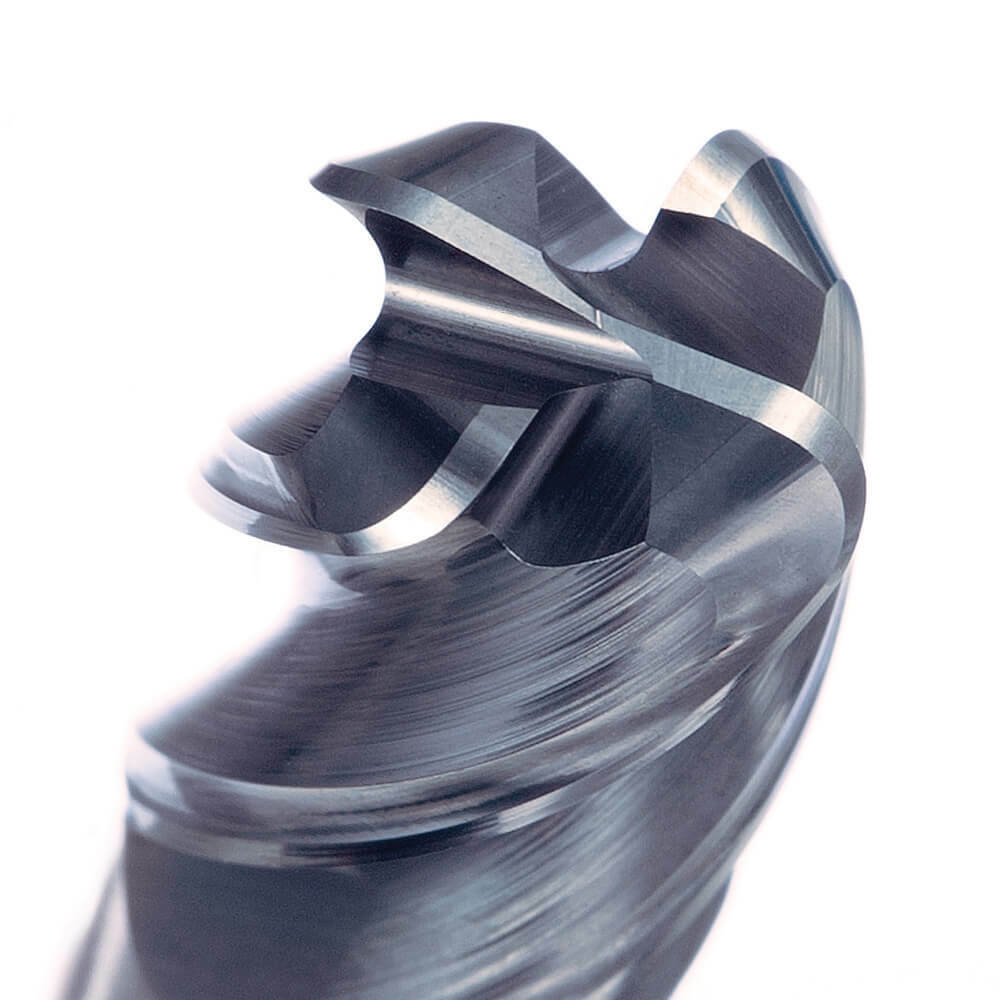

- 4 flutes, 45/44° variable helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) e8, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

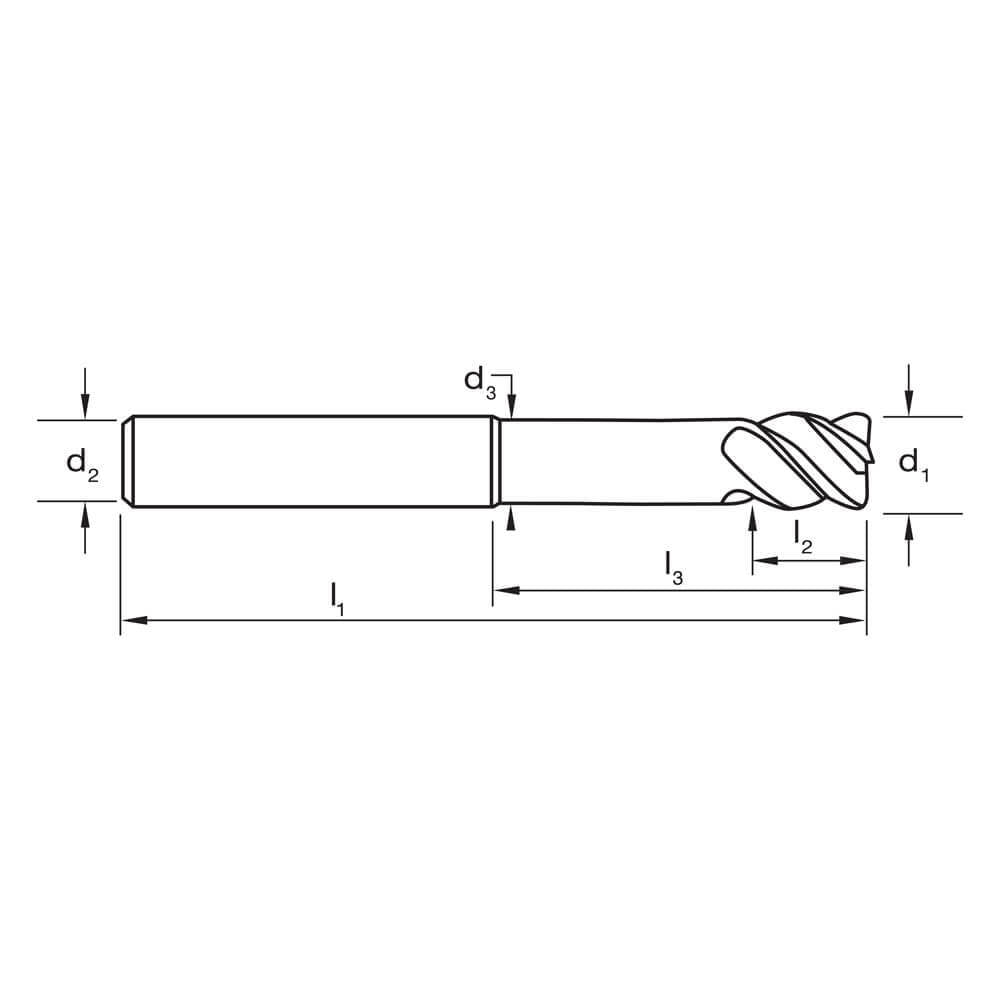

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|---|---|
| E430 0403 | 4 | 57 | 5 | 16 | 6 | 3.6 | 4 | 0.3 |
| E430 0405 | 4 | 57 | 5 | 16 | 6 | 3.6 | 4 | 0.5 |
| E430 0603 | 6 | 62 | 7 | 24 | 6 | 5.4 | 4 | 0.3 |
| E430 0605 | 6 | 62 | 7 | 24 | 6 | 5.4 | 4 | 0.5 |
| E430 0610 | 6 | 62 | 7 | 24 | 6 | 5.4 | 4 | 1.0 |
| E430 0615 | 6 | 62 | 7 | 24 | 6 | 5.4 | 4 | 1.5 |
| E430 0803 | 8 | 68 | 9 | 30 | 8 | 7.2 | 4 | 0.3 |
| E430 0805 | 8 | 68 | 9 | 30 | 8 | 7.2 | 4 | 0.5 |
| E430 0810 | 8 | 68 | 9 | 30 | 8 | 7.2 | 4 | 1.0 |
| E430 0815 | 8 | 68 | 9 | 30 | 8 | 7.2 | 4 | 1.5 |
| E430 1005 | 10 | 80 | 11 | 38 | 10 | 9 | 4 | 0.5 |
| E430 1010 | 10 | 80 | 11 | 38 | 10 | 9 | 4 | 1.0 |
| E430 1015 | 10 | 80 | 11 | 38 | 10 | 9 | 4 | 1.5 |
| E430 1020 | 10 | 80 | 11 | 38 | 10 | 9 | 4 | 2.0 |
| E430 1205 | 12 | 93 | 13 | 46 | 12 | 11 | 4 | 0.5 |
| E430 1210 | 12 | 93 | 13 | 46 | 12 | 11 | 4 | 1.0 |
| E430 1215 | 12 | 93 | 13 | 46 | 12 | 11 | 4 | 1.5 |
| E430 1220 | 12 | 93 | 13 | 46 | 12 | 11 | 4 | 2.0 |
| E430 1610 | 16 | 108 | 17 | 58 | 16 | 15 | 4 | 1.0 |
| E430 1620 | 16 | 108 | 17 | 58 | 16 | 15 | 4 | 2.0 |
| E430 1630 | 16 | 108 | 17 | 58 | 16 | 15 | 4 | 3.0 |
| E430 1640 | 16 | 108 | 17 | 58 | 16 | 15 | 4 | 4.0 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E430 |
| Type | Corner Radius Endmill, 4 flute, long reach |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R45/44 |
| Designation | UNI |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h5 |
| Sizes in this listing | 22 sizes, 4 to 16 mm |
