Sutton E436 6mm Corner Radius Endmill 6 Flute R0.5 - VHM Ultra - AlCrN - Long Reach
Available

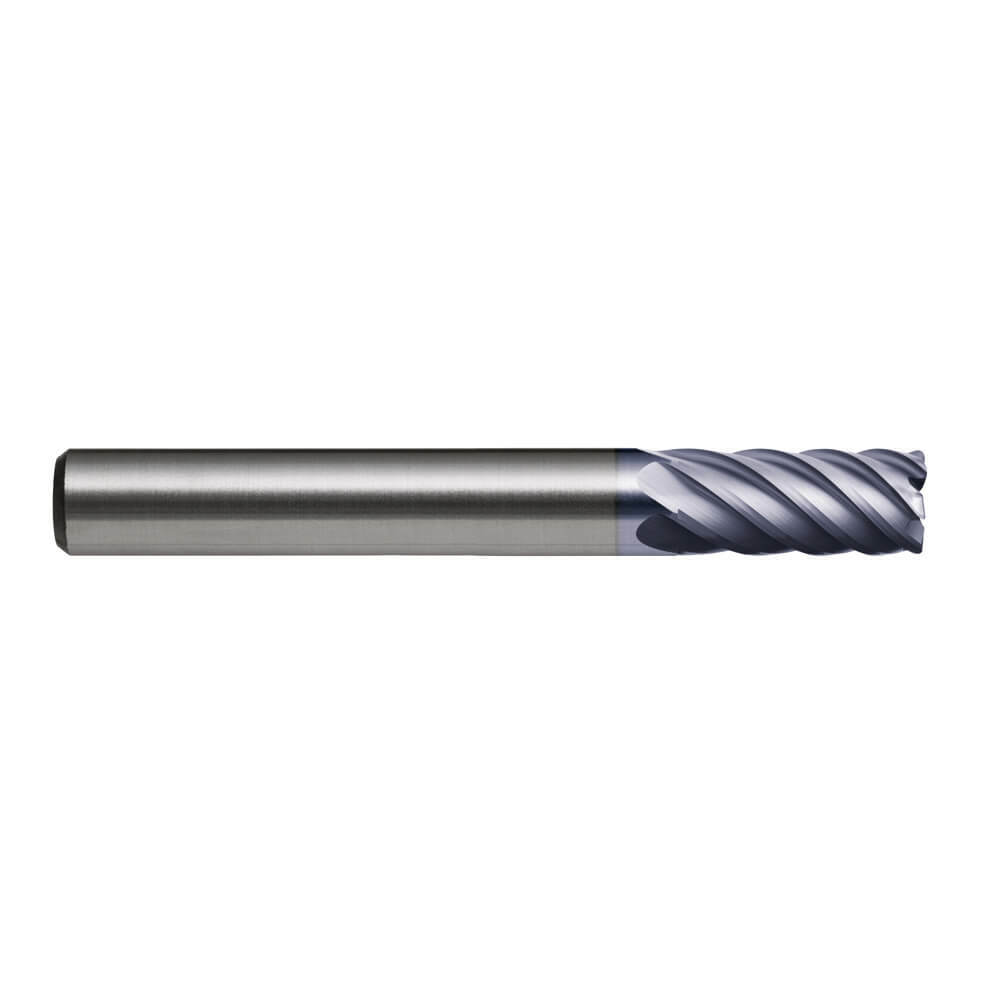

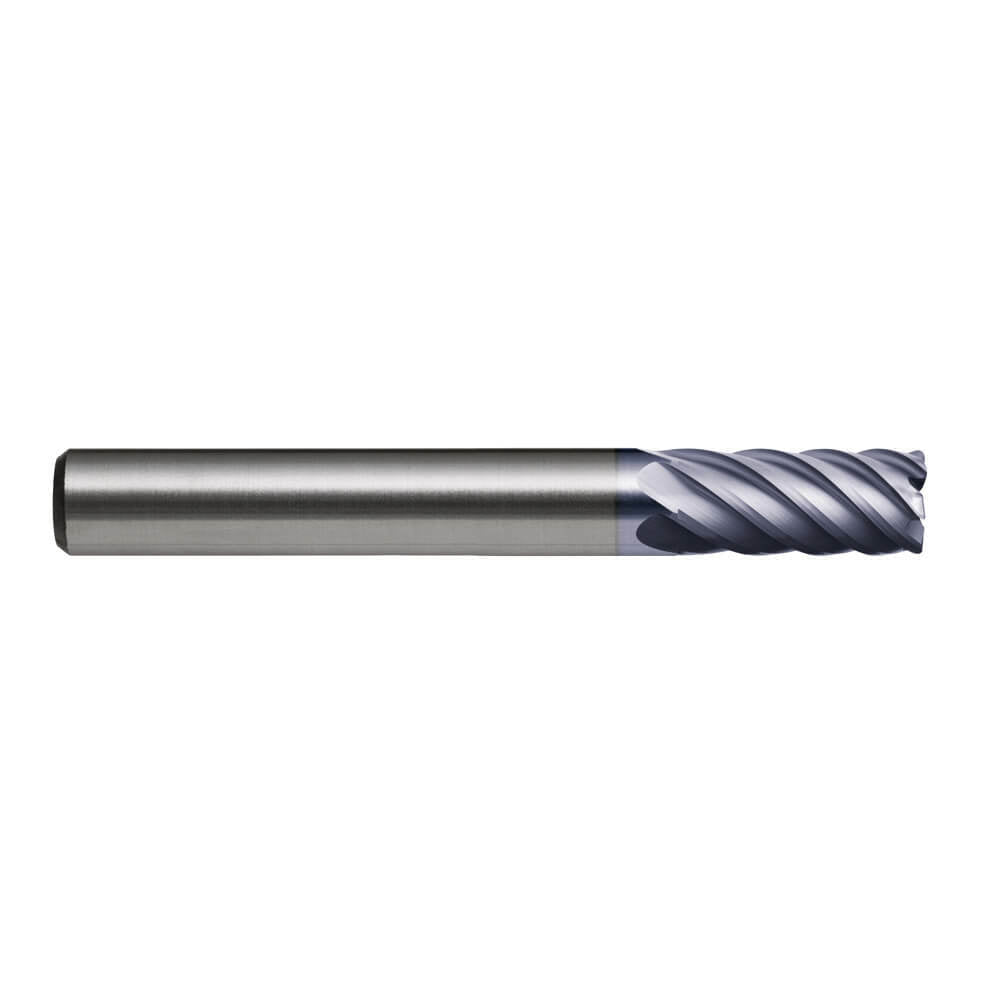

The Sutton E436 is a corner radius endmill with 6 to 8 flutes, depending on size, made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the long reach series. This listing covers 20 metric sizes from 6 mm to 20 mm. Corner radii in this listing: 0.5, 1.0, 1.5, 2.0 mm.
The cutting edge has a 50/35° variable helix and the designation is NH. The shank is a plain cylindrical shank (DIN 6535 form HA), with h5 shank tolerance and e8 cutting diameter tolerance.
Where this product is used
- Super fine finishing.
- Hard, short chipping materials up to 48 HRC.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 6 to 8 flutes, 50/35° variable helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) e8, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

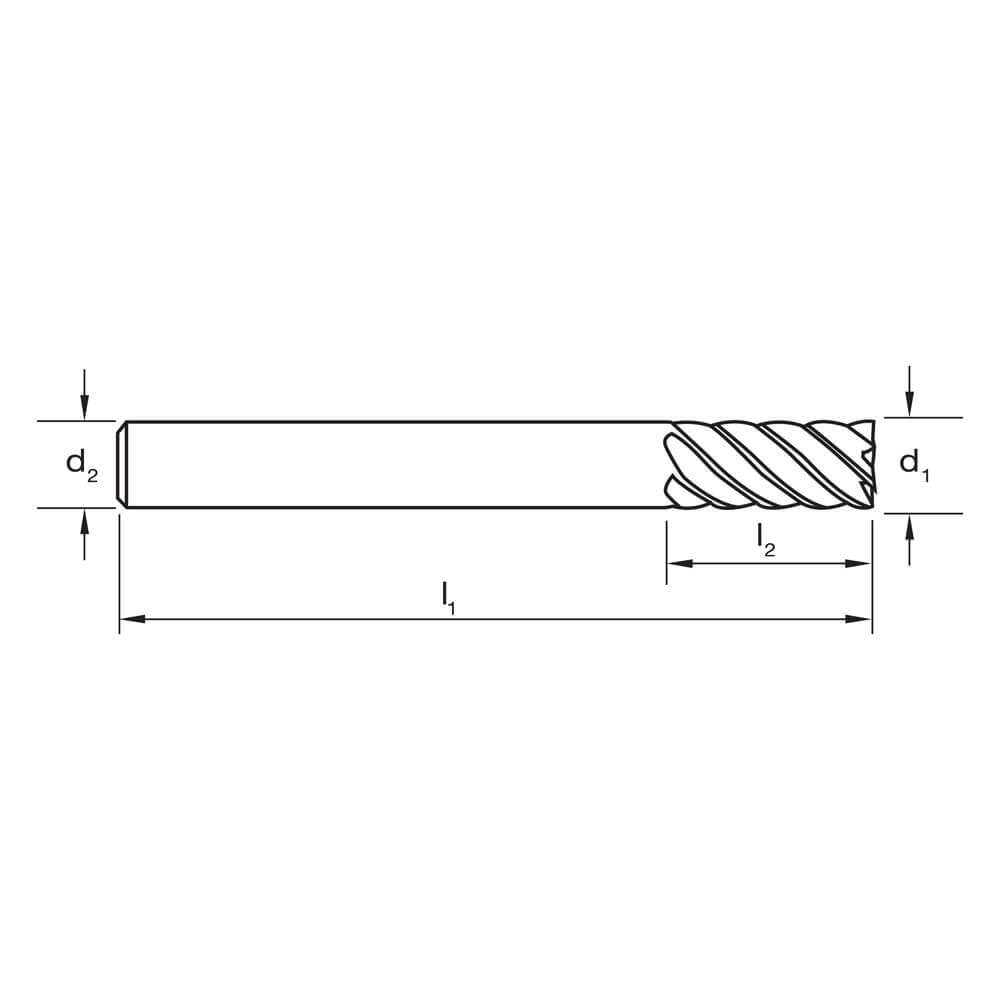

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|
| E436 0605 | 6 | 62 | 13 | 6 | 6 | 0.5 |
| E436 0610 | 6 | 62 | 13 | 6 | 6 | 1.0 |
| E436 0805 | 8 | 68 | 19 | 8 | 6 | 0.5 |
| E436 0810 | 8 | 68 | 19 | 8 | 6 | 1.0 |
| E436 1005 | 10 | 80 | 22 | 10 | 6 | 0.5 |
| E436 1010 | 10 | 80 | 22 | 10 | 6 | 1.0 |
| E436 1015 | 10 | 80 | 22 | 10 | 6 | 1.5 |
| E436 1020 | 10 | 80 | 22 | 10 | 6 | 2.0 |
| E436 1205 | 12 | 93 | 26 | 12 | 6 | 0.5 |
| E436 1210 | 12 | 93 | 26 | 12 | 6 | 1.0 |
| E436 1215 | 12 | 93 | 26 | 12 | 6 | 1.5 |
| E436 1220 | 12 | 93 | 26 | 12 | 6 | 2.0 |
| E436 1605 | 16 | 108 | 32 | 16 | 6 | 0.5 |
| E436 1610 | 16 | 108 | 32 | 16 | 6 | 1.0 |
| E436 1615 | 16 | 108 | 32 | 16 | 6 | 1.5 |
| E436 1620 | 16 | 108 | 32 | 16 | 6 | 2.0 |
| E436 2005 | 20 | 126 | 38 | 20 | 8 | 0.5 |
| E436 2010 | 20 | 126 | 38 | 20 | 8 | 1.0 |
| E436 2015 | 20 | 126 | 38 | 20 | 8 | 1.5 |
| E436 2020 | 20 | 126 | 38 | 20 | 8 | 2.0 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E436 |
| Type | Corner Radius Endmill, 6-8 flute, long reach |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R50/35 |
| Designation | NH |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h5 |
| Sizes in this listing | 20 sizes, 6 to 20 mm |
Related products
Related Sutton carbide endmills: E437 metric corner radius endmill (long reach), AlCrN, Weldon flat shank, E431 metric corner radius endmill (long reach), AlCrN, Weldon flat shank, E430 metric corner radius endmill (long reach), AlCrN, plain shank, E462 metric corner radius endmill (regular), Helica, plain shank, E463 metric corner radius endmill (regular), Helica, Weldon flat shank.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton E436 Metric 6-8 Flute Corner Radius Endmill - Carbide VHM Ultra - AlCrN - Long Reach - HA: 62
SKU: A0009551 | Model: E4360605
This is the 62mm overall length option of the Sutton E436 Metric 6-8 Flute Corner Radius Endmill - Carbide VHM Ultra - AlCrN - Long Reach - HA. Key details for this option: overall length 62mm, flute length 13mm.
