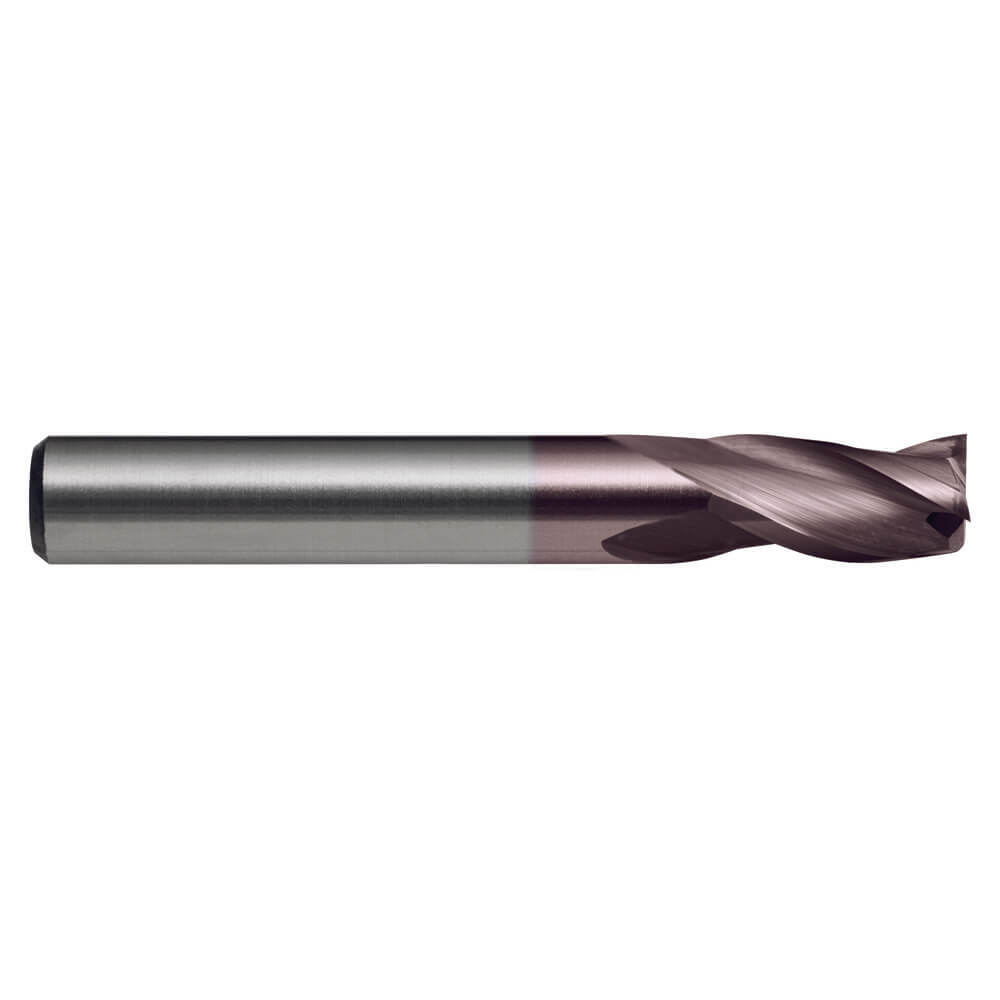

Sutton E515 3mm Endmill 3 Flute - Carbide VHM - TiAlN - Regular
Available
The Sutton E515 is a 3 flute endmill made from solid carbide (VHM), with a TiAlN coating. It is in the regular length series. This listing covers 13 metric sizes from 3 mm to 20 mm.
The cutting edge has a 30° helix and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and h10 cutting diameter tolerance. The cutting length is to DIN 6527 L.
Where this product is used
- Slotting and finishing with one tool.
- Materials up to 1600 N/mm2.

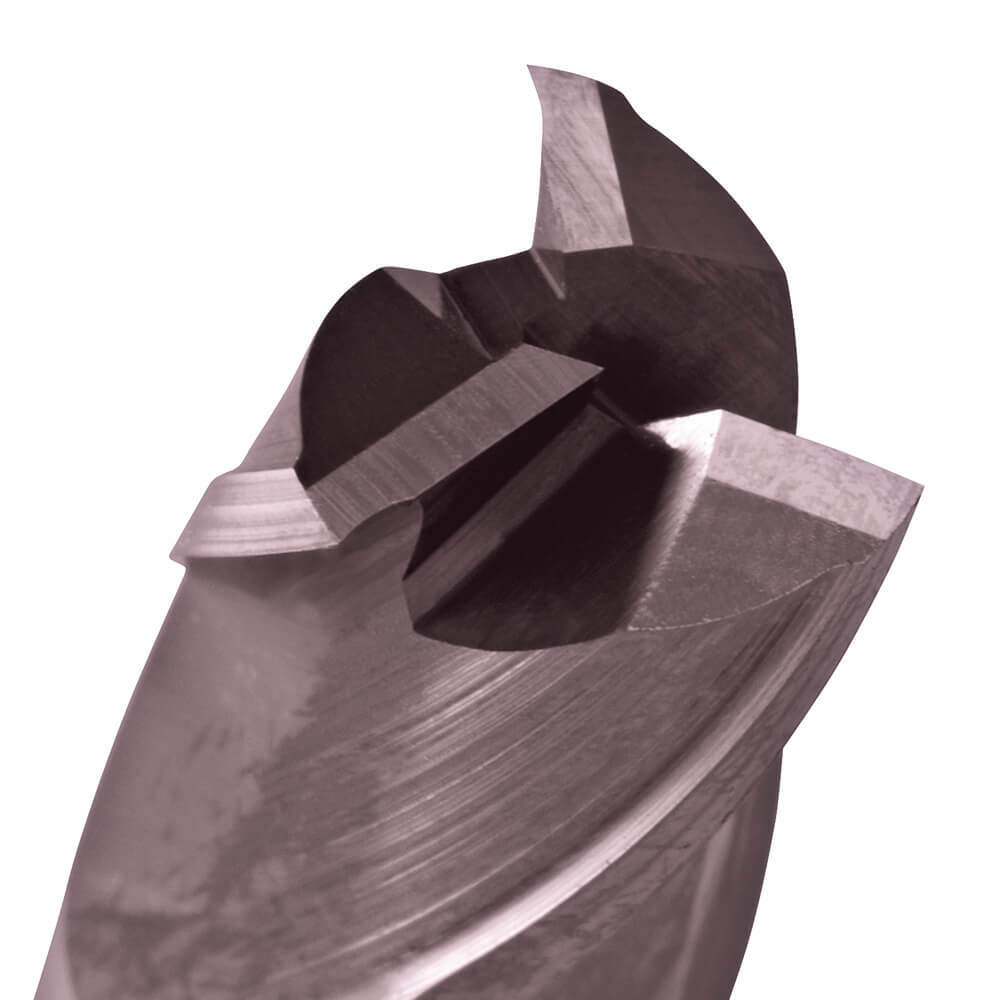

Design features
- Solid carbide (VHM) construction.
- TiAlN coating for longer tool life.
- 3 flutes, 30° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes

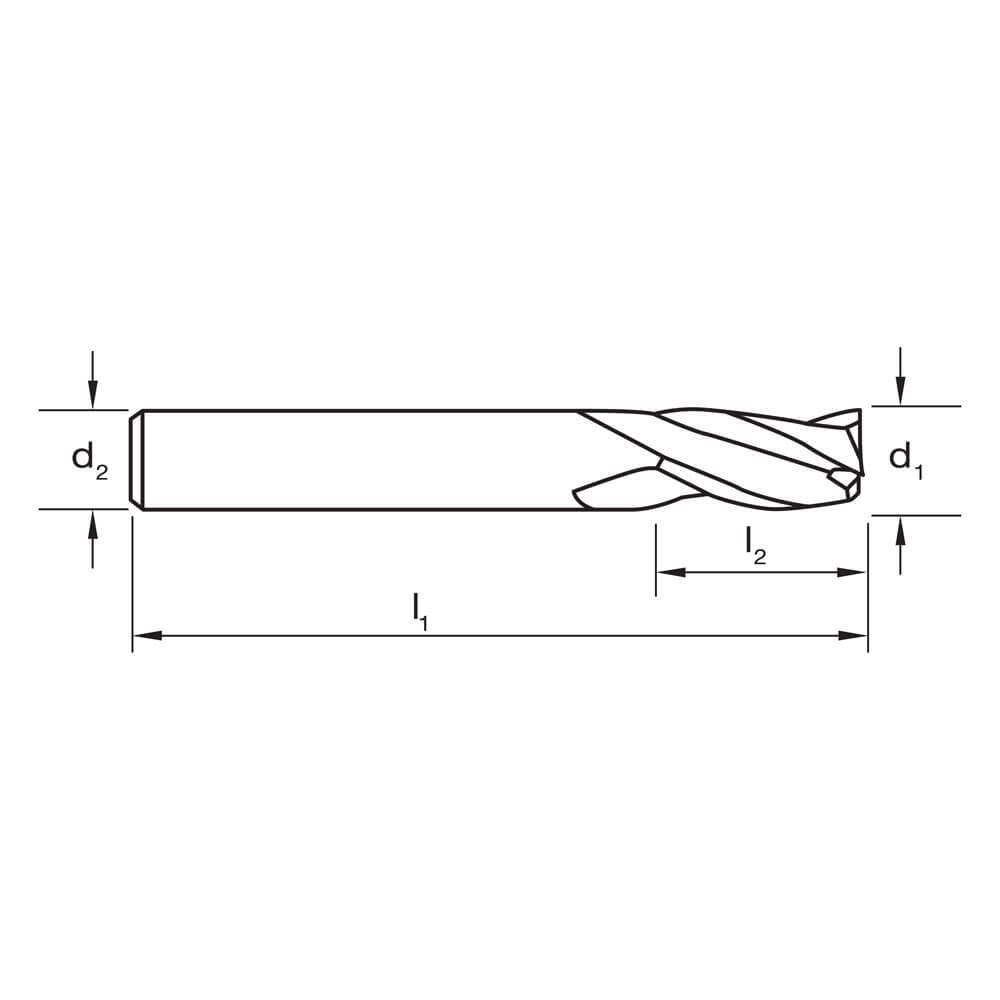

Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E515 0300 | 3 | 57 | 7 | 6 | 3 |
| E515 0400 | 4 | 57 | 8 | 6 | 3 |
| E515 0500 | 5 | 57 | 10 | 6 | 3 |
| E515 0600 | 6 | 57 | 10 | 6 | 3 |
| E515 0700 | 7 | 63 | 13 | 8 | 3 |
| E515 0800 | 8 | 63 | 16 | 8 | 3 |
| E515 0900 | 9 | 72 | 16 | 10 | 3 |
| E515 1000 | 10 | 72 | 19 | 10 | 3 |
| E515 1200 | 12 | 83 | 22 | 12 | 3 |
| E515 1400 | 14 | 83 | 22 | 14 | 3 |
| E515 1600 | 16 | 92 | 26 | 16 | 3 |
| E515 1800 | 18 | 92 | 26 | 18 | 3 |
| E515 2000 | 20 | 104 | 32 | 20 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E515 |
| Type | Endmill, 3 flute, regular length |
| Material | solid carbide (VHM) |
| Finish | TiAlN |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 13 sizes, 3 to 20 mm |
