Sutton E572 3/16" Endmill 4 Flute - Carbide VHM Ultra - AlCrN - Regular
Available

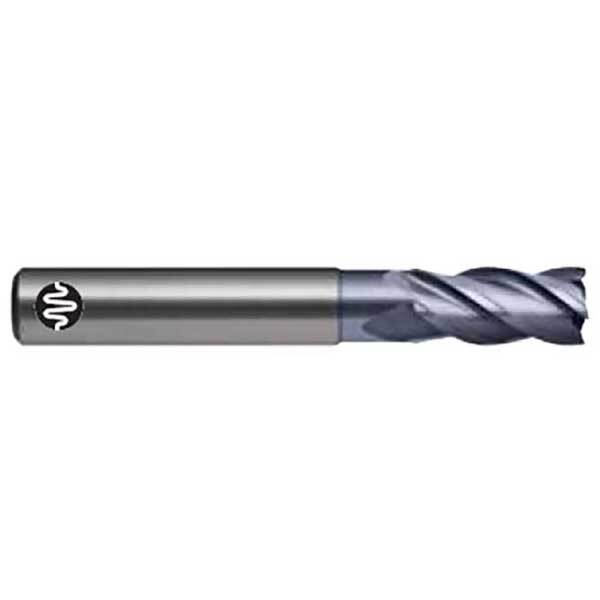

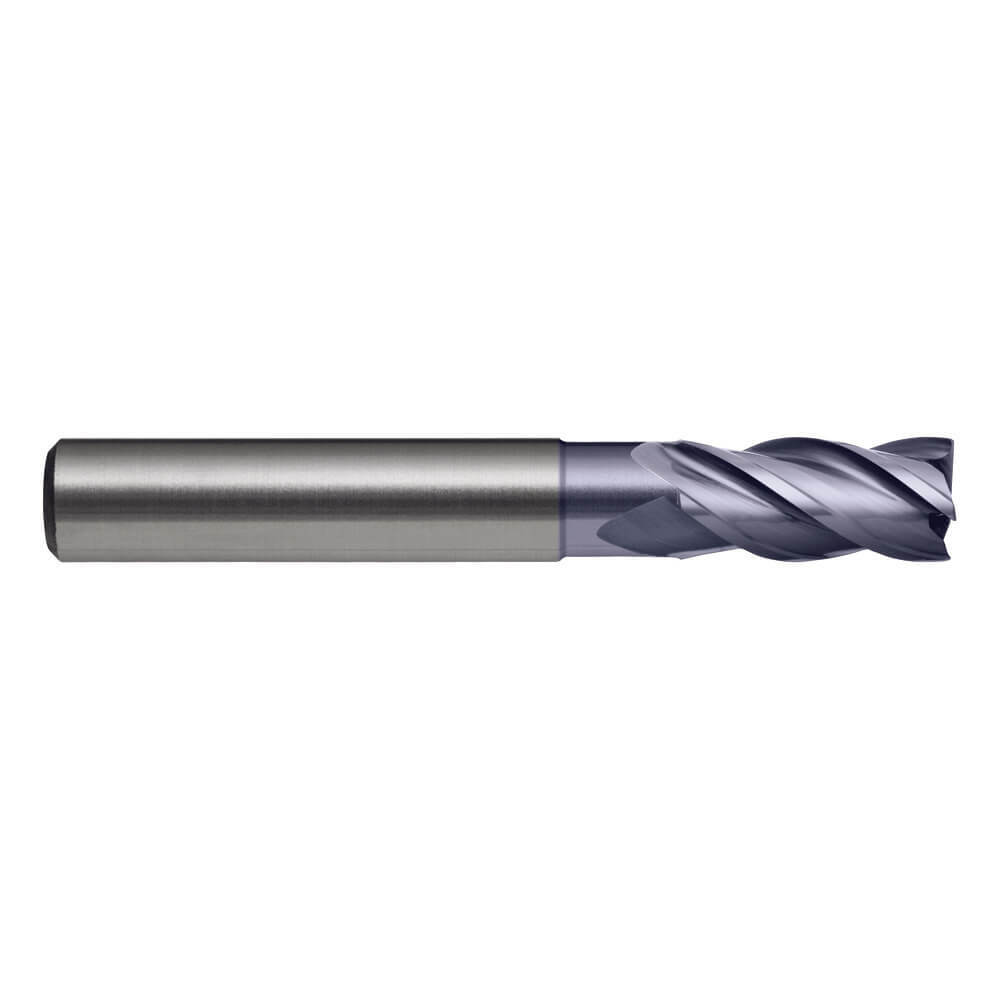

The Sutton E572 is a 4 flute endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the regular length series. This listing covers 7 fractional-inch sizes from 3/16 in to 1 in.

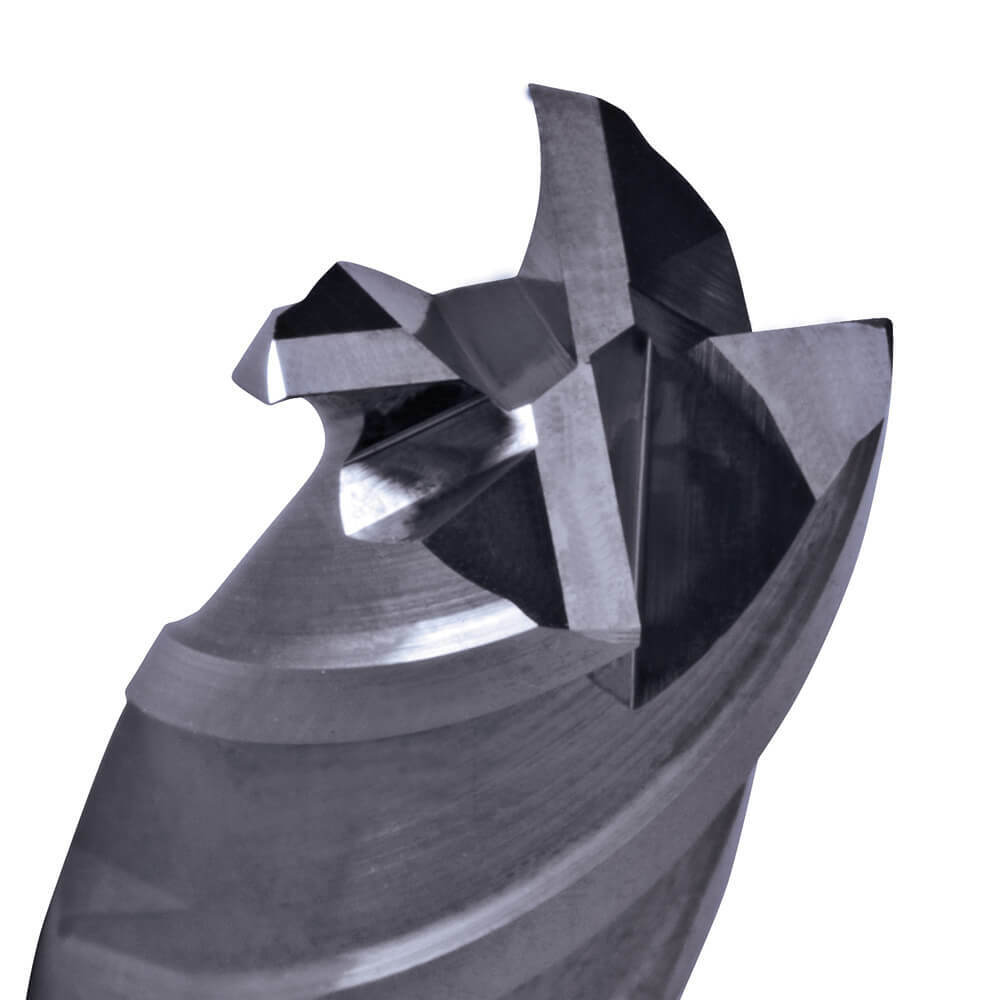

The cutting edge has a 35/38° variable helix and the designation is UNI. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance. The cutting length is to DIN 6527 L.
Where this product is used
- Universal use for slotting and finishing with one tool.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 4 flutes, 35/38° variable helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: shank h6.
Sizes
Diameters and lengths are in inches. Item numbers are the Sutton catalogue numbers.

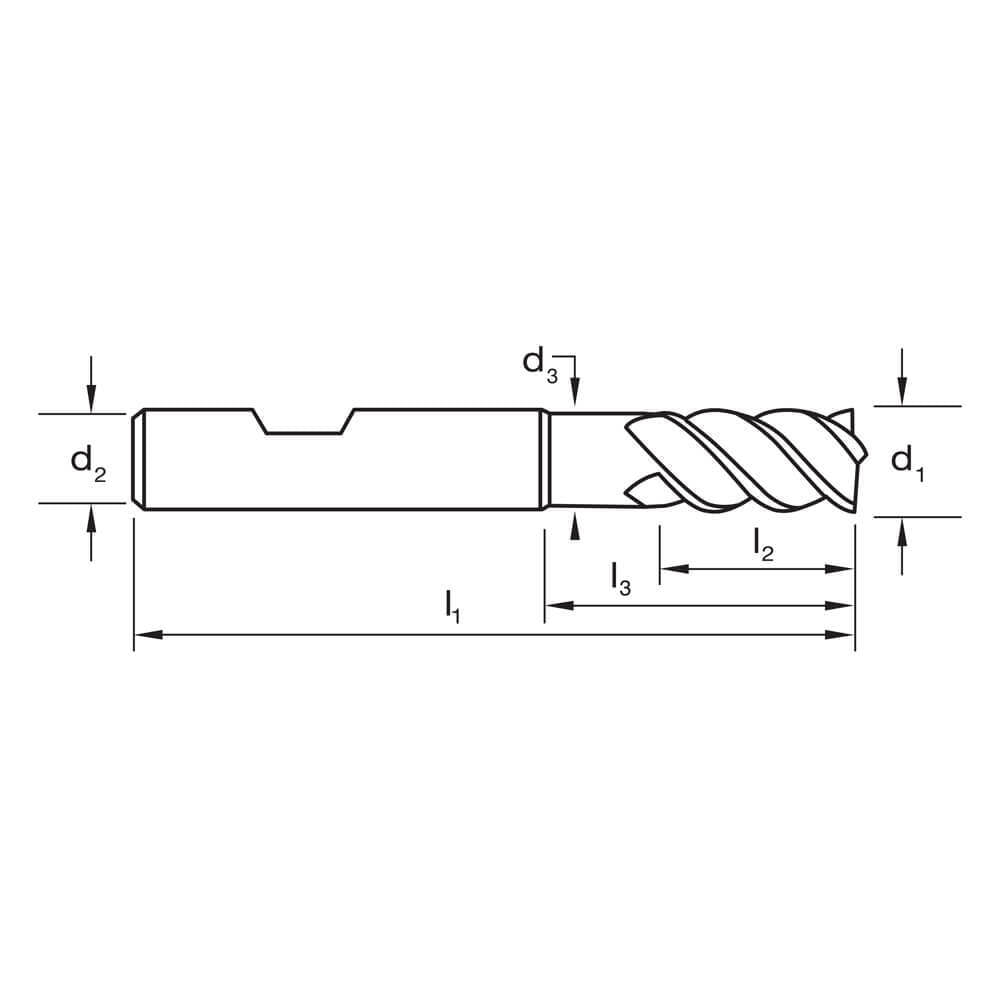

| Item no. | d1 (in) | d1 (mm) | l1 overall (in) | l2 flute (in) | d2 shank (in) | Flutes | Corner chamfer (in) |
|---|---|---|---|---|---|---|---|
| E572 0476 | 3/16 | 4.76 | 2 | 7/16 | 3/16 | 4 | 0.002 |
| E572 0635 | 1/4 | 6.35 | 2 1/2 | 1/2 | 1/4 | 4 | 0.004 |
| E572 1111 | 7/16 | 11.11 | 3 | 1 | 7/16 | 4 | 0.008 |
| E572 1270 | 1/2 | 12.7 | 3 | 1 | 1/2 | 4 | 0.008 |
| E572 1588 | 5/8 | 15.88 | 3 1/2 | 1 1/4 | 5/8 | 4 | 0.011 |
| E572 1905 | 3/4 | 19.05 | 4 | 1 1/2 | 3/4 | 4 | 0.011 |
| E572 2540 | 1 | 25.4 | 4 | 1 1/2 | 1 | 4 | 0.011 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E572 |
| Type | Endmill, 4 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R35/38 |
| Designation | UNI |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 7 sizes, 3/16 to 1 in |
