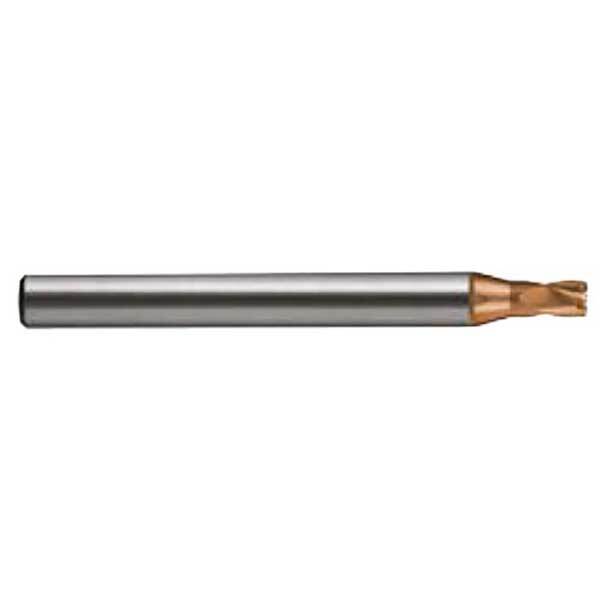

Sutton E650 2mm Hi-Feed Endmill 4 Flute - Carbide VHM - TiSiN, 0.3 mm corner radius
Out of stock

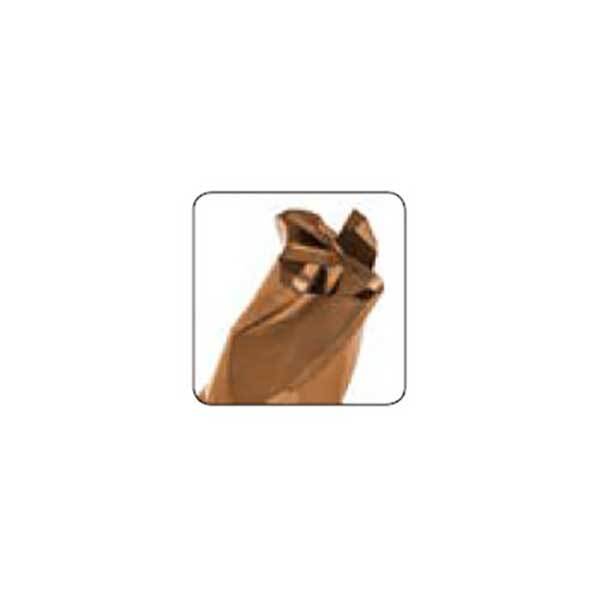

The Sutton E650 is a 4 flute hi-feed endmill made from solid carbide (VHM), with a TiSiN coating. This listing covers 3 metric sizes from 2 mm to 3 mm.

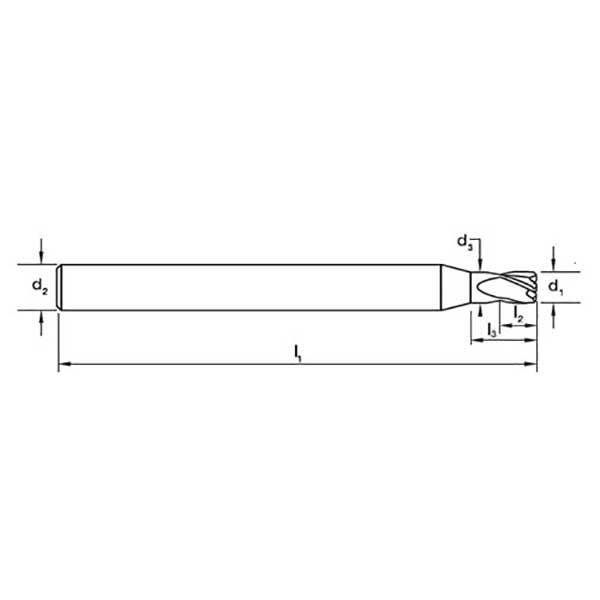

The cutting edge has a 40° helix and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- High feed milling.
Design features
- Solid carbide (VHM) construction.
- TiSiN coating for high speed machining.
- 4 flutes, 40° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|---|
| E650 0201 | 2 | 60 | 2 | 6 | 6 | 4 | 0.3 |
| E650 0202 | 2 | 60 | 2 | 6 | 6 | 4 | 0.5 |
| E650 0302 | 3 | 60 | 3 | 7 | 6 | 4 | 0.5 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E650 |
| Type | Hi-Feed Endmill, 4 flute |
| Material | solid carbide (VHM) |
| Finish | TiSiN |
| Helix / geometry | R40 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Shank tolerance | h6 |
| Sizes in this listing | 3 sizes, 2 to 3 mm |
