Sutton H117 PDT2 Pilot Drill 6.0 x 76mm - HSS with Ejection Spring
Available

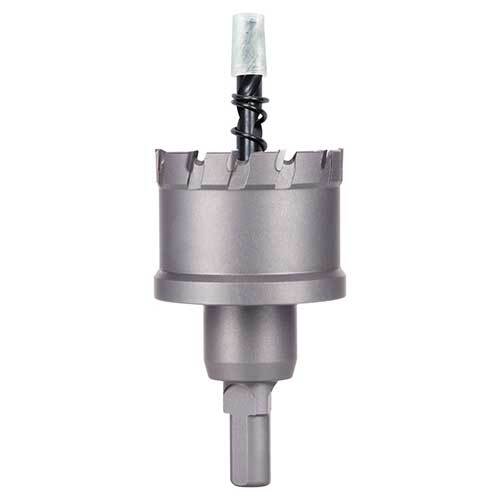

The Sutton H117 is a heavy duty tungsten carbide tooth (TCT) holesaw with a 25 mm cutting depth. The range has 9 sizes from 16 to 50 mm, each with its arbor, plus a replacement PDT2 pilot drill. It is designed to cut steel, stainless steel, ferrous metals, aluminium, plastics and fibreglass.
Precision ground teeth are designed to give a smooth, high-capacity cut, and to last up to 10 times longer than standard bi-metal holesaws. The ejector spring ejects the core automatically, the safety stopper is designed to prevent breakthrough and protect the work surface, and the 3-flat shank grips positively in the chuck. It runs in hand-held and stationary drilling machines.
Where this product is used
- Cutting holes in steel, stainless steel, ferrous metals, aluminium, plastics and fibreglass.
- Electrical, plumbing and metalworking holes in sheet, plate and section.
- Applications include DIY, trade, automotive, electrical, plumbing, metalworking and MRO.
Sizes and item numbers
Every size in the range with its Sutton item number. Cutting depth is in millimetres.
| Item no. | Diameter (mm) | Diameter (in) | Cutting depth (mm) | Pilot drill |
|---|---|---|---|---|

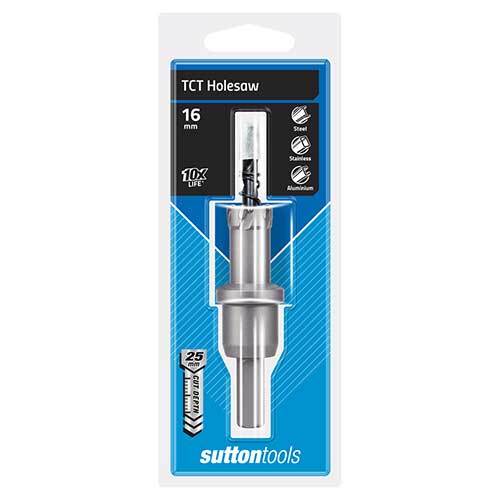

| H117 0160 | 16 | 5/8 | 25 | PDT2 |
| H117 0190 | 19 | 3/4 | 25 | PDT2 |

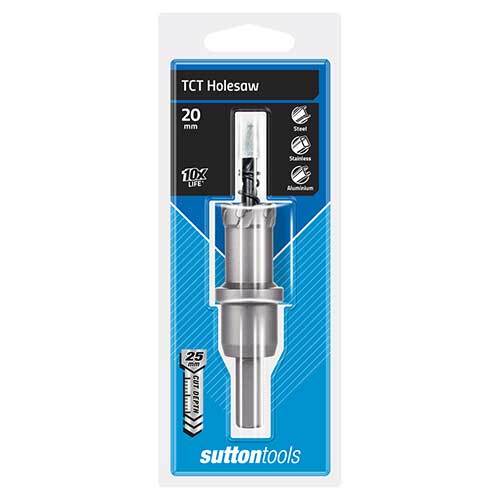

| H117 0200 | 20 | - | 25 | PDT2 |
| H117 0220 | 22 | 7/8 | 25 | PDT2 |

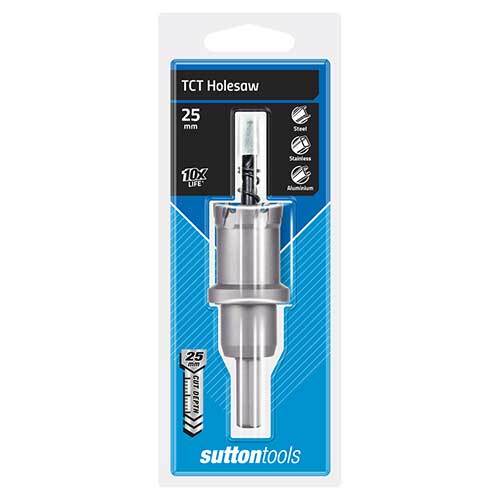

| H117 0250 | 25 | 1 | 25 | PDT2 |

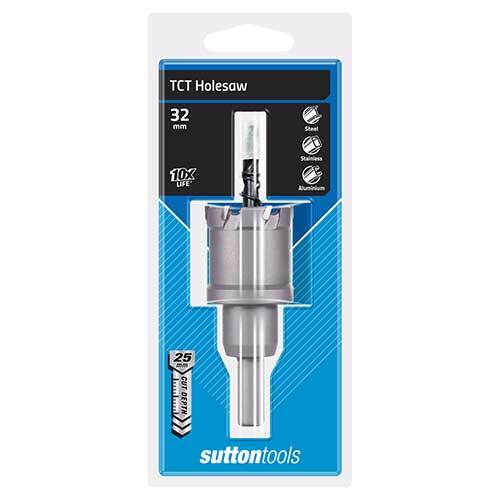

| H117 0320 | 32 | 1-1/4 | 25 | PDT2 |

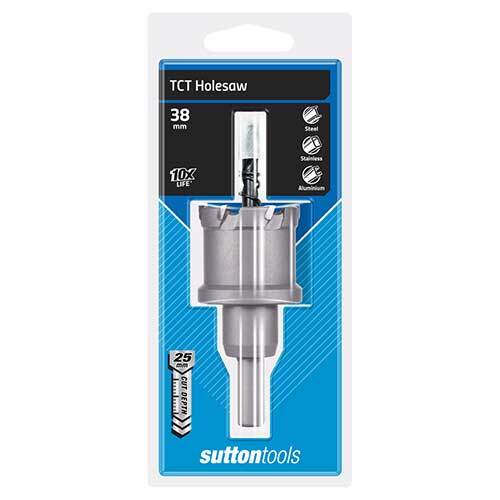

| H117 0380 | 38 | 1-1/2 | 25 | PDT2 |
| H117 0400 | 40 | 1-9/16 | 25 | PDT2 |

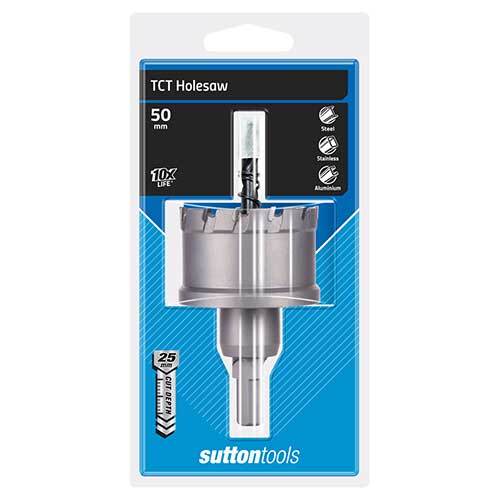

| H117 0500 | 50 | 1-15/16 | 25 | PDT2 |

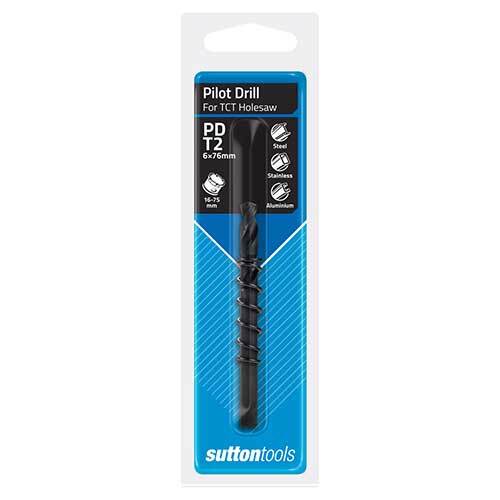

| H117 PDT2 | 6.0 x 76 mm pilot drill (HSS, with ejection spring) | Spare pilot |
Recommended cutting speed
Recommended cutting speed in RPM by holesaw diameter. Keep the tungsten carbide teeth sharp.
| Diameter (mm) | Steel | Alloy steel | Stainless steel | Aluminium | Copper | Plastic | Fibreglass |
|---|---|---|---|---|---|---|---|
| 16 to 20 | 700-1000 | 700-900 | 700-800 | 1500-1800 | 800-1000 | 1500-1800 | 1500-1800 |
| 21 to 30 | 700-800 | 600-700 | 400-600 | 1500-1800 | 800-1000 | 1500-1800 | 1500-1800 |
| 31 to 40 | 500-600 | 450-500 | 350-450 | 1500-1800 | 800-1000 | 1500-1800 | 1500-1800 |
| 41 to 50 | 400-500 | 300-400 | 250-400 | 800-1000 | 600-800 | 1000-1500 | 1000-1500 |
Using the holesaw
- Use in hand-held or stationary drilling machines. The 3-flat shank grips positively in the chuck.
- Set the drill to the recommended speed for the material (see the table) and keep the teeth sharp.
- Use cutting fluid when cutting steel and stainless steel, and let the teeth cut rather than forcing the saw.
- The ejector spring pushes the core out automatically, and the safety stopper is designed to prevent breakthrough.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | H117 |
| Type | TCT holesaw with arbor |
| Teeth | Tungsten carbide tooth (TCT), precision ground |
| Cutting depth | 25 mm |
| Sizes in this range | 9 sizes, 16 to 50 mm |
| Pilot drill | PDT2 (6.0 x 76 mm) |
| Shank | 3-flat |
| Core ejection | Spring-loaded ejector |
Related products
Also available: the H1170005 five piece TCT holesaw set (16, 20, 25, 32 and 40 mm) and the H113 TCT Pro holesaw with a 20 mm cutting depth. For wood, plasterboard and tile see the H127 multi-purpose TCT holesaw. Browse metal hole saws and all hole saws and accessories. Our hole saw guide covers sizes, arbors and pilot drills.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton H117 Holesaw TCT - 25mm: Pilot drill 6.0 x 76 (PDT2)
SKU: A0131760 | Model: H117PDT2
Sutton H117 Pilot Drill For TCT Hole saw
Sutton Tools TCT Holesaws are industrial quality, designed for 5mm cutting depth. They can be used for machine or hand drilling, and are suited to cut steel, stainless steel, aluminium, fibreglass, chipboard, plastic, and other abrasive materials.
Precision ground Tungsten Carbide Teeth produce a smooth, high cutting capacity, lasting up to 10 times longer than standard bi-metal hole saws.
