Sutton 19mm H113 TCT Pro Holesaw with Arbor - Up to 20mm Cutting Depth
Available

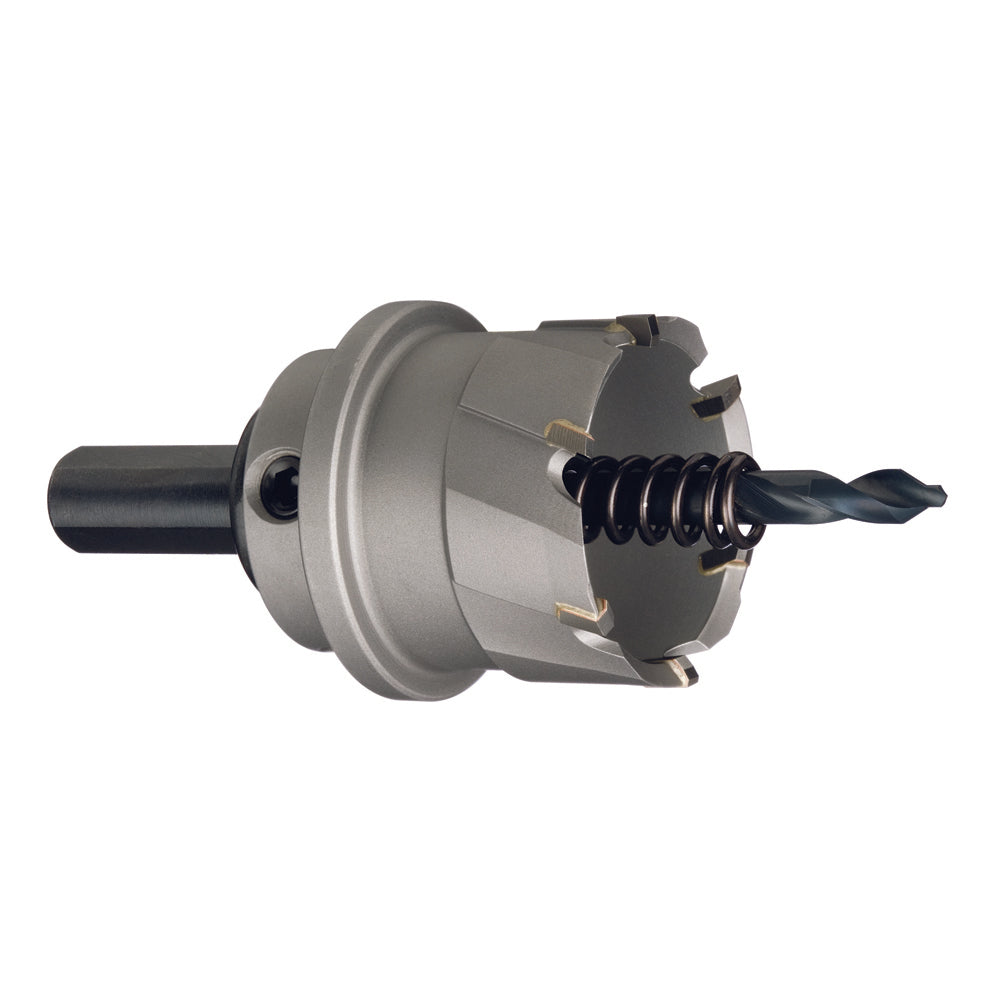

The Sutton H113 is a TCT Pro (Long) tungsten carbide tooth holesaw with an anti-shear arbor system and a cutting depth of up to 20 mm. The range has 18 sizes from 19 to 75 mm, each with its arbor. It is designed to cut steel, stainless steel, ferrous metals, aluminium, wood, chipboard, plastics and fibreglass.
Precision ground teeth are designed to cut difficult and abrasive materials with a smooth, high-capacity cut and long tool life, and to last up to 10 times longer than standard bi-metal holesaws. The ejector spring ejects the core automatically, the safety stopper is designed to prevent breakthrough and protect the work surface, and the replaceable pilot drill is held securely with a grub screw. It runs in hand-held and stationary drilling machines.
Where this product is used
- Cutting holes in flat materials, pipe and curved surfaces in steel, stainless steel, ferrous metals, aluminium, wood, chipboard, plastics and fibreglass.
- Hand drilling machines: material thickness up to 6 mm and hole diameter up to 30 mm. Stationary drilling machines: material thickness up to 20 mm.
- Applications include DIY, trade, automotive, electrical, plumbing, metalworking and MRO.
Sizes and item numbers
Every size in the range with its Sutton item number. The shank is 13 mm and the cutting depth is 20 mm on every size.
| Item no. | Diameter (mm) | Diameter (in) | Cutting depth (mm) | Pilot drill | Shank (mm) |
|---|---|---|---|---|---|
| H113 0190 | 19 | 3/4 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0200 | 20 | - | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0210 | 21 | 13/16 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0220 | 22 | 7/8 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0250 | 25 | 1 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0280 | 28 | - | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0300 | 30 | 1-3/16 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0320 | 32 | 1-1/4 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0350 | 35 | 1-3/8 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0380 | 38 | 1-1/2 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0400 | 40 | 1-9/16 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0440 | 44 | 1-3/4 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0500 | 50 | 1-15/16 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0550 | 55 | - | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0600 | 60 | 2-3/8 | 20 | H113 0060 (6.0 x 80 mm) | 13 |
| H113 0650 | 65 | 2-9/16 | 20 | H113 0080 (8.0 x 100 mm) | 13 |
| H113 0700 | 70 | 2-3/4 | 20 | H113 0080 (8.0 x 100 mm) | 13 |
| H113 0750 | 75 | - | 20 | H113 0080 (8.0 x 100 mm) | 13 |
Using the holesaw
- Use cutting fluid when cutting steel and stainless steel.
- In hand drilling machines, clear the chips in material thicker than 2 mm. In stationary machines, clear the chips in material thicker than 6 mm.
- Keep the drill speed moderate for the hole size and let the teeth cut rather than forcing the saw.
- Secure the replaceable pilot drill with the grub screw before drilling, and fit the pilot drill that matches the holesaw size.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | H113 (TCT Pro, Long) |
| Type | TCT holesaw with arbor and pilot drill |
| Teeth | Tungsten carbide tooth (TCT), precision ground |
| Cutting depth | Up to 20 mm |
| Sizes in this range | 18 sizes, 19 to 75 mm |
| Arbor | Anti-shear arbor system, 13 mm shank |
| Pilot drill | H113 0060 (HSS 6.0 x 80 mm) for 19 to 60 mm; H113 0080 (HSS 8.0 x 100 mm) for 65 to 75 mm |
| Core ejection | Spring-loaded ejector |
Related products
Also available: the H117 TCT holesaw, 25 mm cutting depth and the H1080005 TCT Pro (Short) set for flat sheet. For wood, plasterboard and tile see the H127 multi-purpose TCT holesaw. Browse metal hole saws and all hole saws and accessories. Our hole saw guide covers sizes, arbors and pilot drills.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton H113 TCT Pro Holesaw, Arbor, Pilot Drill - 19mm to 75mm: 19
SKU: A0010489 | Model: H1130190
Descriptions
Suited to cut holes in flat materials, pipe & curved surfaces such as steels, stainless steel, aluminum, fibre glass, chip board, plastic and other abrasive materials
Hand Drilling Machines: Suitable in material thickness up to 6mm. Cutting diameter up to 30mm. Clear chips for thickness over 2mm
Stationary Drilling Machines: Suitable in material thickness up to 20mm. Clear chips for thickness over 6mm
