Sutton H1250140 14mm (9/16") Heavy Duty Bi-Metal Cobalt Holesaw - 32mm Cutting Depth
Available

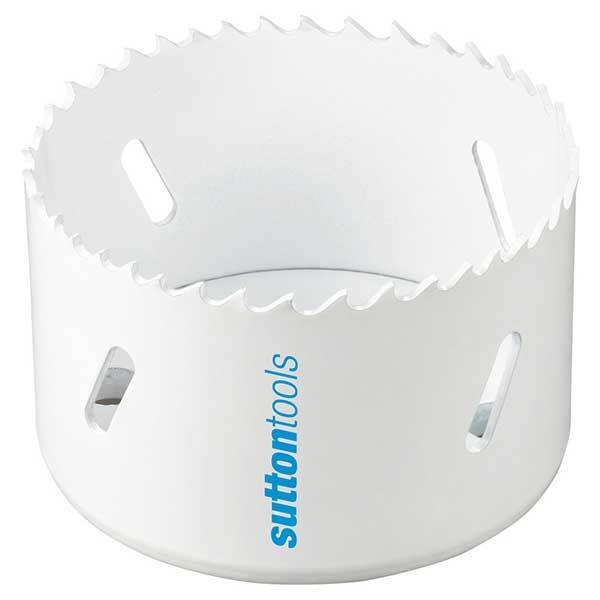

The Sutton H125 is a heavy duty bi-metal cobalt holesaw in 52 sizes from 14 to 152 mm (9/16" to 6"), with a 32 mm cutting depth. It is made from bi-metal cobalt HSS and is used for machine or hand drilling in steels, stainless steel, cast iron, non-ferrous materials, plastic and wood.
Bi-metal cobalt HSS teeth are designed for toughness and longer life. The varied pitched teeth are designed to reduce vibration for a cleaner finish and greater accuracy, and the fast ejection slots help remove the core. The thread follows the international standard and accepts all arbors. Use Sutton Tools lubricating fluid to increase the life of the tool when cutting metal.
Where this product is used
- Machine or hand drilling holes in steels, stainless steel, cast iron, non-ferrous materials, plastic and wood.
- Applications include DIY, trade, industrial, automotive, electrical, plumbing, carpentry, general contracting, woodworking, metalworking, machine shop and MRO work.
Design features
- Bi-metal cobalt HSS: for toughness and longer life.
- Varied pitched teeth: designed to reduce vibration for a cleaner finish and greater accuracy.
- Fast ejection slots for core removal.
- International thread standard: accepts all arbors.
Sizes and item numbers
Diameters are shown in mm and inches. Choose the arbor by the thread column (1/2" UNF or 5/8" UNF) and the arbor codes shown.
| Diameter (mm) | Diameter (inch) | Cutting depth (mm) | UNF thread | Arbor | Pilot drill | Sutton item no. |
|---|---|---|---|---|---|---|
| 14 | 9/16" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0140 |
| 16 | 5/8" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0160 |
| 17 | 11/16" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0170 |
| 19 | 3/4" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0190 |

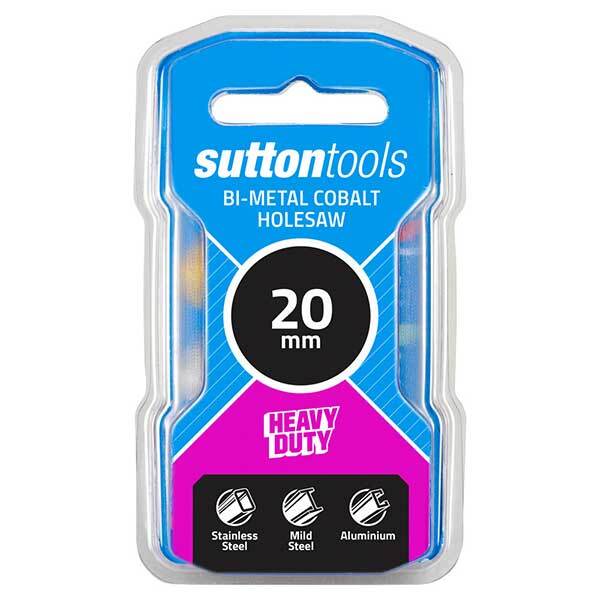

| 20 | - | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0200 |
| 21 | 13/16" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0210 |

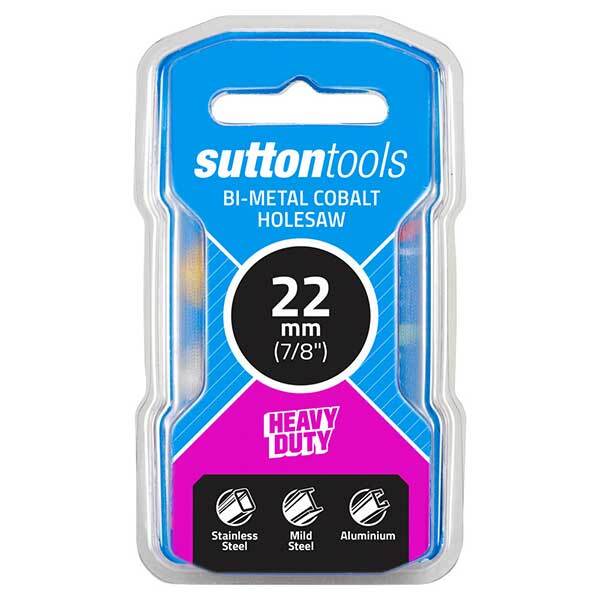

| 22 | 7/8" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0220 |
| 24 | 15/16" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0240 |
| 25 | 1" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0250 |

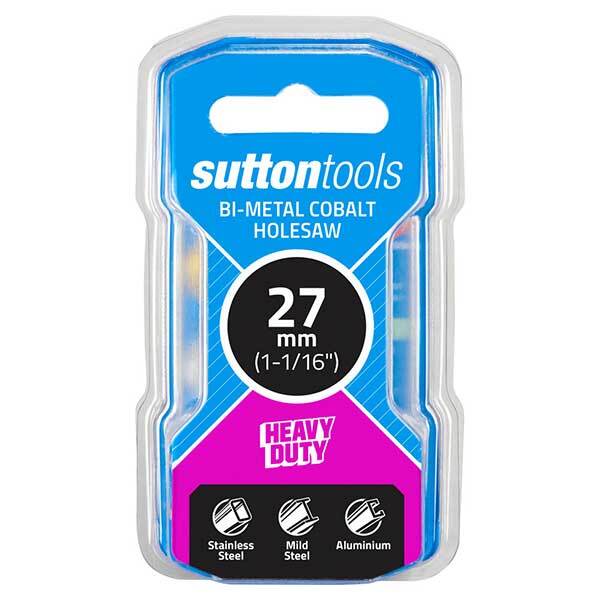

| 27 | 1-1/16" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0270 |
| 29 | 1-1/8" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0290 |
| 30 | 1-3/16" | 32 | 1/2" | UA1 | BD24 or BD26 | H125 0300 |
| 32 | 1-1/4" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0320 |

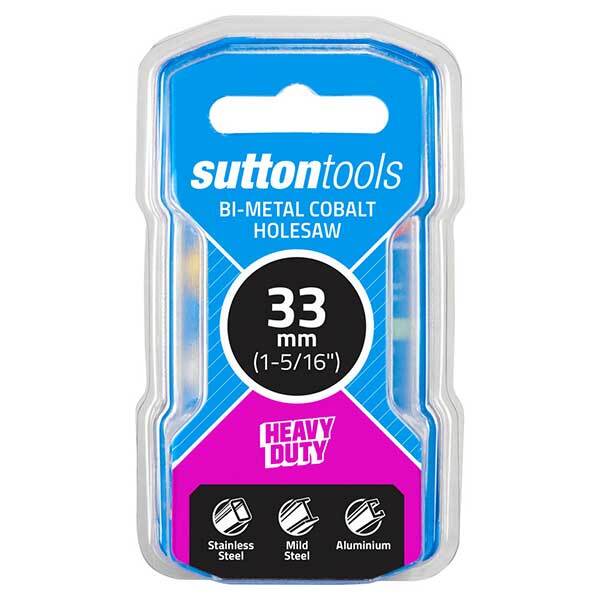

| 33 | 1-5/16" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0330 |
| 35 | 1-3/8" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0350 |
| 37 | 1-7/16" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0370 |

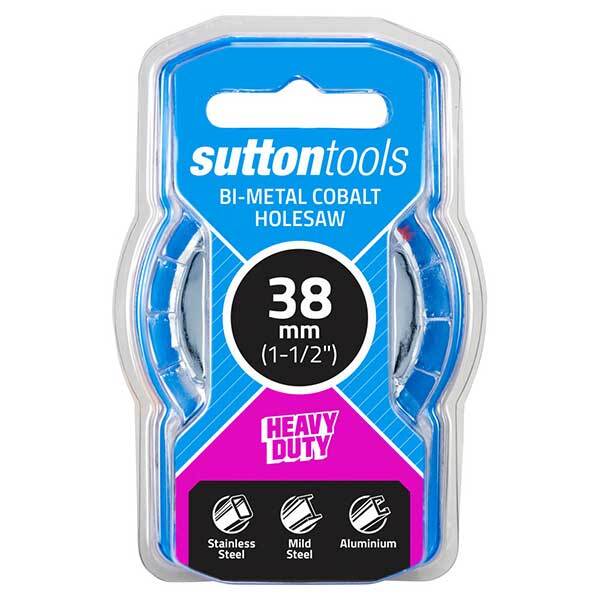

| 38 | 1-1/2" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0380 |

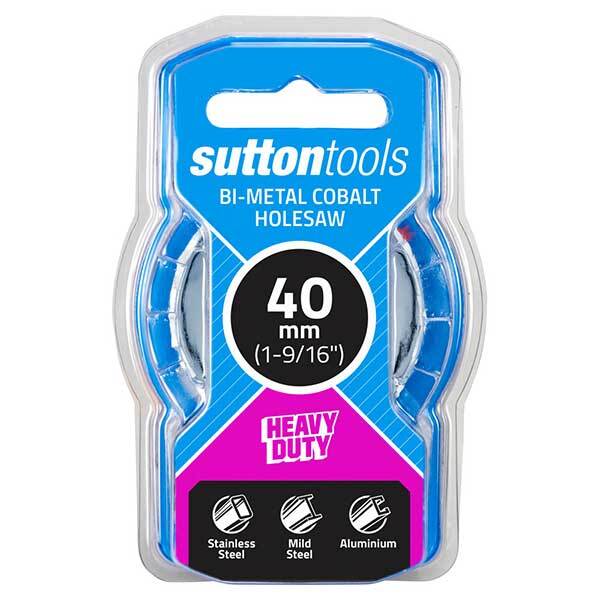

| 40 | 1-9/16" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0400 |
| 41 | 1-5/8" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0410 |

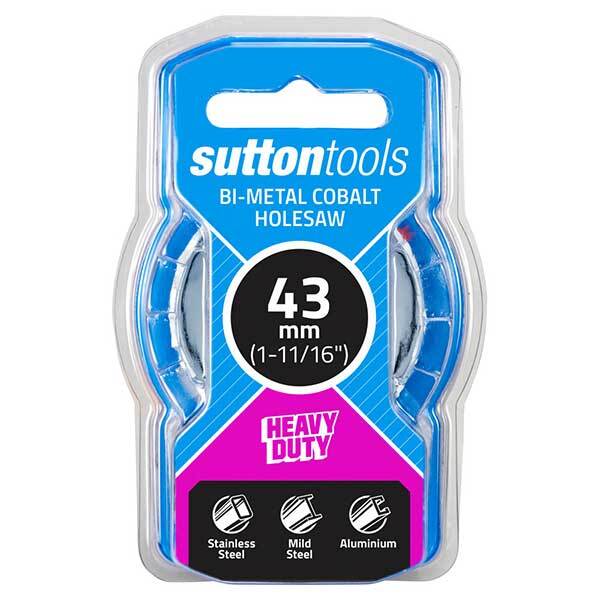

| 43 | 1-11/16" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0430 |

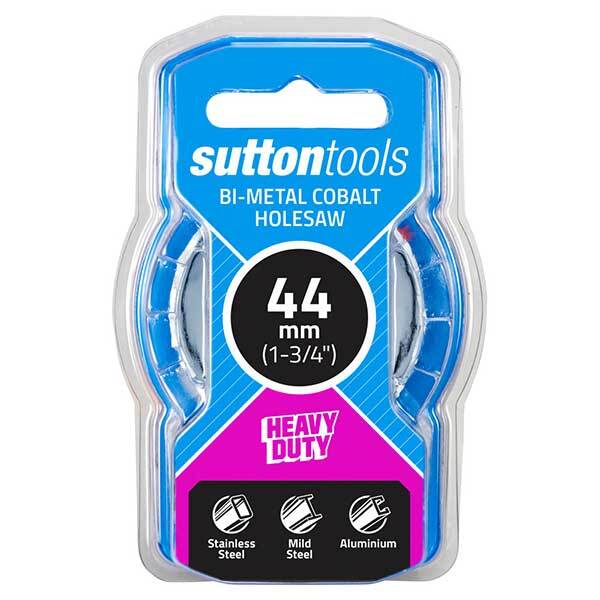

| 44 | 1-3/4" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0440 |
| 46 | 1-13/16" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0460 |
| 48 | 1-7/8" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0480 |

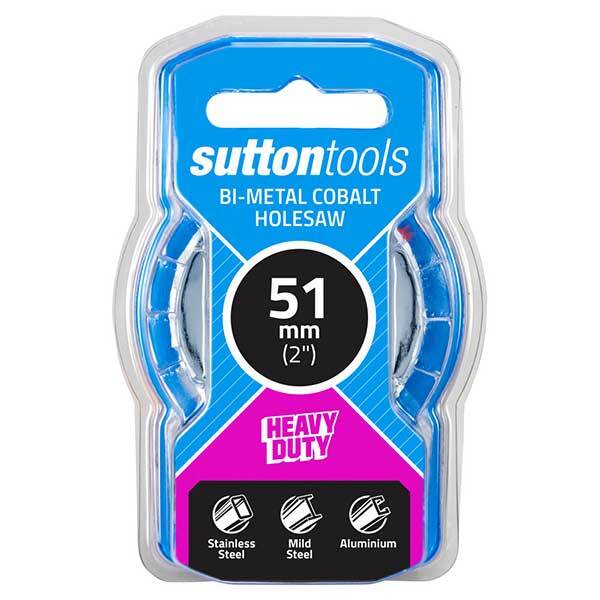

| 51 | 2" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0510 |
| 52 | 2-1/16" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0520 |

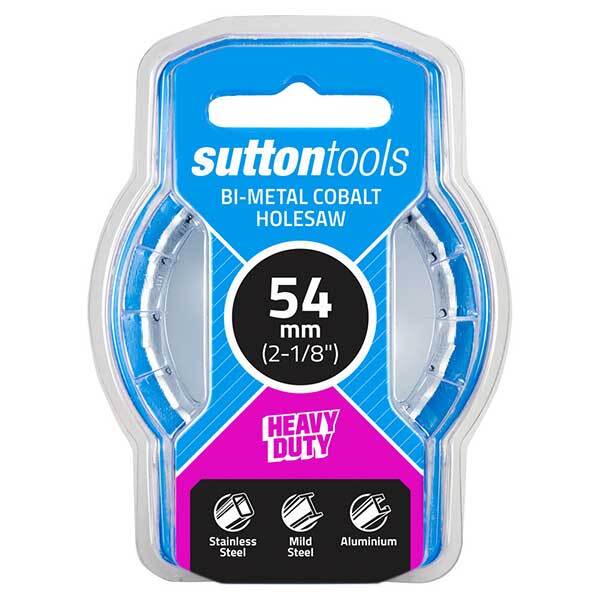

| 54 | 2-1/8" | 32 | 5/8" | UA2 or QFX | BD24 or BD26 | H125 0540 |
| 56 | 2-3/16" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0560 |

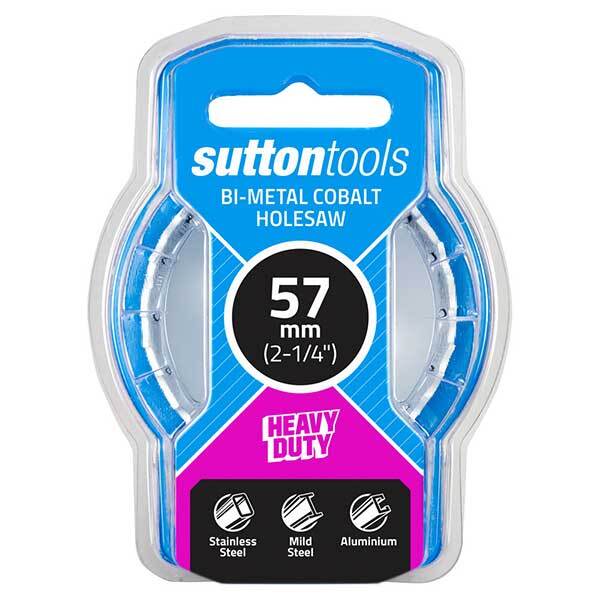

| 57 | 2-1/4" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0570 |
| 59 | 2-5/16" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0590 |
| 60 | 2-3/8" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0600 |
| 63 | 2-1/2" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0630 |

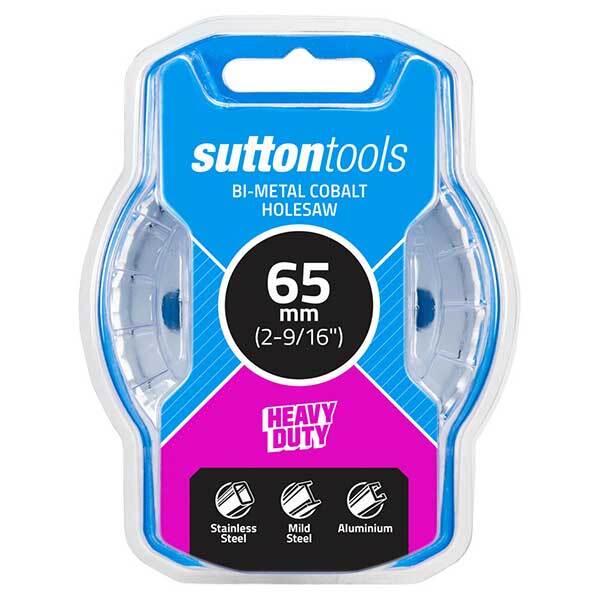

| 65 | 2-9/16" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0650 |

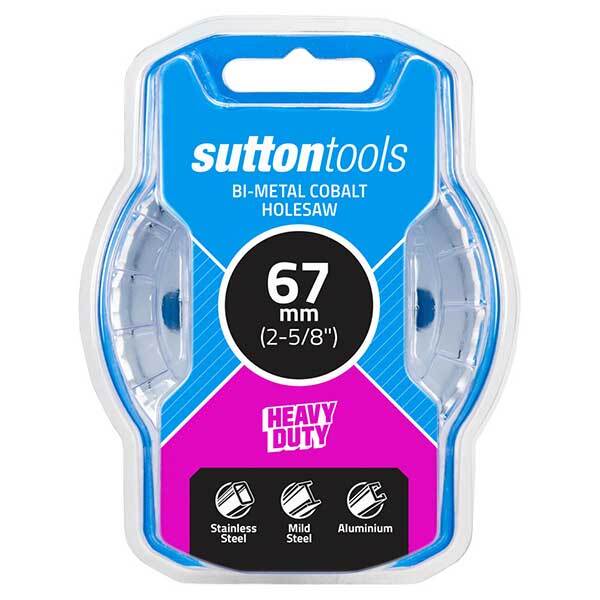

| 67 | 2-5/8" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0670 |

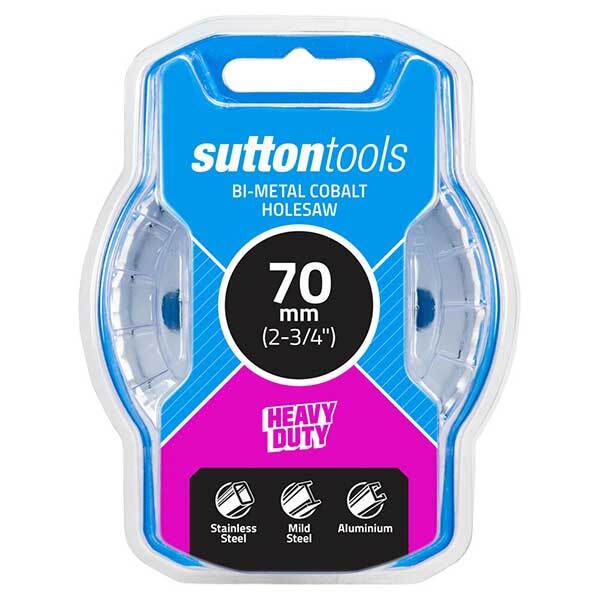

| 70 | 2-3/4" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0700 |
| 73 | 2-7/8" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0730 |
| 76 | 3" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0760 |
| 79 | 3-1/8" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0790 |
| 83 | 3-1/4" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0830 |
| 86 | 3-3/8" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0860 |

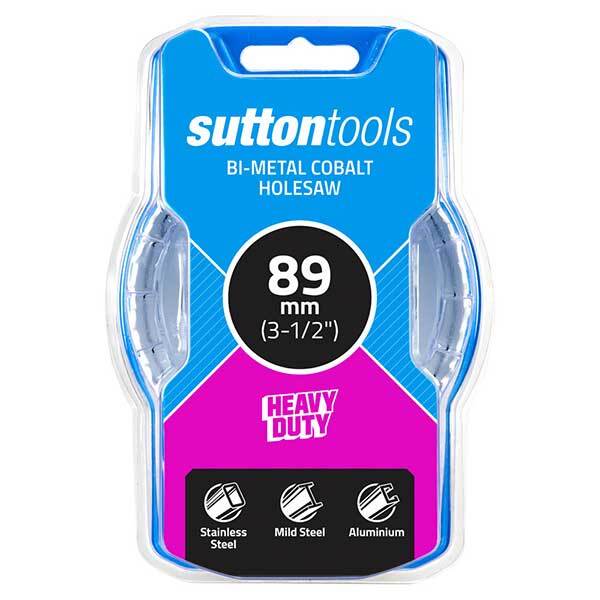

| 89 | 3-1/2" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0890 |
| 92 | 3-5/8" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0920 |
| 95 | 3-3/4" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0950 |
| 98 | 3-7/8" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 0980 |

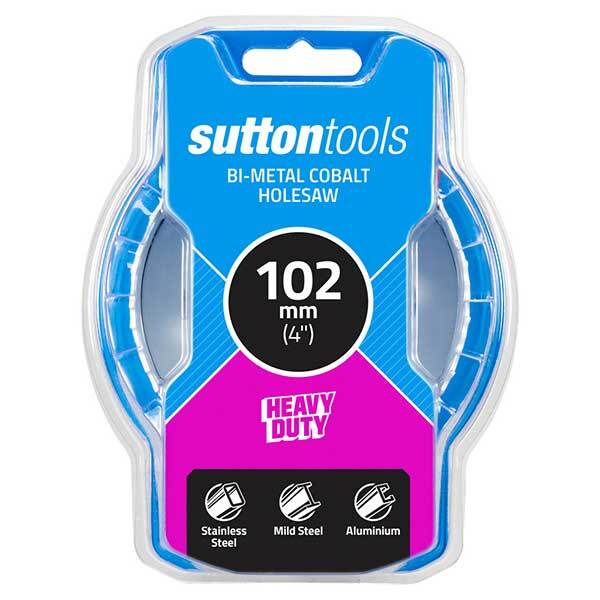

| 102 | 4" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 1020 |
| 105 | 4-1/8" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 1050 |
| 108 | 4-1/4" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 1080 |

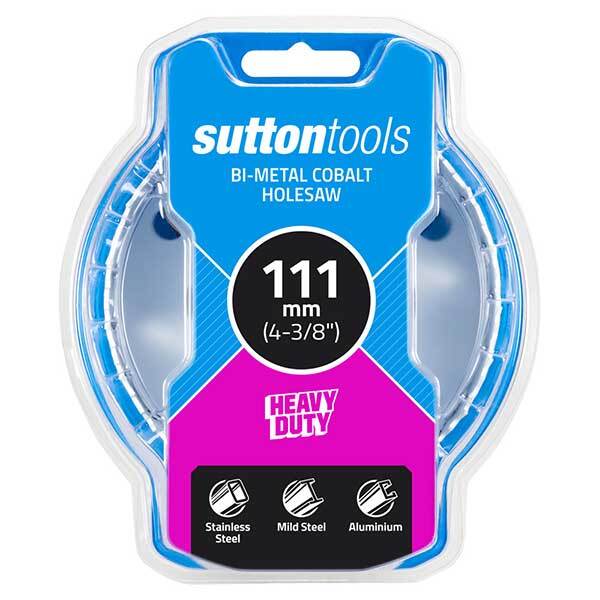

| 111 | 4-3/8" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 1110 |

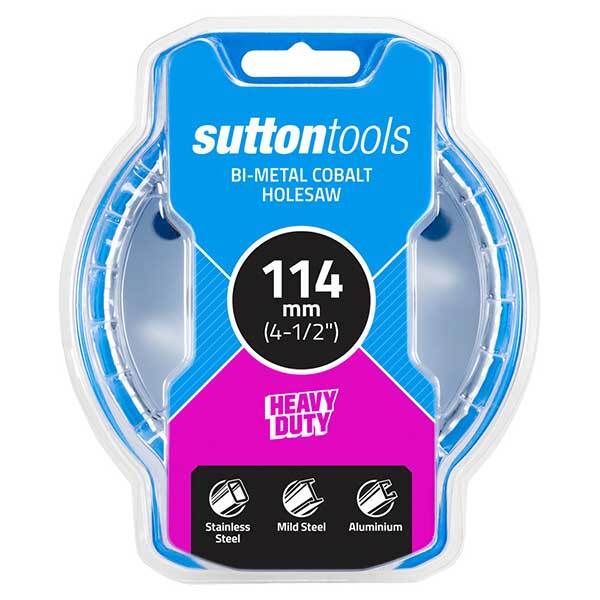

| 114 | 4-1/2" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 1140 |

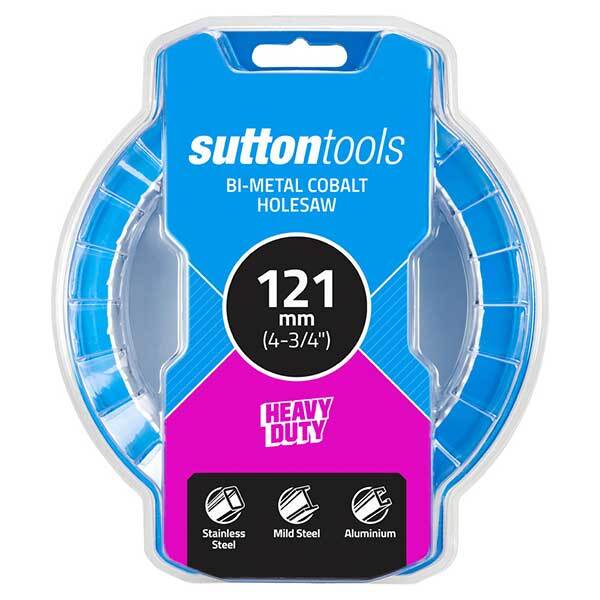

| 121 | 4-3/4" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 1210 |

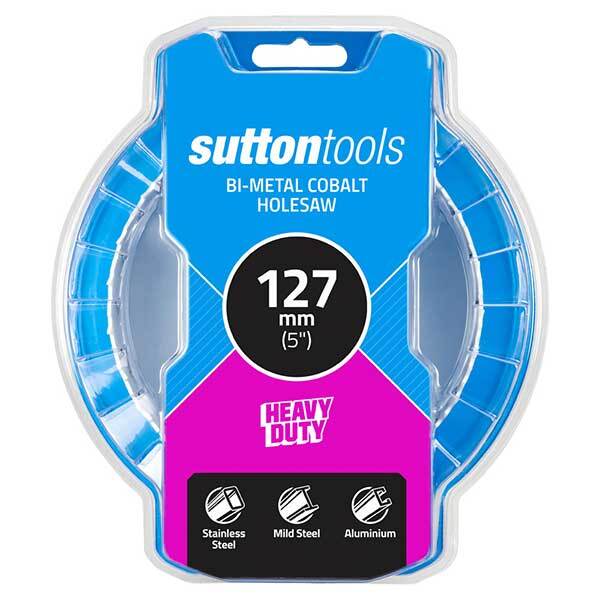

| 127 | 5" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 1270 |
| 140 | 5-1/2" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 1400 |
| 152 | 6" | 32 | 5/8" | UA3 or QFX | BD24 or BD26 | H125 1520 |
Choosing the arbor and pilot drill
Arbor and pilot drill by size: 14 to 30 mm: 1/2" UNF thread, arbor UA1; 32 to 54 mm: 5/8" UNF thread, arbor UA2 or QFX; 56 to 152 mm: 5/8" UNF thread, arbor UA3 or QFX. The pilot drill is BD24 or BD26 for every size. Matching arbors in the store: H112 universal arbors (UA1, UA2, UA3) and H103 Quick Fit arbors (QFX). Pilot drills: H107 BD24 and H112 BD26.
Using the holesaw
- Fit the holesaw to an arbor that matches its UNF thread, and fit the pilot drill so it protrudes beyond the teeth to set the centre of the hole.
- Check the chuck is tight and the arbor runs true before starting the cut.
- Start at a low speed and keep the drill square to the work.
- Use Sutton Tools lubricating fluid to increase the life of the tool when cutting metal.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | H125 |
| Type | Heavy Duty Bi-Metal Cobalt Holesaw |
| Diameter range | 14 to 152 mm (9/16" to 6") |
| Sizes | 52 sizes |
| Cutting depth | 32 mm |
| Tooth form | Varied pitched |
| Material | Bi-metal cobalt HSS |
| Thread | 1/2" UNF (up to 30 mm), 5/8" UNF (32 mm and larger) |
| Pilot drill | BD24 or BD26 |
Related products
Related Sutton holesaws and accessories: H105 Ultra Cobalt bi-metal holesaws, H128 carbide tipped holesaws and H127 multi-purpose TCT holesaws. Quick release system: H122 quick release starter kit. Browse all holesaws and accessories.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton H125 Heavy Duty Bi-Metal Cobalt Holesaw 14mm to 152mm - 32mm Cutting Depth: 14
SKU: A0131003 | Model: H1250140
Holesaw Diameter (mm) 14. Sutton Tools Bi-Metal Cobalt Hole Saw
Industrial quality hole saw designed for machine or hand drilling in steel, stainless steel, cast iron, non-ferrous metals, plastic, and wood.

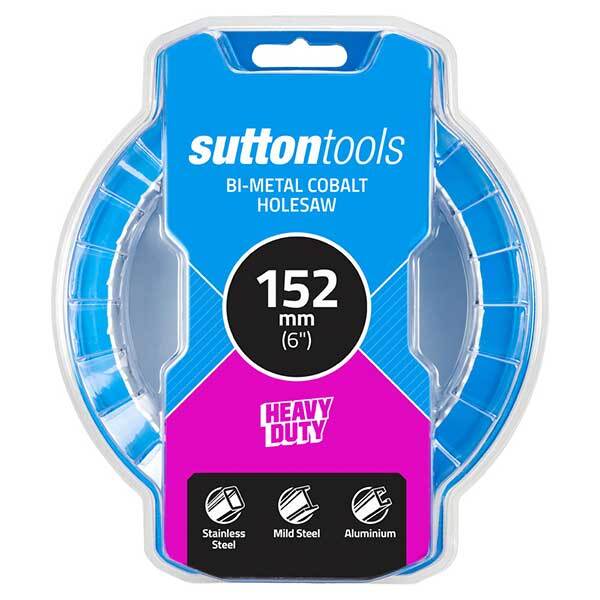

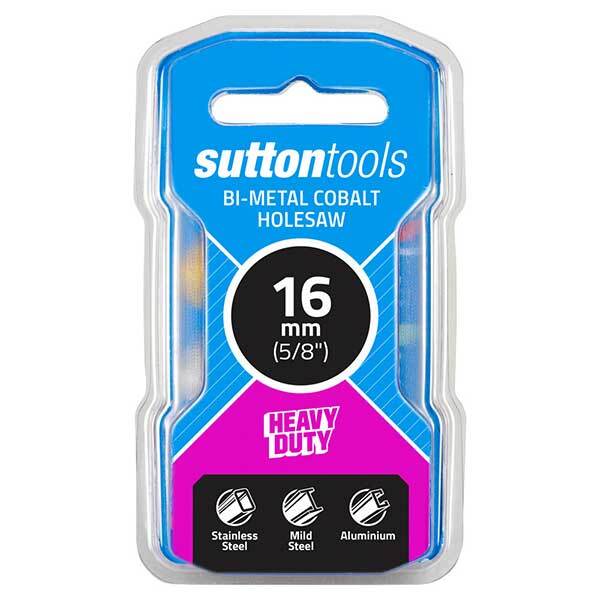

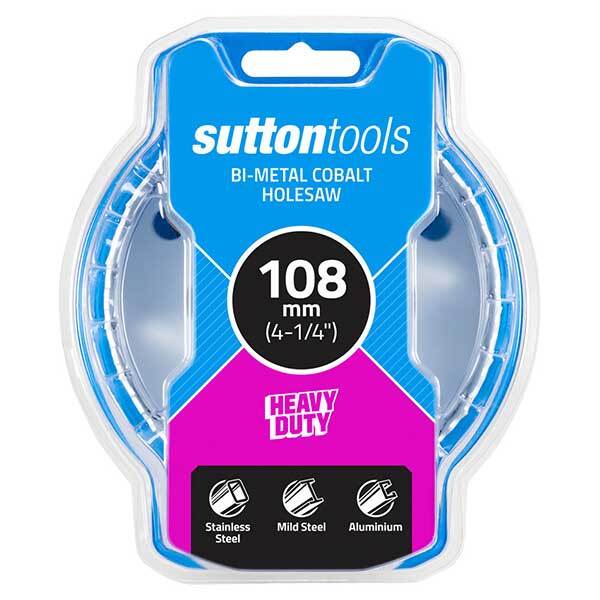

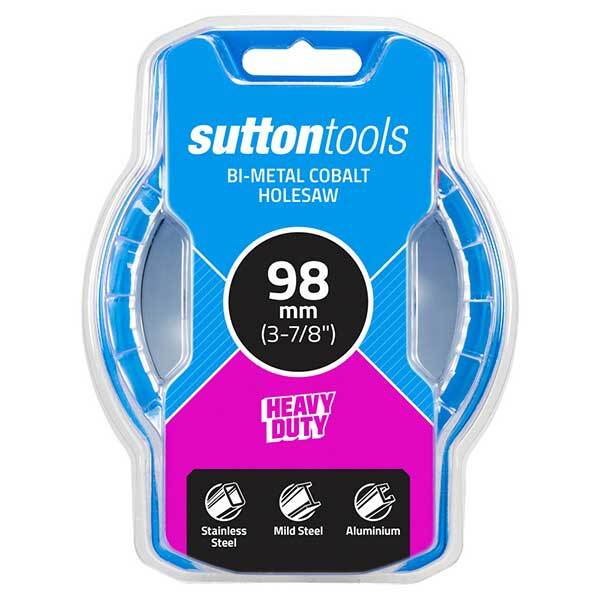

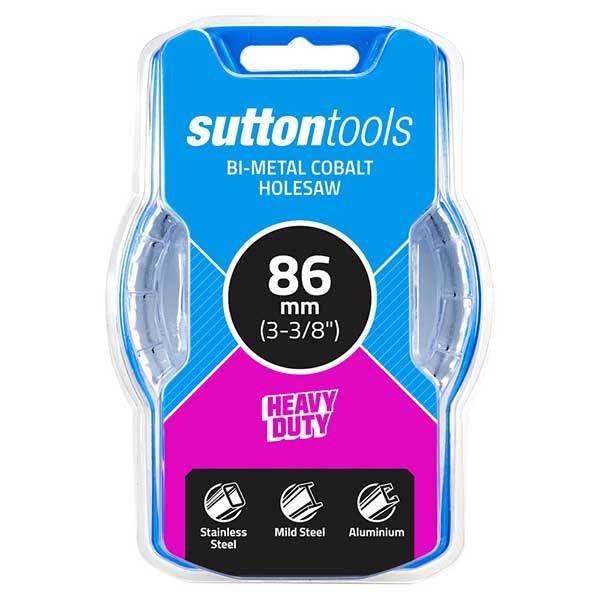

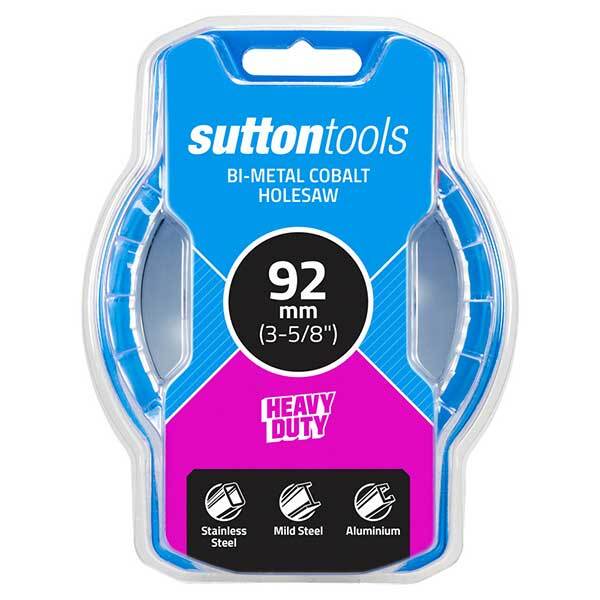

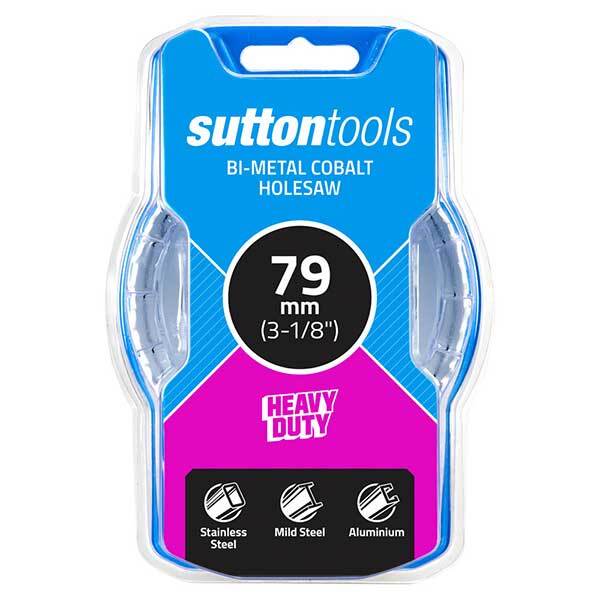

All hole saws are packed in a newly developed space saving hang pack, featuring clear dimensional markings making selection easy.
