Sutton H1280220 22mm (7/8") Carbide Tipped Holesaw - 60mm Cutting Depth
Available

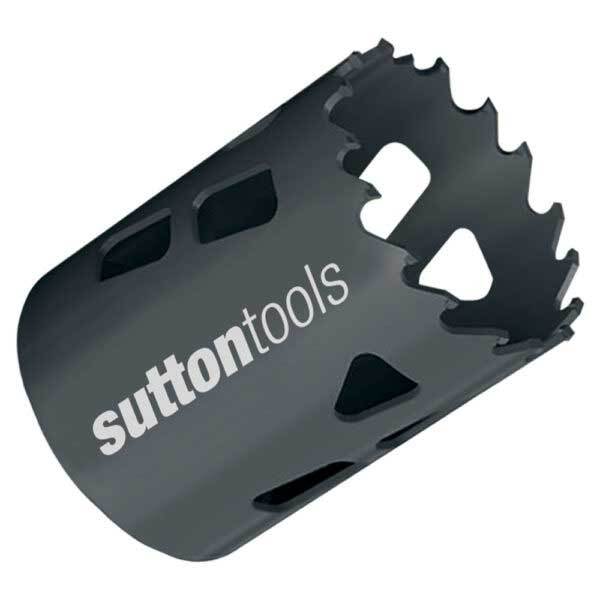

The Sutton H128 is a tungsten carbide tipped (TCT) holesaw in 18 sizes from 22 to 102 mm (7/8" to 4"), with a 60 mm cutting depth. It is used to cut wood and nails, mild steel, stainless, cast iron pipes, MDF, plasterboard, laminate, brick and plastic.
The tungsten carbide tip is designed to cut 10 times faster than conventional bi-metal holesaws in timber. The easy to use release slots are designed for swift and easy core ejection. The thread follows the international standard and accepts all arbors. Each size takes a BD26 pilot drill.
Where this product is used
- Cutting wood and nails, mild steel, stainless, cast iron pipes, MDF, plasterboard, laminate, brick and plastic.
- Applications include DIY, trade, electrical, plumbing, carpentry, general contracting and woodworking work.
Design features
- Tungsten carbide tipped: designed to cut 10 times faster than conventional bi-metal holesaws in timber.
- Easy to use release slots: for swift and easy core ejection.
- International thread standard: accepts all arbors.
Sizes and item numbers
Diameters are shown in mm and inches. Choose the arbor by the thread column (1/2" UNF or 5/8" UNF) and the arbor codes shown.
| Diameter (mm) | Diameter (inch) | Cutting depth (mm) | UNF thread | Arbor | Pilot drill | Sutton item no. |
|---|---|---|---|---|---|---|
| 22 | 7/8" | 60 | 1/2" | UA1 | BD26 | H128 0220 |
| 25 | 1" | 60 | 1/2" | UA1 | BD26 | H128 0250 |

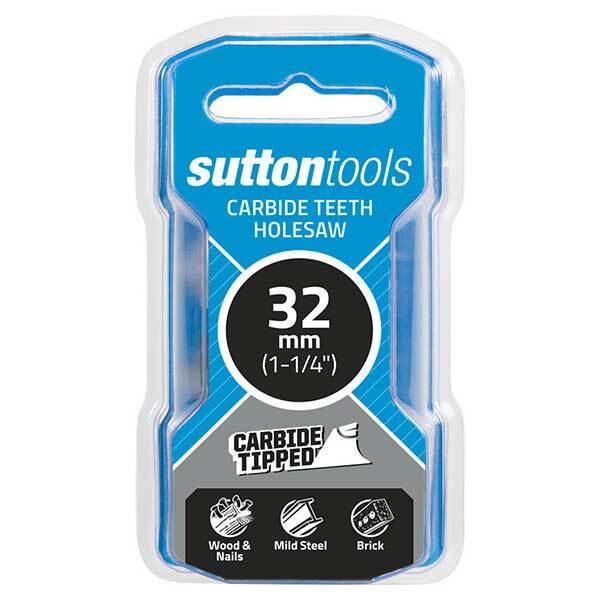

| 32 | 1-1/4" | 60 | 5/8" | UA2 or QFX | BD26 | H128 0320 |
| 35 | 1-3/8" | 60 | 5/8" | UA2 or QFX | BD26 | H128 0350 |

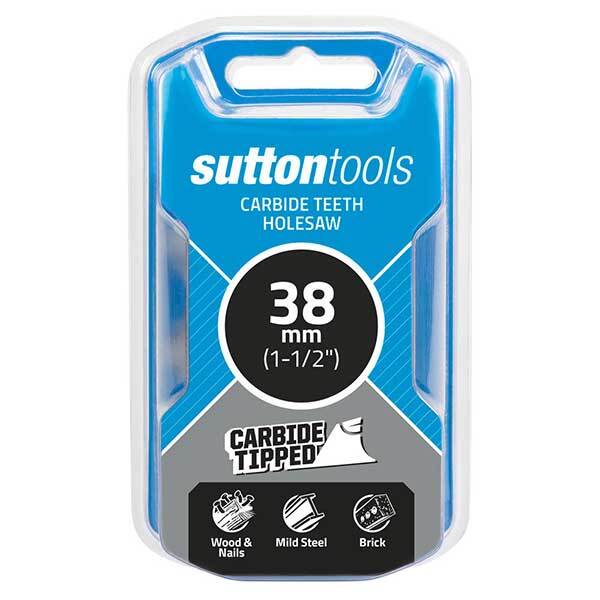

| 38 | 1-1/2" | 60 | 5/8" | UA2 or QFX | BD26 | H128 0380 |
| 41 | 1-5/8" | 60 | 5/8" | UA2 or QFX | BD26 | H128 0410 |

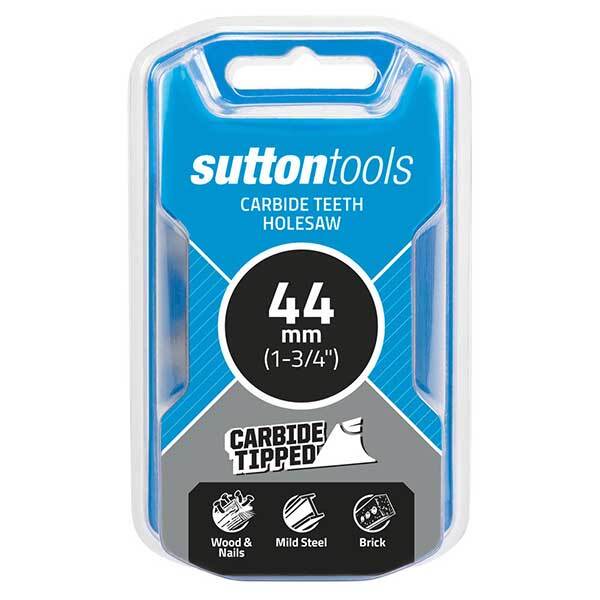

| 44 | 1-3/4" | 60 | 5/8" | UA2 or QFX | BD26 | H128 0440 |
| 51 | 2" | 60 | 5/8" | UA2 or QFX | BD26 | H128 0510 |

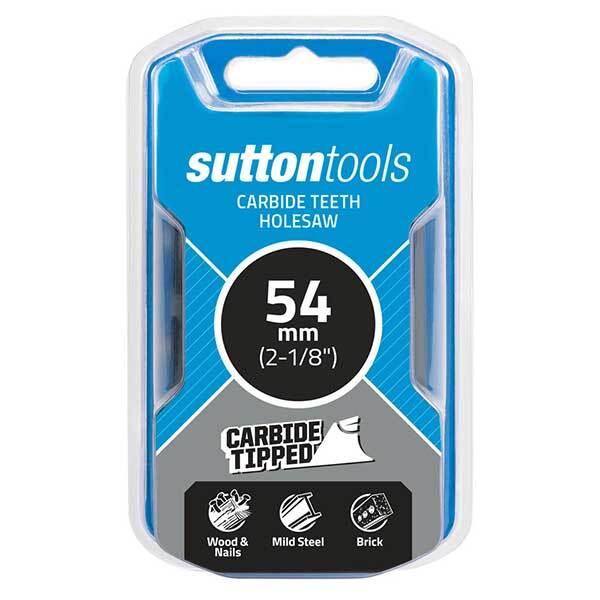

| 54 | 2-1/8" | 60 | 5/8" | UA2 or QFX | BD26 | H128 0540 |
| 57 | 2-1/4" | 60 | 5/8" | UA3 or QFX | BD26 | H128 0570 |
| 60 | 2-3/8" | 60 | 5/8" | UA3 or QFX | BD26 | H128 0600 |
| 65 | 2-9/16" | 60 | 5/8" | UA3 or QFX | BD26 | H128 0650 |

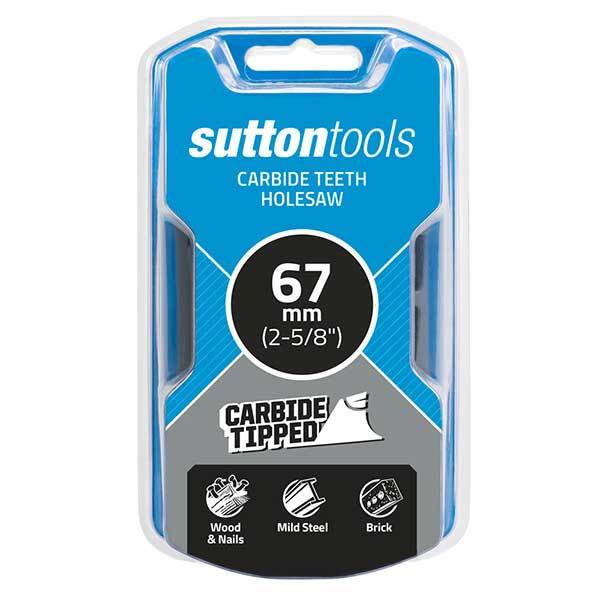

| 67 | 2-5/8" | 60 | 5/8" | UA3 or QFX | BD26 | H128 0670 |
| 70 | 2-3/4" | 60 | 5/8" | UA3 or QFX | BD26 | H128 0700 |
| 76 | 3" | 60 | 5/8" | UA3 or QFX | BD26 | H128 0760 |
| 89 | 3-1/2" | 60 | 5/8" | UA3 or QFX | BD26 | H128 0890 |

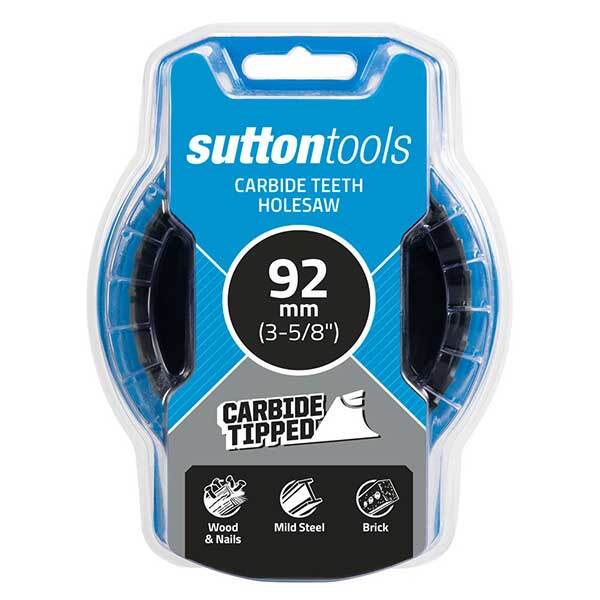

| 92 | 3-5/8" | 60 | 5/8" | UA3 or QFX | BD26 | H128 0920 |
| 102 | 4" | 60 | 5/8" | UA3 or QFX | BD26 | H128 1020 |
Choosing the arbor and pilot drill
Arbor and pilot drill by size: 22 to 25 mm: 1/2" UNF thread, arbor UA1; 32 to 54 mm: 5/8" UNF thread, arbor UA2 or QFX; 57 to 102 mm: 5/8" UNF thread, arbor UA3 or QFX. The pilot drill is BD26 for every size. Matching arbors in the store: H112 universal arbors (UA1, UA2, UA3) and H103 Quick Fit arbors (QFX). Pilot drills: H107 BD24 and H112 BD26.
Using the holesaw
- Fit the holesaw to an arbor that matches its UNF thread, and fit the pilot drill so it protrudes beyond the teeth to set the centre of the hole.
- Check the chuck is tight and the arbor runs true before starting the cut.
- Start at a low speed and keep the drill square to the work.
- Use the release slots to push the core out of the holesaw after the cut.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | H128 |
| Type | Carbide Tipped Holesaw |
| Diameter range | 22 to 102 mm (7/8" to 4") |
| Sizes | 18 sizes |
| Cutting depth | 60 mm |
| Material | Tungsten carbide tipped (TCT) |
| Thread | 1/2" UNF (up to 30 mm), 5/8" UNF (32 mm and larger) |
| Pilot drill | BD26 |
Related products
Related Sutton holesaws and accessories: H105 Ultra Cobalt bi-metal holesaws, H125 heavy duty bi-metal cobalt holesaws and H127 multi-purpose TCT holesaws. Quick release system: H122 quick release starter kit. Browse all holesaws and accessories.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
22
Model Number: H1280220
-
25
Model Number: H1280250
-
32
Model Number: H1280320
-
35

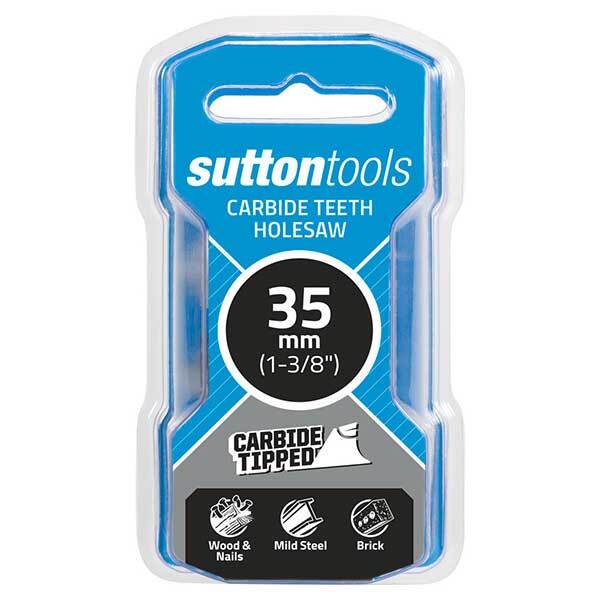

Model Number: H1280350
-
38
Model Number: H1280380
-
41

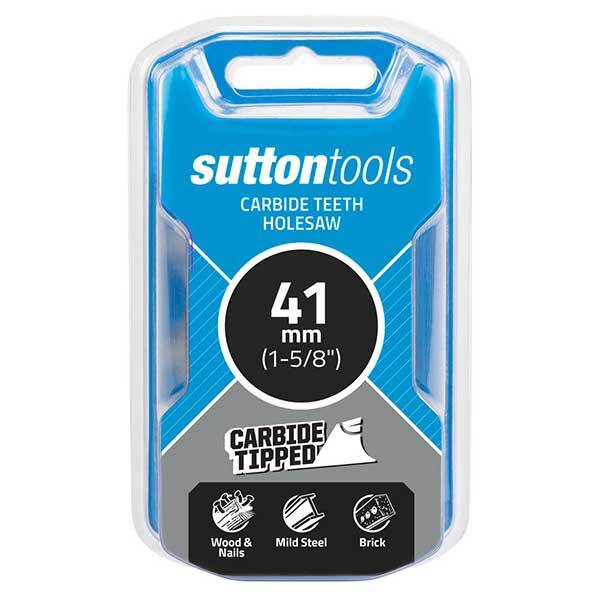

Model Number: H1280410
-
44
Model Number: H1280440
-
51
Model Number: H1280510
-
54
Model Number: H1280540
-
57

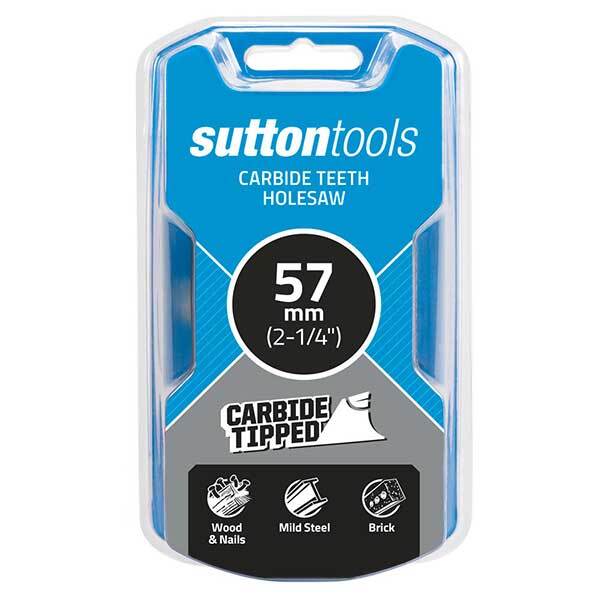

Model Number: H1280570
-
60

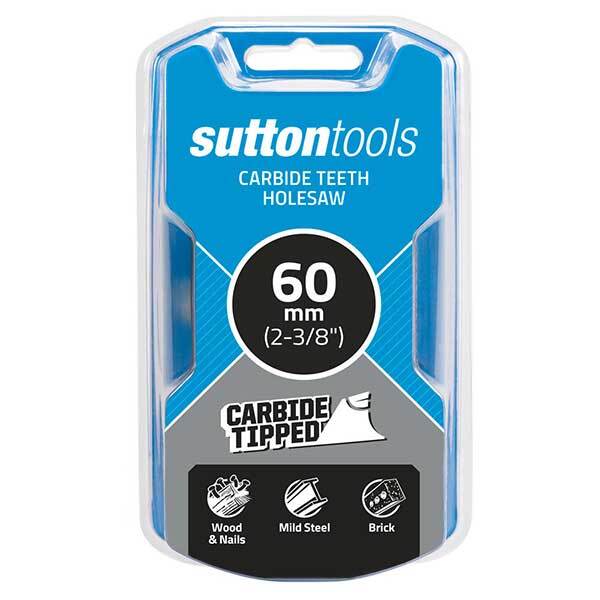

Model Number: H1280600
-
65
Model Number: H1280650
-
67
Model Number: H1280670
-
70

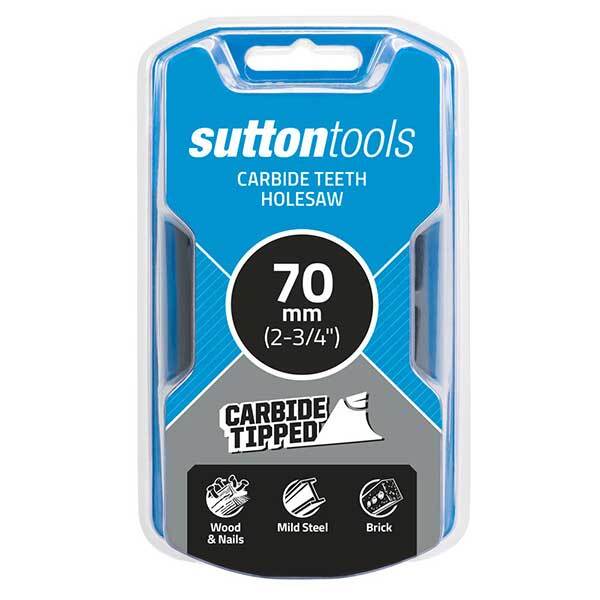

Model Number: H1280700
-
76

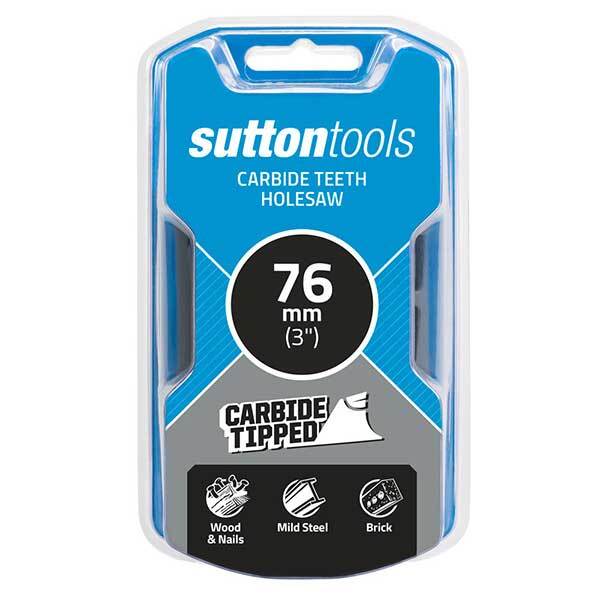

Model Number: H1280760
-
89

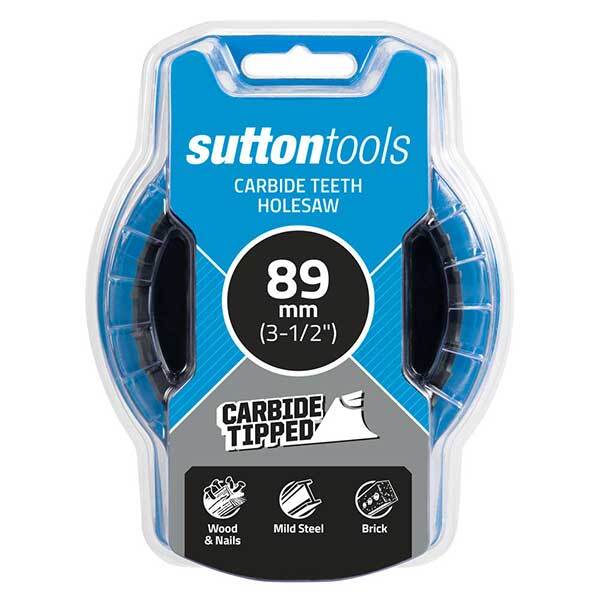

Model Number: H1280890
-
92
Model Number: H1280920
-
102

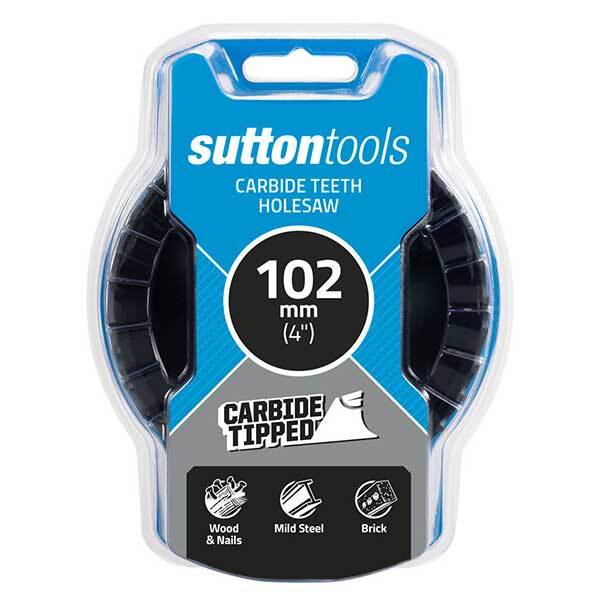

Model Number: H1281020
