Sutton D220 SMR5A XP Bullet Refill Kit - 5 Piece - Metric
Available
The Sutton D220 XP Bullet refill kits are trays of high speed steel (HSS) jobber drills in metric sizes, in two kits: SMR5A with 5 drills (1.5 to 3.5 mm in 0.5 mm steps) and SMR5B with 5 drills (1.5, 2.0, 3.0, 4.0 and 5.0 mm).
The XP Bullet has an Extreme Parabolic (XP) flute, which is designed to improve chip ejection and drilling speed. The drills have a bright finish and a 118° Form C point, and suit ferrous and non-ferrous metals, wood and plastic.
Where this product is used
- Drilling ferrous and non-ferrous metals, wood and plastic.
Design features
- Extreme Parabolic (XP) flute: designed to provide improved chip ejection and faster drilling speeds.
- High speed steel (HSS) drills with a bright finish.
- 118° Form C point.
Kits in this range
Each kit is supplied in a tray. Sizes are in millimetres.
| Sutton item no. | Pieces | Sizes | Case |
|---|---|---|---|

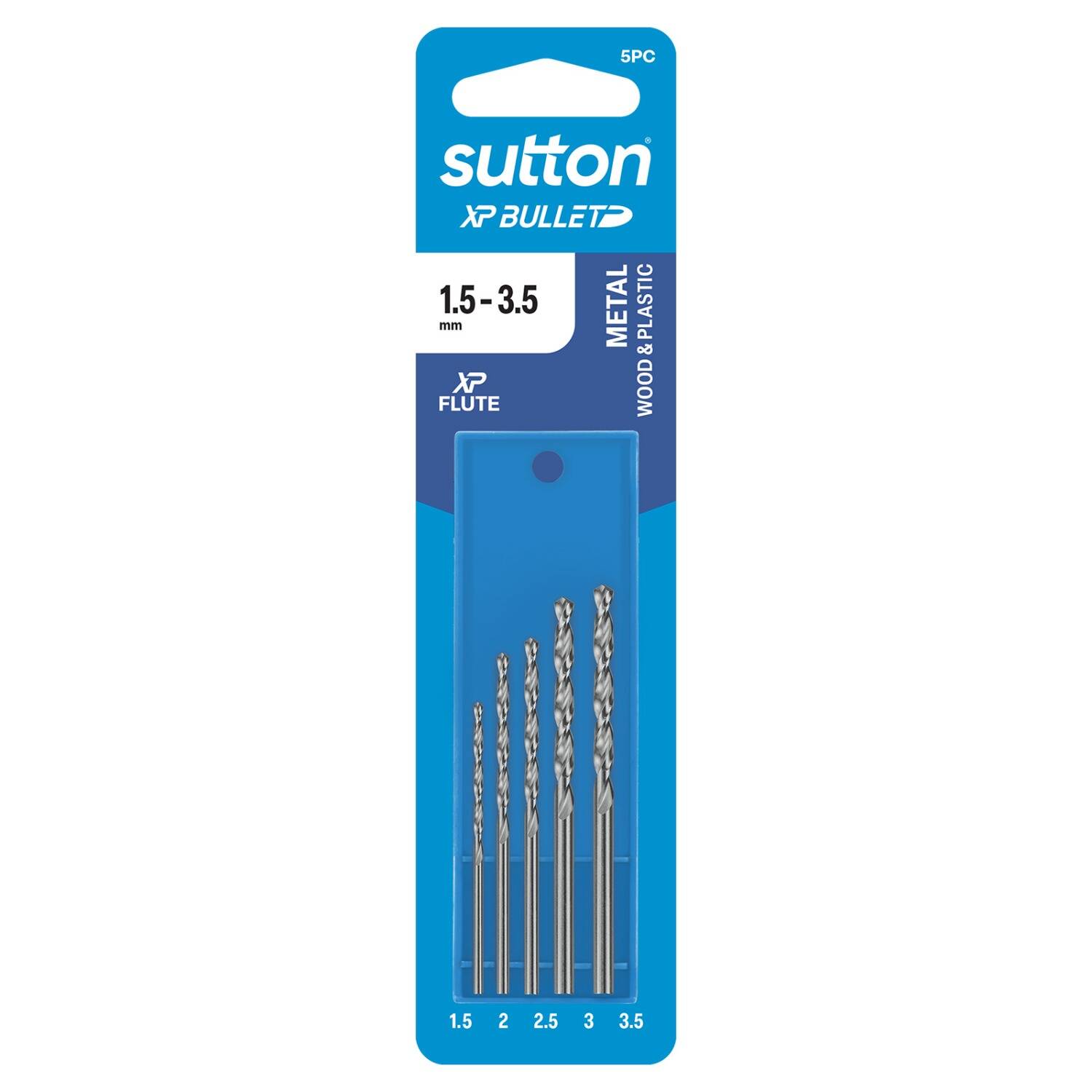

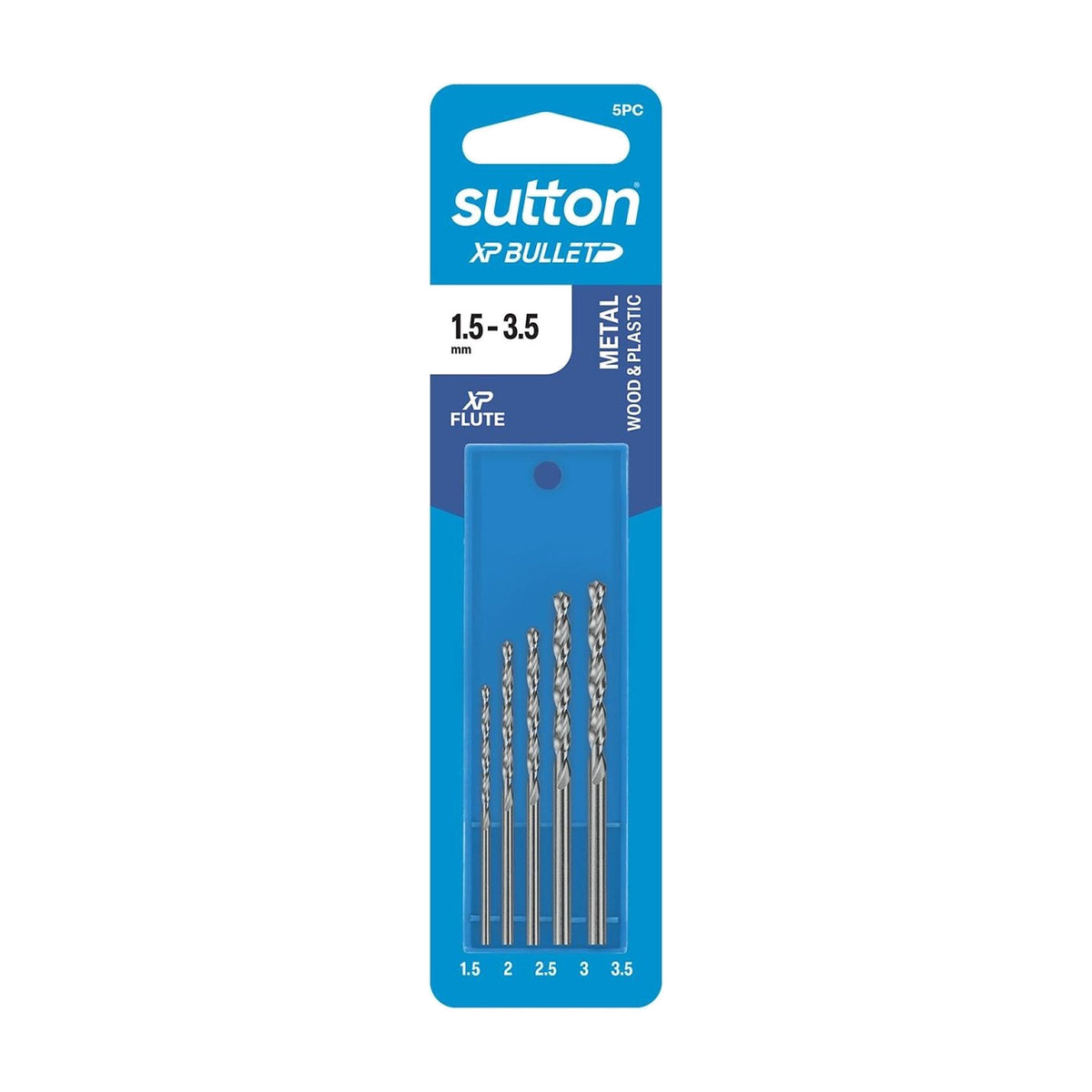

| D220 SMR5A | 5 | 1.5, 2.0, 2.5, 3.0 and 3.5 mm | Tray |

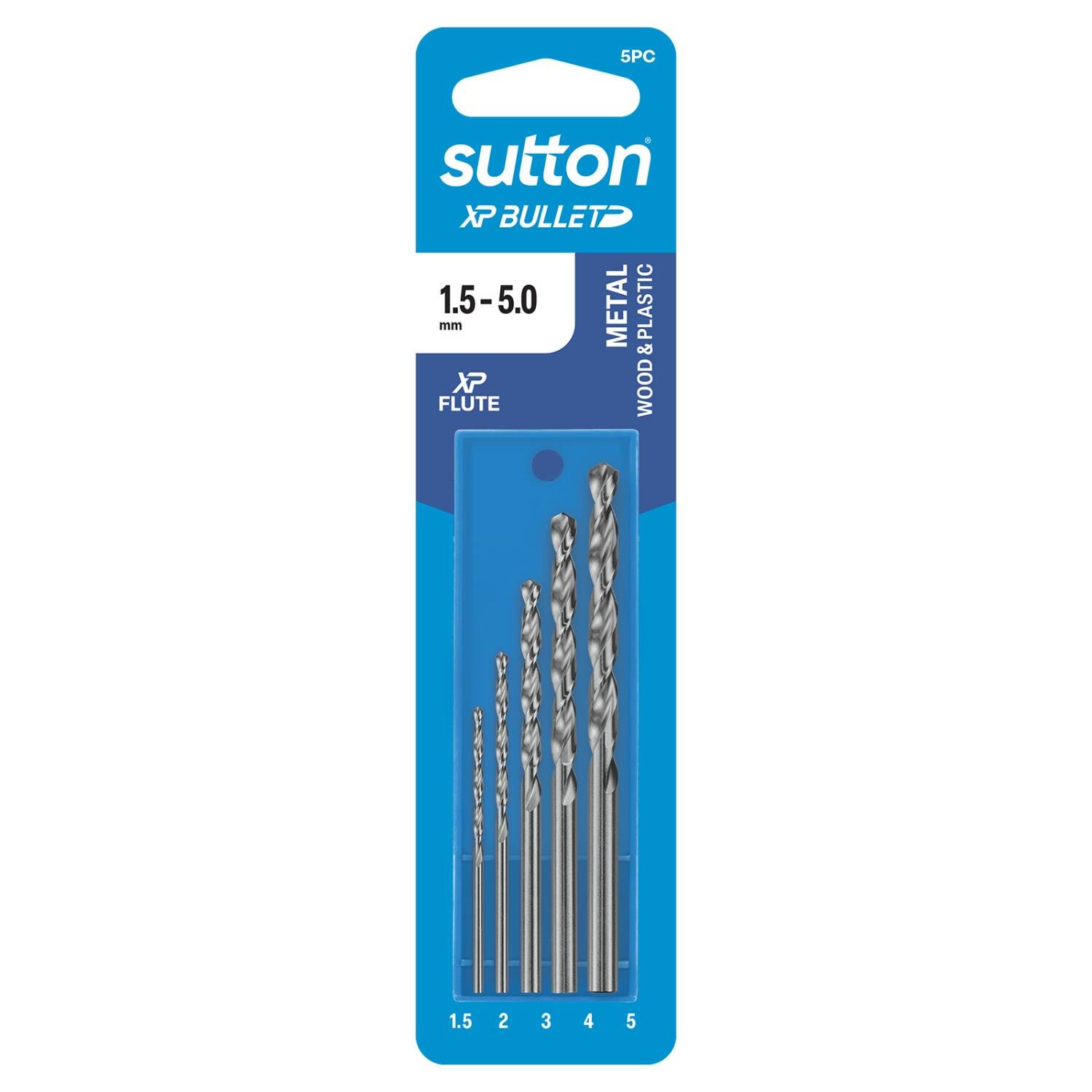

| D220 SMR5B | 5 | 1.5, 2.0, 3.0, 4.0 and 5.0 mm | Tray |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D220 |
| Range name | XP Bullet Refill Kits |
| Kits in this range | SMR5A (5 pieces), SMR5B (5 pieces) |
| Sizes | 1.5 to 5.0 mm |
| Material | HSS |
| Finish | Bright |
| Flute | Extreme Parabolic (XP) |
| Point | 118° Form C |
| Case | Tray |
Related drilling products
Individual drills: D220 XP Bullet jobber drill, metric. Imperial version: D220 XP Bullet imperial refill kits. Full sets: D220 XP Bullet metric drill sets. Browse all Metric Jobber Drill Sets and Imperial Jobber Drill Sets. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials.
