Sutton 1/16" D110 Long Series Drill Bit - Imperial - HSS
Available
This is the Sutton Long Series Drill Bit - ANSI B94-11 - HSS Imperial.
The Sutton D110 is a long-series drill in high speed steel with a 118° standard point and a precision-ground flute designed for fast chip removal.
It offers a longer flute and overall length than standard HSS drill bits, which permits deeper hole drilling and longer-reach applications.
This is the fractional-inch range: 29 sizes from 1/16 to 1/2 in, with flute lengths of 44 to 121 mm and overall lengths of 76 to 197 mm. Each size is shown with its fraction first and its millimetre equivalent. Working to a different size system? The same drill is also listed as a metric range. Every size in this range is supplied in a quantity of 1. Bulk packs are available on request, subject to lead times.
Where this product is used
- Deeper holes and longer-reach work than a standard-length drill allows.
- Steel, aluminium, wood and plastic, the materials this range is made for.
- Applications for the range include: DIY, trade, automotive, electrical, plumbing, carpentry, general contracting, woodworking, metalworking, machine shop and MRO work.
Design features
- Longer flute and overall length than standard HSS drill bits: permits deeper hole drilling and longer-reach applications.
- 118° standard point: a common point for general-purpose applications.
- Precision-ground flute: designed for fast chip removal.
Sizes and lengths

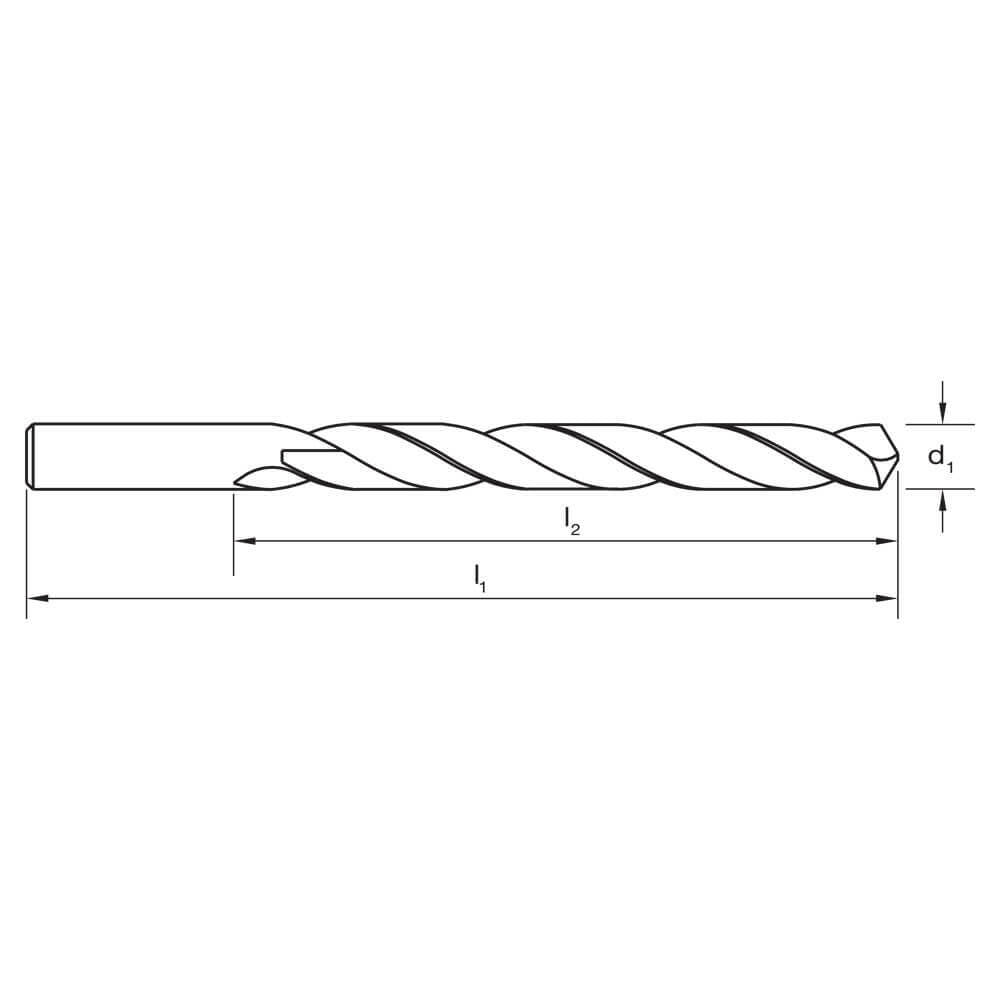

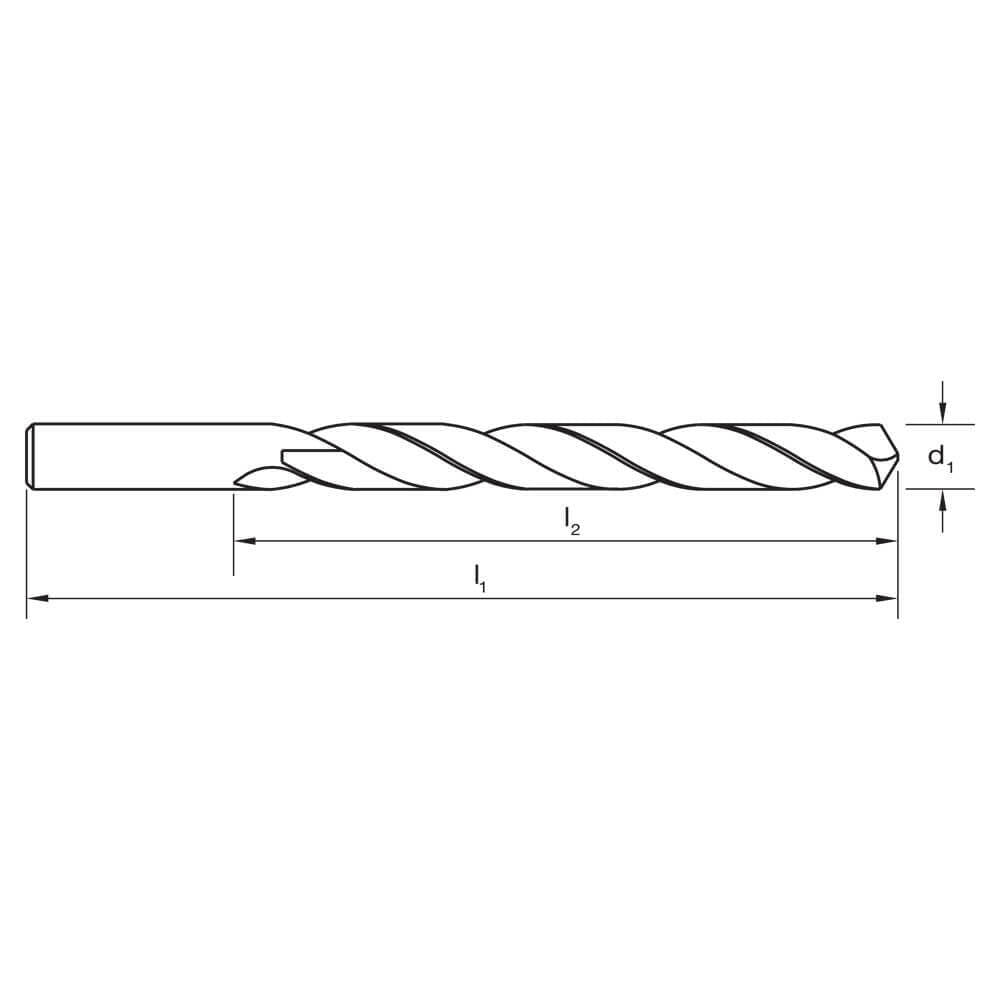

Diameters, overall lengths and flute lengths are shown below. Lengths are in millimetres.
| Diameter (inch) | Diameter (mm) | Overall length (mm) | Flute length (mm) | Sutton item no. |
|---|---|---|---|---|
| 1/16 | 1.59 | 76 | 44 | D110 0159 |

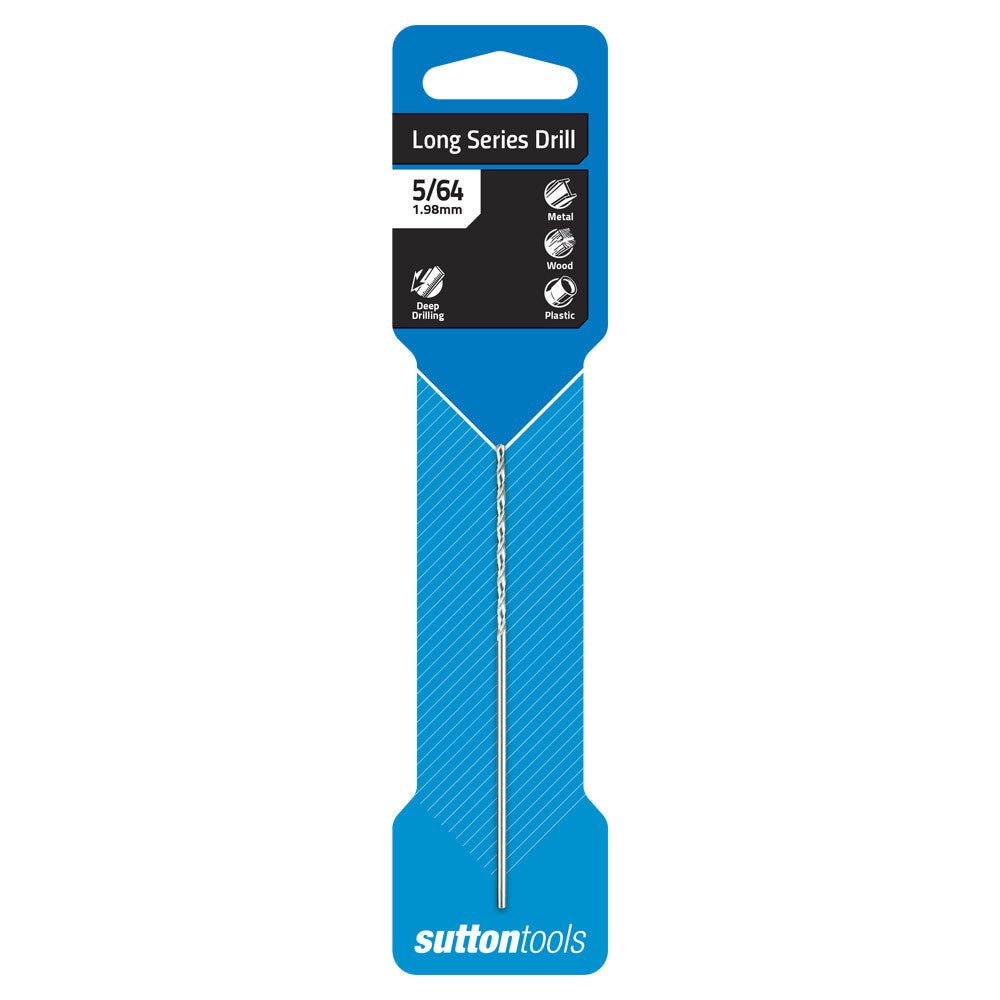

| 5/64 | 1.98 | 95 | 51 | D110 0198 |
| 3/32 | 2.38 | 117 | 57 | D110 0238 |
| 7/64 | 2.78 | 130 | 64 | D110 0278 |
| 1/8 | 3.18 | 137 | 70 | D110 0318 |

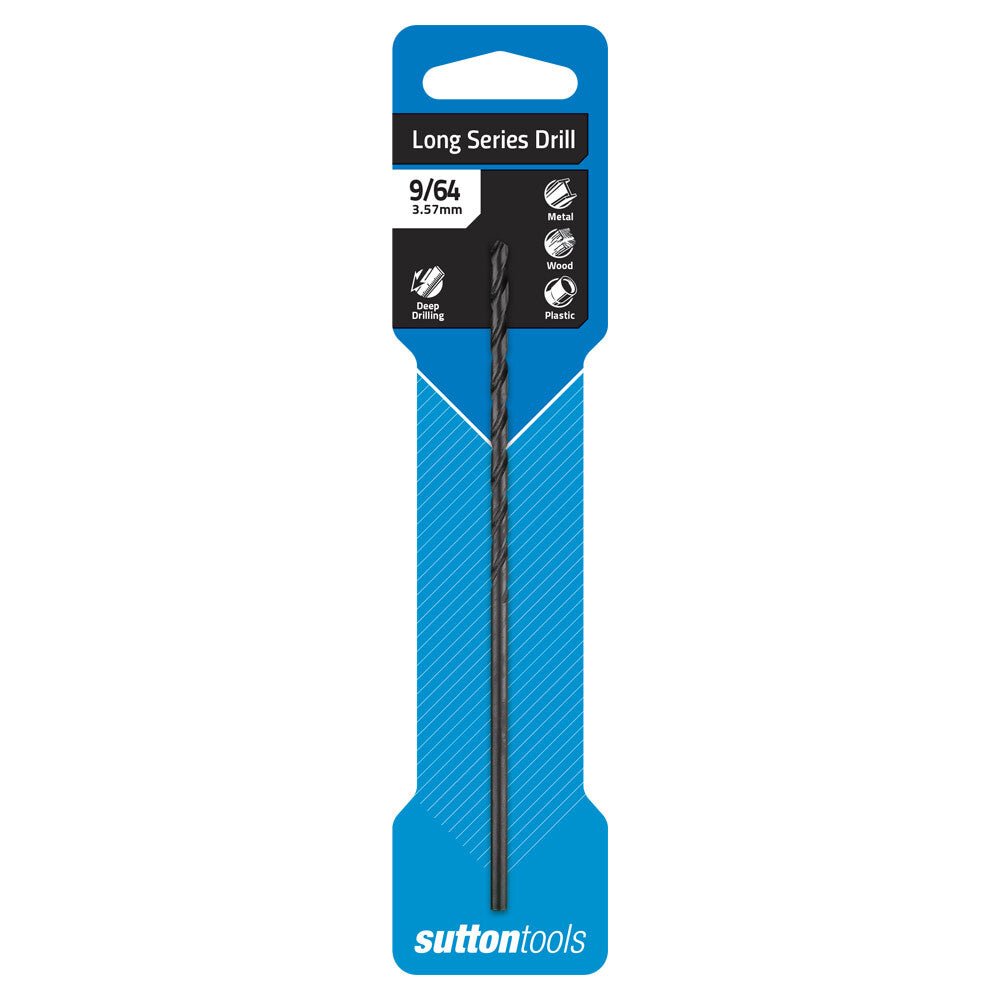

| 9/64 | 3.57 | 137 | 76 | D110 0357 |
| 5/32 | 3.97 | 137 | 76 | D110 0397 |
| 11/64 | 4.37 | 146 | 86 | D110 0437 |
| 3/16 | 4.76 | 152 | 92 | D110 0476 |

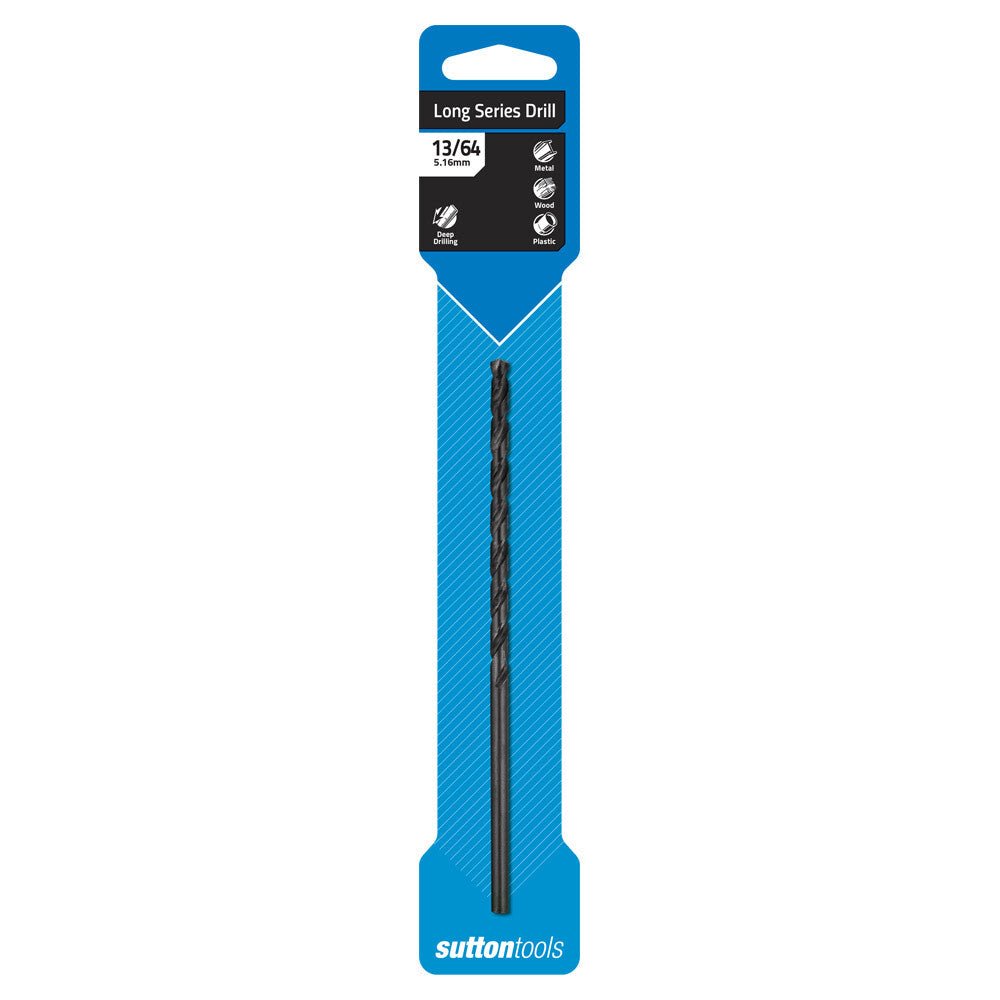

| 13/64 | 5.16 | 152 | 92 | D110 0516 |
| 7/32 | 5.56 | 152 | 92 | D110 0556 |
| 15/64 | 5.95 | 156 | 95 | D110 0595 |
| 1/4 | 6.35 | 156 | 95 | D110 0635 |
| 17/64 | 6.75 | 159 | 98 | D110 0676 |
| 9/32 | 7.14 | 159 | 98 | D110 0714 |
| 19/64 | 7.54 | 162 | 102 | D110 0754 |
| 5/16 | 7.94 | 162 | 102 | D110 0794 |
| 21/64 | 8.33 | 165 | 105 | D110 0833 |
| 11/32 | 8.73 | 165 | 105 | D110 0873 |

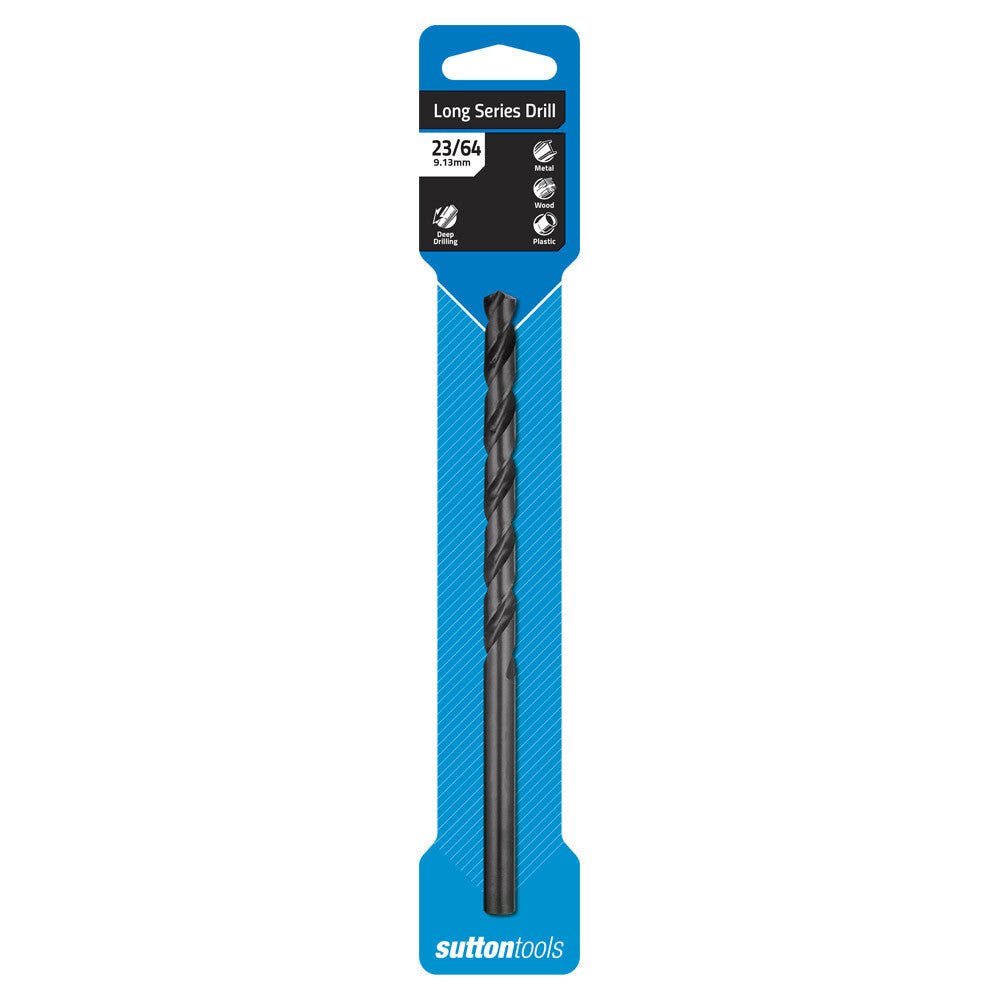

| 23/64 | 9.13 | 171 | 108 | D110 0913 |
| 3/8 | 9.52 | 171 | 108 | D110 0953 |
| 25/64 | 9.92 | 178 | 111 | D110 0992 |
| 13/32 | 10.32 | 178 | 111 | D110 1032 |
| 27/64 | 10.72 | 184 | 117 | D110 1072 |
| 7/16 | 11.11 | 184 | 117 | D110 1111 |

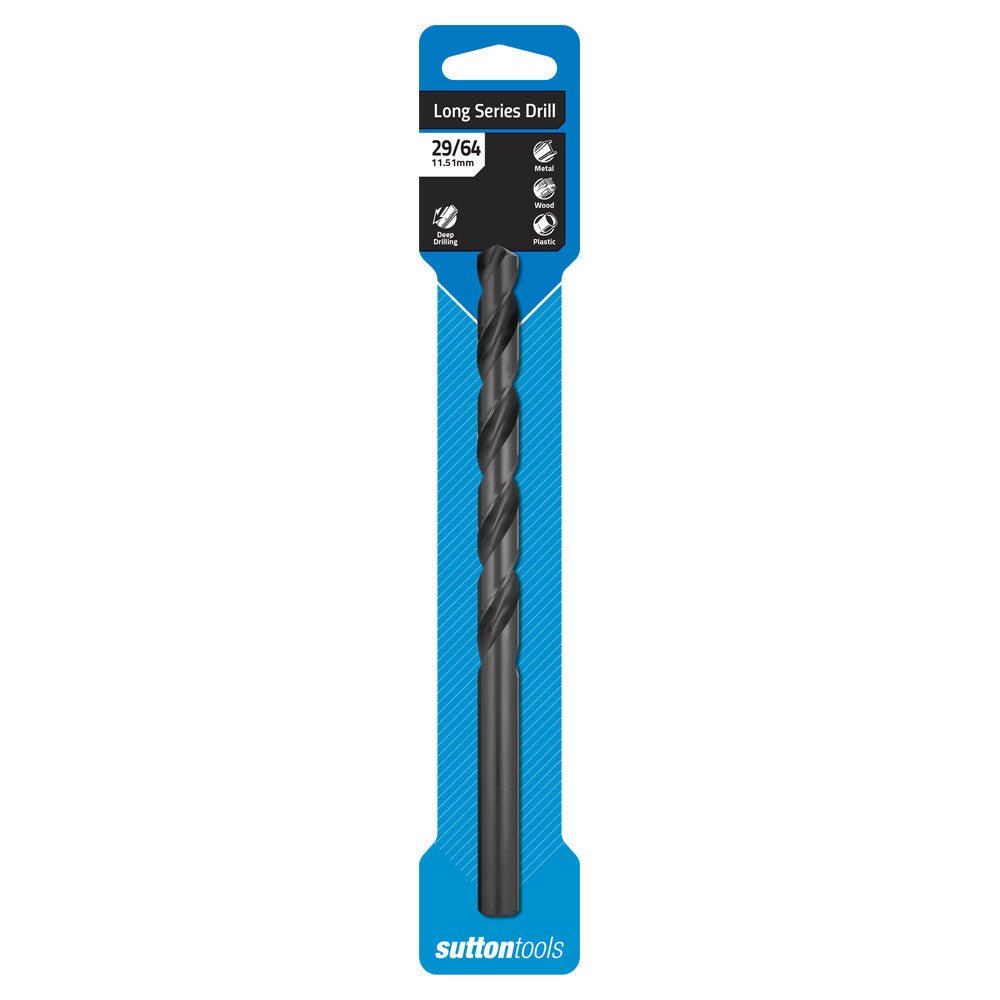

| 29/64 | 11.51 | 184 | 117 | D110 1151 |
| 15/32 | 11.91 | 184 | 117 | D110 1191 |

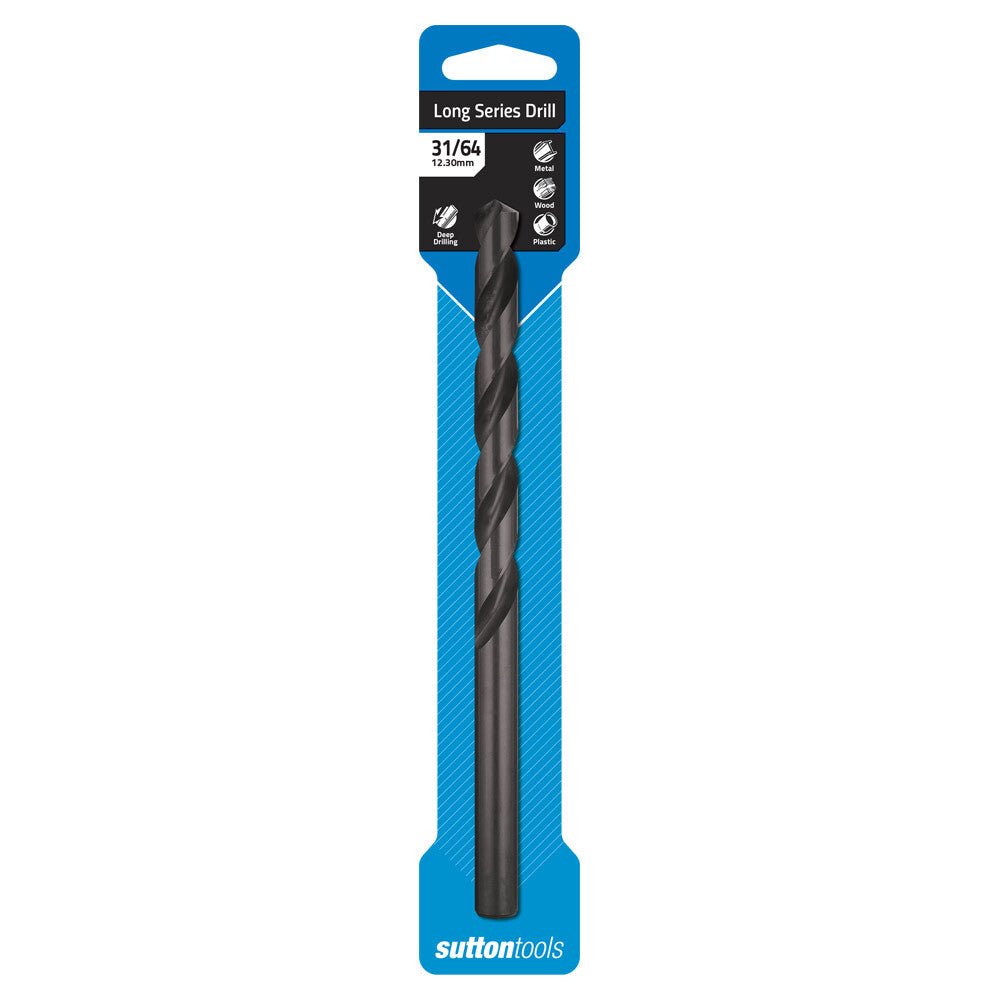

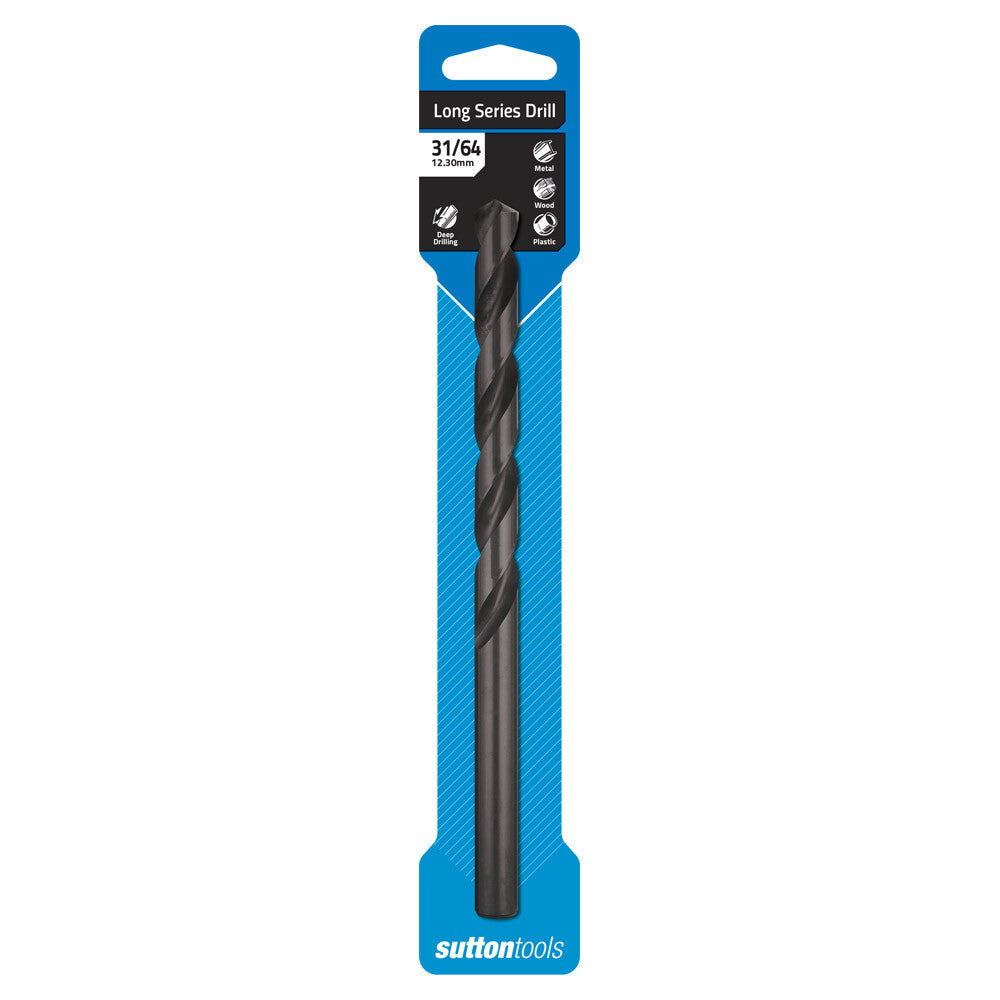

| 31/64 | 12.3 | 197 | 121 | D110 1231 |

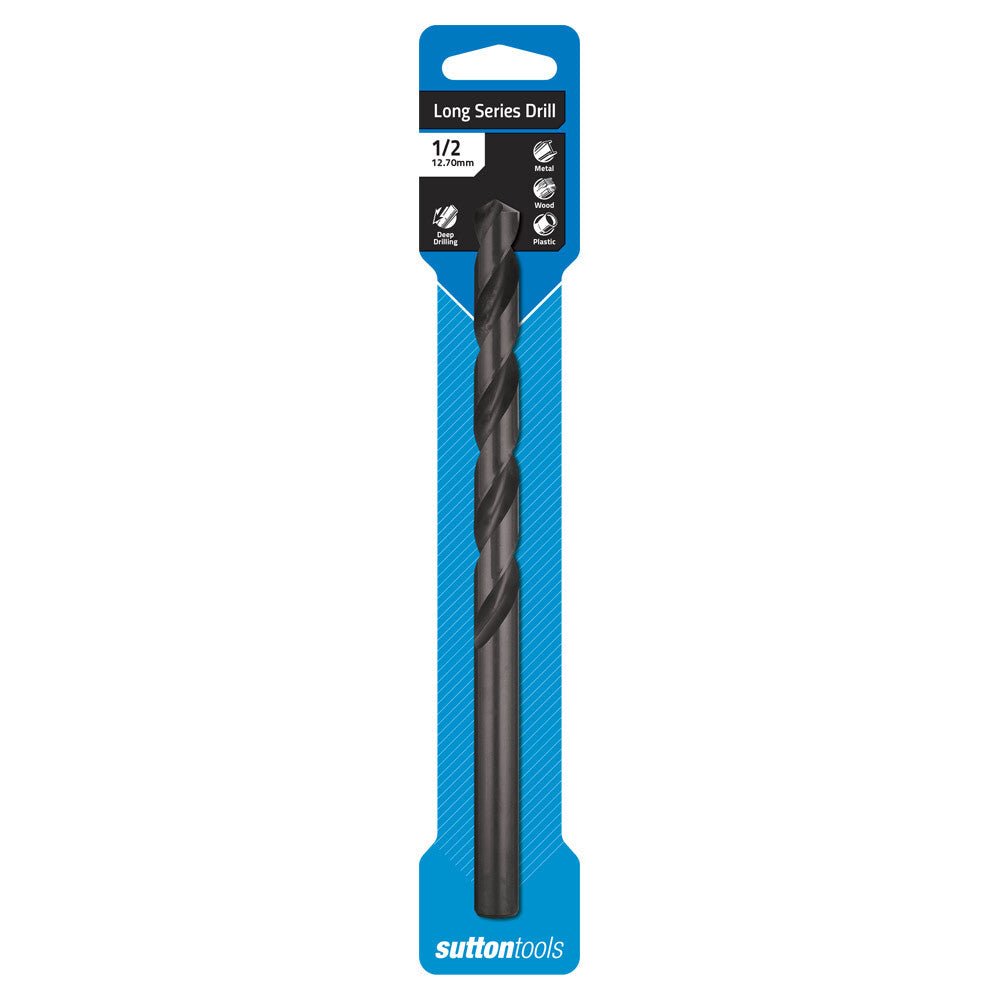

| 1/2 | 12.7 | 197 | 121 | D110 1269 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D110 |
| Range name | Long Series |
| Type | Long series |
| Material | High speed steel |
| Point | 118° standard point |
| Sizes in this range | 29 sizes, 1/16-1/2 in |
| Quantity per item | 1 |
Related drilling products
Compare other Sutton drills: D113 Blue Bullet long series, D101 Silver Bullet and D186 Blue Bullet stub. Browse all Long Drill Bits. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials, and the speeds and feeds chart and cutting tool troubleshooting guide cover speeds and common problems.
Product details
| Model | D1100159 |
|---|---|
| Diameter (inch) | 1/16" |
| Diameter (mm) | 1.59 |
| Flute Length (mm) | 44 |
| Overall Length (mm) | 76 |
| Pack Quantity | 1 |
