Sutton M1051000 M10 x 1.5 Metric Impact Tap - 1/4 in Hex Shank, Intermediate Lead
Available
The Sutton M105 impact taps in M10 and M12 are metric coarse impact taps with a 1/4 in hex shank for impact drivers, an intermediate lead and straight flutes, made from Tungsten Chrome Alloy (TCA). The drill is not included with these two sizes.
Designed for use in impact drivers for extremely fast tapping, around 3 seconds a hole and in excess of 20 times faster than hand tapping. Suitable for steel, aluminium, brass, cast iron, plastic and nylon. For general purpose and maintenance applications only: not suitable for precision, safety or critical threads. For tapping up to 1-1/2 x diameter. The tapping drill is not included with the M10 and M12 impact taps. Applications include DIY, trade, automotive, plumbing, metalworking and MRO work.
Where this product is used
- Fast tapping of through holes in steel, aluminium, brass, cast iron, plastic and nylon with an impact driver.
- General purpose and maintenance threading.
- Applications include DIY, trade, automotive, plumbing, metalworking and MRO work.
Design features
- Impact driver ready: 1/4 in hex shank, suitable for impact drivers.
- Fast tapping: designed to tap in around 3 seconds, in excess of 20 times faster than hand tapping.
- Intermediate lead with straight flutes: suited to through-hole tapping.
- Tungsten Chrome Alloy (TCA).
Sizes and item numbers
| Size | Pitch (mm) | Shank | Tapping drill | Sutton item no. |
|---|---|---|---|---|

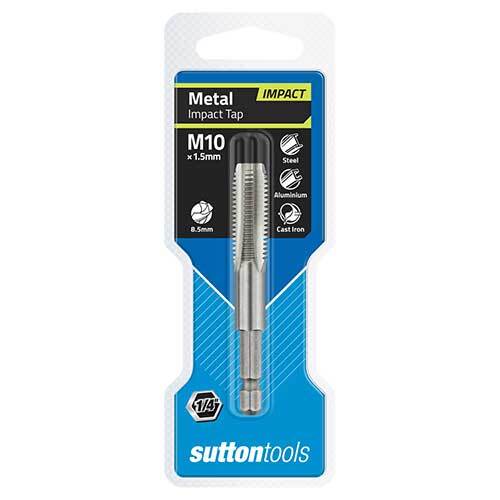

| M10 | 1.5 | 1/4 in | 8.5 mm (not included) | M105 1000 |

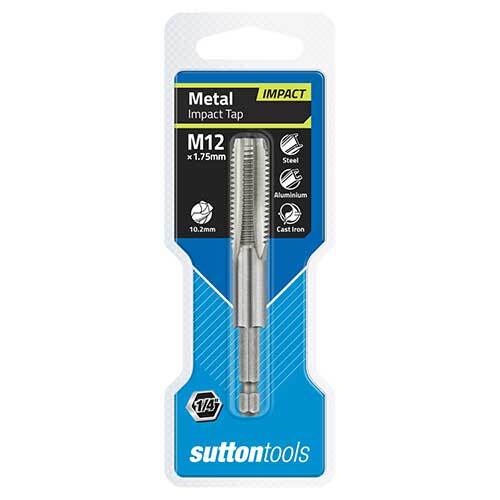

| M12 | 1.75 | 1/4 in | 10.2 mm (not included) | M105 1200 |
Using the impact tap
- Drill the tap drill size shown in the size table, then fit the tap in an impact driver with a 1/4 in hex chuck.
- Keep the tap square to the work and use a cutting fluid suited to the material.
- Use for general purpose and maintenance threads only, to a depth of up to 1-1/2 x the tap diameter.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | M105 (impact tap) |
| Thread form | Metric coarse (ISO) |
| Sizes | M10 to M12 |
| Shank | 1/4 in hex |
| Lead | Intermediate |
| Flute | Straight flute |
| Material | Tungsten Chrome Alloy (TCA) |
| Maximum tapping depth | 1-1/2 x diameter |
| Drill | Not included |
Related products
Related Sutton taps: M200 taper taps, M203 set of 3 and M105 impact tap and drill sets. Browse threading tools and threading dies and sets, or Tap Magic cutting fluids.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton M105 Metric Impact Tap M10-M12 - 1/4 in Hex Shank, Intermediate Lead: 1.5
SKU: A0131207 | Model: M1051000
Pitch Size (mm) 1.5. Sutton M105 Impact Tap - M
Sutton Tools Impact Taps are specifically developed for use with the high-torque output of an impact driver. Suitable for steel, aluminium, brass, cast iron, plastic, and nylon.
Impact taps are ideal for routine maintenance, repair work, and for rethreading where high accuracy and tolerance thread is not critical.
Tapping with an impact driver is approximately 20 times faster than hand tapping – only three seconds to tap a hole.
Not suitable for precision, safety, or critical threads.
For tapping up to 1-1/2 x diameter.
*Drill not included for sizes M10 & M12
