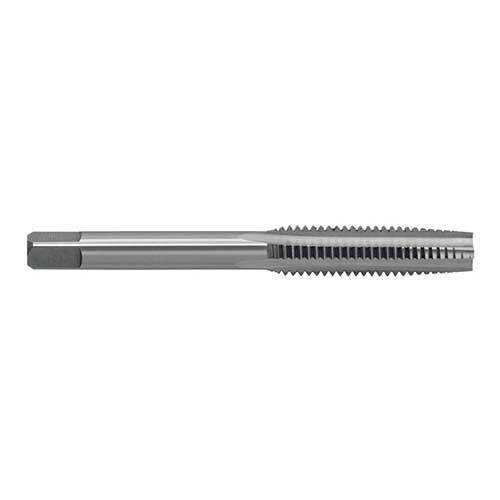

Sutton M2000200 M2 x 0.4 Metric Coarse Taper Hand Tap - Straight Flute, TCA
Available
The Sutton M200 is a metric coarse (ISO) taper hand tap in 24 sizes, M2 to M36, with a straight flute and a square shank, made from Tungsten Chrome Alloy (TCA), sold singly. A taper tap is used when the material is difficult to work (alloy steel) and is recommended for small diameter threads.

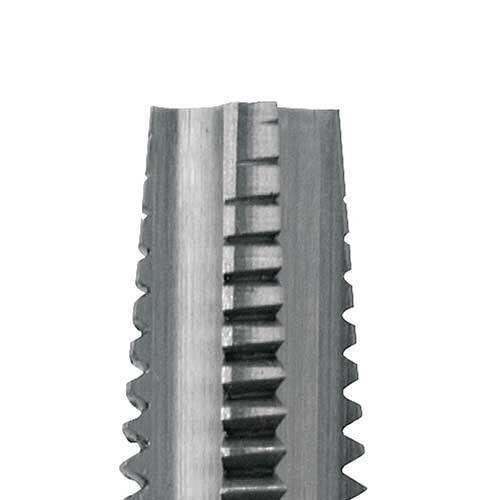

The square shank is designed for hard threading work in a variety of materials. Carbon taps are not suitable for precision, safety or critical threads. They are for general purpose and DIY use only. The straight flutes are designed for tapping into materials where chips break up readily and present no disposal problems, particularly in through-hole tapping. Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.
Where this product is used
- Routine maintenance, repair work and re-threading where high accuracy and tolerance thread is not critical.
- Tapping through holes in materials where chips break up readily.
- Applications include DIY, trade, automotive, plumbing, metalworking and MRO work.
Design features
- Tungsten Chrome Alloy (TCA): carbon taps for general purpose use.
- Square shank: for hard threading work in a variety of materials.
- Straight flutes: suited to through-hole tapping.
- Lead: A taper tap is used when the material is difficult to work (alloy steel) and is recommended for small diameter threads.
Sizes and item numbers
Tap drill is the drill size to use before tapping.
| Size | Pitch (mm) | Tap drill (mm) | Sutton item no. |
|---|---|---|---|
| M2 | 0.4 | 1.6 | M200 0200 |
| M2.5 | 0.45 | 2.05 | M200 0250 |
| M3 | 0.5 | 2.5 | M200 0300 |
| M3.5 | 0.6 | 2.9 | M200 0350 |
| M4 | 0.7 | 3.3 | M200 0400 |
| M4.5 | 0.75 | 3.7 | M200 0450 |
| M5 | 0.8 | 4.2 | M200 0500 |
| M6 | 1.0 | 5 | M200 0600 |
| M7 | 1.0 | 6 | M200 0700 |
| M8 | 1.25 | 6.8 | M200 0800 |
| M9 | 1.25 | 7.8 | M200 0900 |
| M10 | 1.5 | 8.5 | M200 1000 |
| M11 | 1.5 | 9.5 | M200 1100 |
| M12 | 1.75 | 10.2 | M200 1200 |
| M14 | 2.0 | 12 | M200 1400 |
| M16 | 2.0 | 14 | M200 1600 |
| M18 | 2.5 | 15.5 | M200 1800 |
| M20 | 2.5 | 17.5 | M200 2000 |
| M22 | 2.5 | 19.5 | M200 2200 |
| M24 | 3.0 | 21 | M200 2400 |
| M27 | 3.0 | 24 | M200 2700 |
| M30 | 3.5 | 26.5 | M200 3000 |
| M33 | 3.5 | 29.5 | M200 3300 |
| M36 | 4.0 | 32 | M200 3600 |
Using the tap
- Drill the tap drill size shown in the size table for the thread you are cutting, then start the tap square to the hole.
- Turn the tap with a tap wrench on the square shank, backing off regularly to break the chip.
- Use a cutting fluid suited to the material being tapped.
- Use for hand tapping only, to a depth of up to 1-1/2 x the tap diameter.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | M200 |
| Thread form | Metric coarse (ISO) |
| Sizes | 24 sizes, M2 to M36 |
| Lead | Taper |
| Flute | Straight flute |
| Shank | Square shank |
| Material | Tungsten Chrome Alloy (TCA) |
| Maximum tapping depth | 1-1/2 x diameter (hand operation only) |
| Pack | Sold singly |
Related products
Related Sutton taps: M100 taper taps, carded, M201 intermediate taps, M202 bottoming taps, M203 set of 3 and M204 metric fine taper taps. Browse threading tools and threading dies and sets, or Tap Magic cutting fluids.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton M200 Metric Coarse Taper Hand Tap M2-M36 - Straight Flute, Tungsten Chrome Alloy (TCA): M2 x 0.4
SKU: A0131209 | Model: M2000200
Tap Size M2 x 0.4. Sutton M200 Hand Tap - M - Taper
Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work, and for rethreading where high accuracy and tolerance thread is not critical.
Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.
