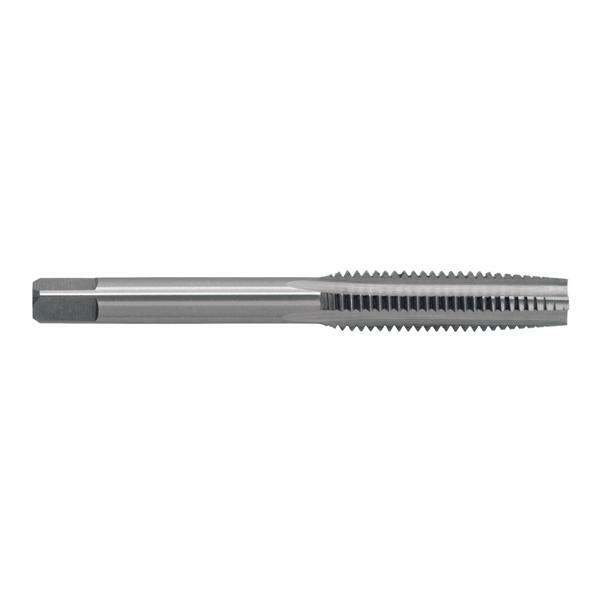

Sutton M2041406 Metric MF14 x 1.25 Hand Tap - Taper - Tungsten Chrome
Sutton M2041407 Metric MF14 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2041607 Metric MF16 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2041807 Metric MF18 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2042007 Metric MF20 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2042207 Metric MF22 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2042408 Metric Fine MF24 x 2 Hand Tap - Taper - Tungsten Chrome
Sutton M2042507 Metric MF25 x n/a Hand Tap - Taper - Tungsten Chrome
Sutton M2043207 Metric MF32 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2044007 Metric MF40 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2045007 Metric MF50 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M204 Metric Fine Hand Tap - Taper - Tungsten Chrome 1
Sutton M204 Metric Fine Hand Tap - Taper - Tungsten Chrome 2
Sutton M2041005 Metric Fine MF10 x 1 Hand Tap - Taper - Tungsten Chrome
Sutton M2041006 Metric MF10 x 1.25 Hand Tap - Taper - Tungsten Chrome
Sutton M2041206 Metric MF12 x 1.25 Hand Tap - Taper - Tungsten Chrome
Sutton M2041207 Metric MF12 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2041406 Metric MF14 x 1.25 Hand Tap - Taper - Tungsten Chrome
Sutton M2041407 Metric MF14 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2041607 Metric MF16 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2041807 Metric MF18 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2042007 Metric MF20 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2042207 Metric MF22 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2042408 Metric Fine MF24 x 2 Hand Tap - Taper - Tungsten Chrome
Sutton M2042507 Metric MF25 x n/a Hand Tap - Taper - Tungsten Chrome
Sutton M2043207 Metric MF32 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2044007 Metric MF40 x 1.5 Hand Tap - Taper - Tungsten Chrome
Sutton M2045007 Metric MF50 x 1.5 Hand Tap - Taper - Tungsten Chrome

Sutton M204 Metric Fine Hand Tap - Taper - Tungsten Chrome

Sutton M204 Metric Fine Hand Tap - Taper - Tungsten Chrome

SKU: A0011053

$20.33
$20.33
Inc. GST
Buy It Now

Available

The Sutton M204 Metric Fine Hand Tap by Sutton Tools is a 0 made from Tungsten Chrome Alloy. It offers Max Cut Depth 1.5xD and is suitable for through hole tapping.

Resources

Descriptions

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.

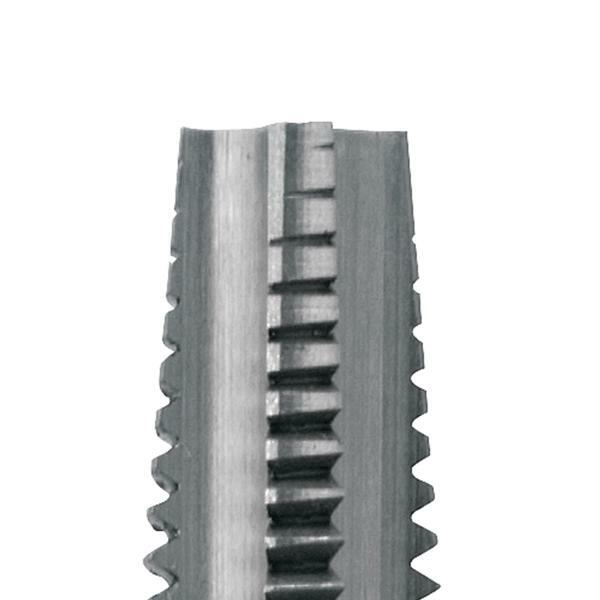

  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
  • Taper lead: for starting a thread prior to using an intermediate or bottoming lead tap
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Straight Flute
  • Thread Form: ISO Metric Fine (MF)
  • Lead: Taper
  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Straight Flute
  • Thread Form: ISO Metric Fine (MF)
  • Lead: Taper
