Sutton M220 UNF Hand Tap - Taper - Tungsten Chrome 1

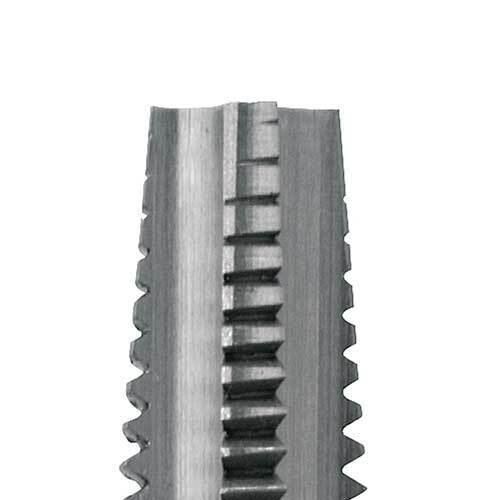

Sutton M220 UNF Hand Tap - Taper - Tungsten Chrome 2

Sutton M2200635 UNF 1/4 x 28 Hand Tap - Taper - Tungsten Chrome

Sutton M2200794 UNF 5/16 x 24 Hand Tap - Taper - Tungsten Chrome

Sutton M2200953 UNF 3/8 x 24 Hand Tap - Taper - Tungsten Chrome

Sutton M2201111 UNF 7/16 x 20 Hand Tap - Taper - Tungsten Chrome

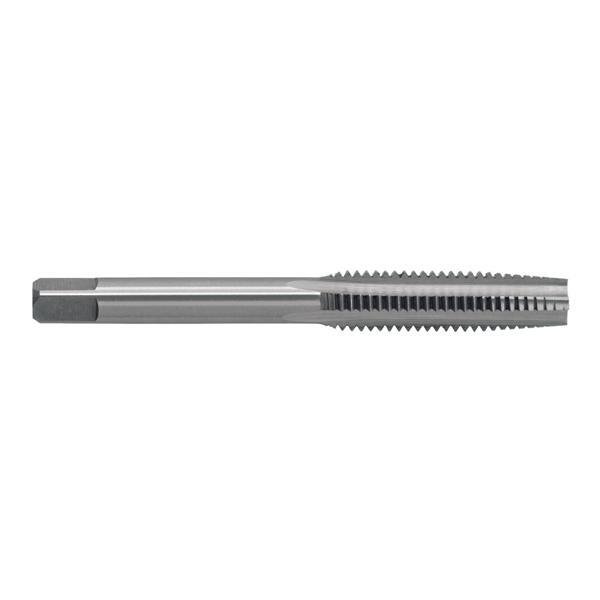

Sutton M2201270 UNF 1/2 x 20 Hand Tap - Taper - Tungsten Chrome

Sutton M2201429 UNF 9/16 x 18 Hand Tap - Taper - Tungsten Chrome

Sutton M2201588 UNF 5/8 x 18 Hand Tap - Taper - Tungsten Chrome

Sutton M2201905 UNF 3/4 x 16 Hand Tap - Taper - Tungsten Chrome

Sutton M2202223 UNF 7/8 x 14 Hand Tap - Taper - Tungsten Chrome

Sutton M2202540 UNF 1 x 12 Hand Tap - Taper - Tungsten Chrome

Sutton M2202541 UNF 1 x 14 Hand Tap - Taper - Tungsten Chrome

Sutton M2202858 UNF 1 1/8 x 12 Hand Tap - Taper - Tungsten Chrome

Sutton M2203175 UNF 1 1/4 x 12 Hand Tap - Taper - Tungsten Chrome

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Tungsten Chrome Alloy (TCA)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Square Shank
X: als
Type: Straight Flute
Thread Form: UNF
Lead: Taper

Features & Benefits +

Features

Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
Taper lead: for starting a thread prior to using an intermediate or bottoming lead tap
Square shank for use with a suitable tap wrench to drive the tap
Made from tungsten chrome alloy
Bright finish for general purpose applications, non-ferrous metals & plastics

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton M220 UNF Hand Tap - Taper - Tungsten Chrome

SKU: A0011193

Type: Hand Tap

$49.35

$49.35 ~~$70.51~~

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton UNF Hand Tap

📐M220 Metric Thread

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑Australian Made Quality

Available

Product Highlights −

Descriptions

Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.
