Sutton M222 UNF Hand Tap - Bottoming - Tungsten Chrome 1

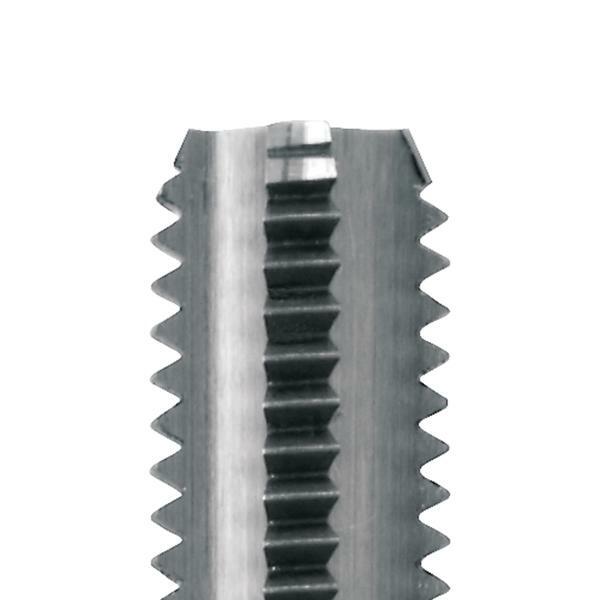

Sutton M222 UNF Hand Tap - Bottoming - Tungsten Chrome 2

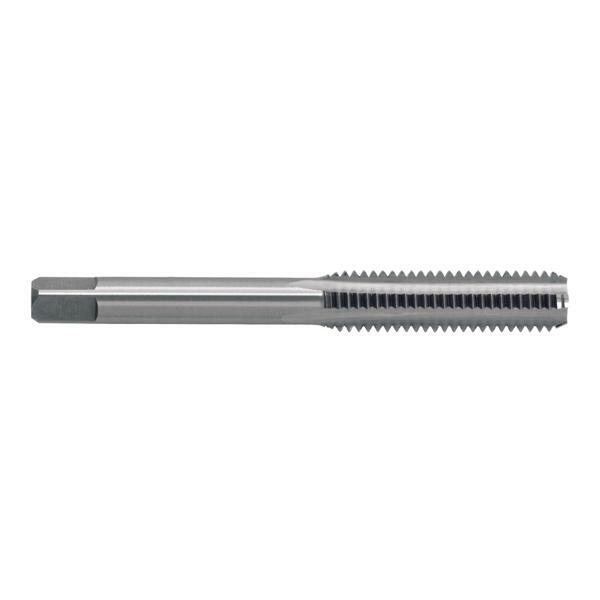

Sutton M2220635 UNF 1/4 x 28 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2220794 UNF 5/16 x 24 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2220953 UNF 3/8 x 24 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2221111 UNF 7/16 x 20 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2221270 UNF 1/2 x 20 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2221429 UNF 9/16 x 18 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2221588 UNF 5/8 x 18 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2221905 UNF 3/4 x 16 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2222223 UNF 7/8 x 14 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2222540 UNF 1 x 12 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2222541 UNF 1 x 14 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2222858 UNF 1 1/8 x 12 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2223175 UNF 1 1/4 x 12 Hand Tap - Bottoming - Tungsten Chrome

Description +

Descriptions

Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Tungsten Chrome Alloy (TCA)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Square Shank
X: als
Type: Straight Flute
Thread Form: UNF
Lead: Bottoming

Features & Benefits +

Features

Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
Bottoming lead: used after a taper lead tap and are suitable for creating threads close to the bottom of blind holes
Square shank for use with a suitable tap wrench to drive the tap
Made from tungsten chrome alloy
Bright finish for general purpose applications, non-ferrous metals & plastics

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton M222 UNF Hand Tap - Bottoming - Tungsten Chrome

SKU: A0011231

$65.73

Inc. GST

Buy It Now

Available

The Sutton M222 UNF Hand Tap by Sutton Tools is a 0 made from Tungsten Chrome Alloy with a square shank for use with a suitable tap wrench. It provides tapping up to 1-1/2 x diameter and is for general purpose applications in non-ferrous metals and plastics.
