Sutton M242 BSPF Hand Tap - Bottoming - Tungsten Chrome 1

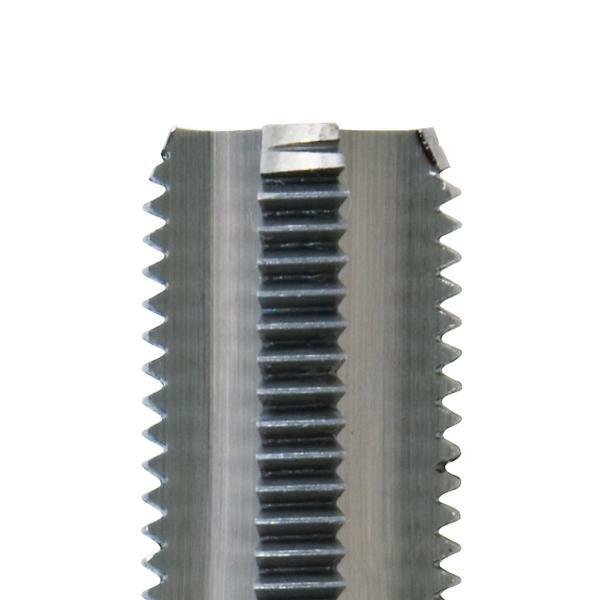

Sutton M242 BSPF Hand Tap - Bottoming - Tungsten Chrome 2

Sutton M2420973 BSPF 1/8 x 28 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2421316 BSPF 1/4 x 19 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2421666 BSPF 3/8 x 19 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2422096 BSPF 1/2 x 14 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2422291 BSPF 5/8 x 14 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2422644 BSPF 3/4 x 14 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2423325 BSPF 1 x 11 Hand Tap - Bottoming - Tungsten Chrome

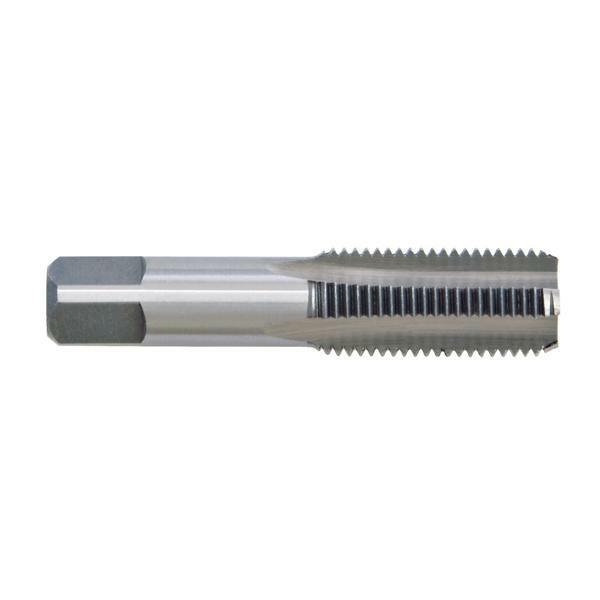

Sutton M2424191 BSPF 1 1/4 x 11 Hand Tap - Bottoming - Tungsten Chrome

Sutton M2425961 BSPF 2 x 11 Hand Tap - Bottoming - Tungsten Chrome

Description +

Descriptions

Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Tungsten Chrome Alloy (TCA)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Square Shank
X: als
Type: Straight Flute
Thread Form: ISO G Parallel Series 55¬∞ (G-BSPF)
Lead: Bottoming

Features & Benefits +

Features

Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
Bottoming lead: used after a taper lead tap and are suitable for creating threads close to the bottom of blind holes
Square shank for use with a suitable tap wrench to drive the tap
Made from tungsten chrome alloy
Bright finish for general purpose applications, non-ferrous metals & plastics

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton M242 BSPF Hand Tap - Bottoming - Tungsten Chrome

SKU: A0011451

$120.81

Inc. GST

Buy It Now

Available

The Sutton M242 BSPF Hand Tap by Sutton Tools is a 0 made from Tungsten Chrome Alloy with a square shank for a tap wrench. It offers tapping up to 1-1/2 x diameter and is suitable for through-hole tapping in non-ferrous metals.
