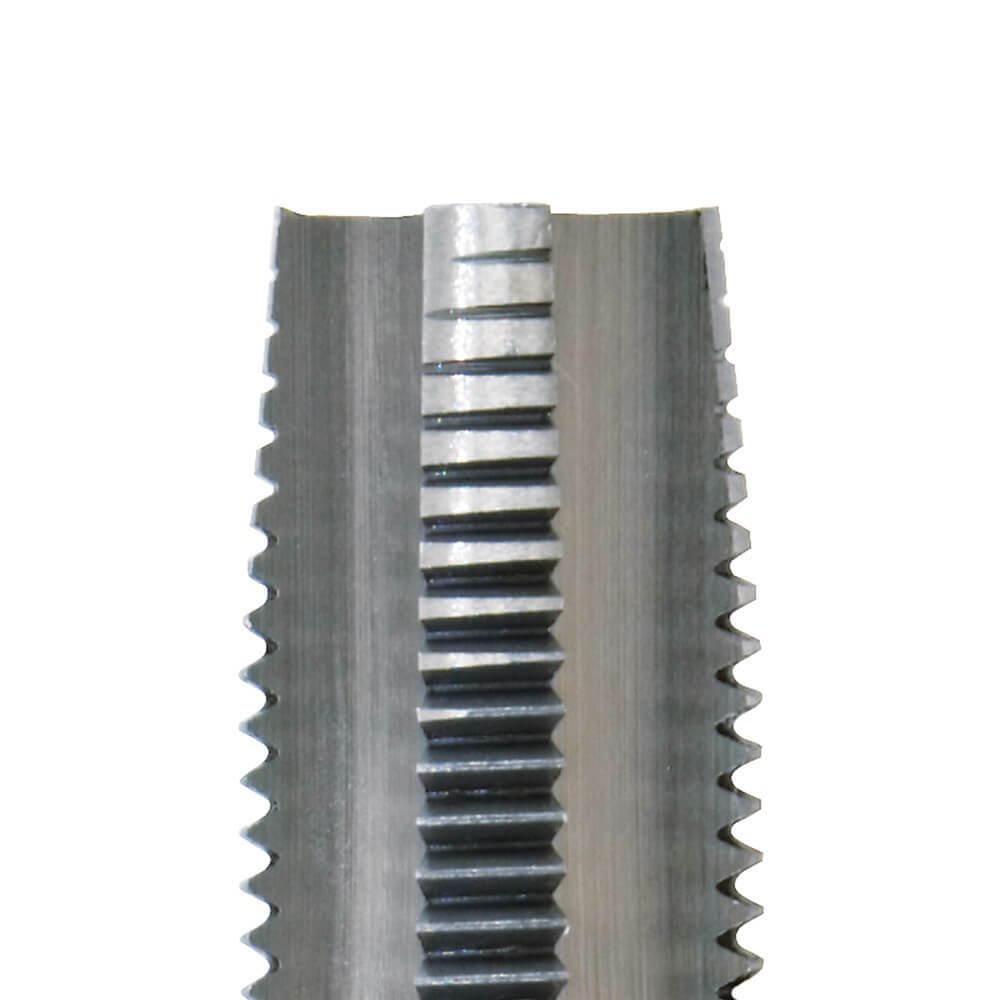

Sutton M240 G-BSPF Hand Tap - Taper - Tungsten Chrome 1

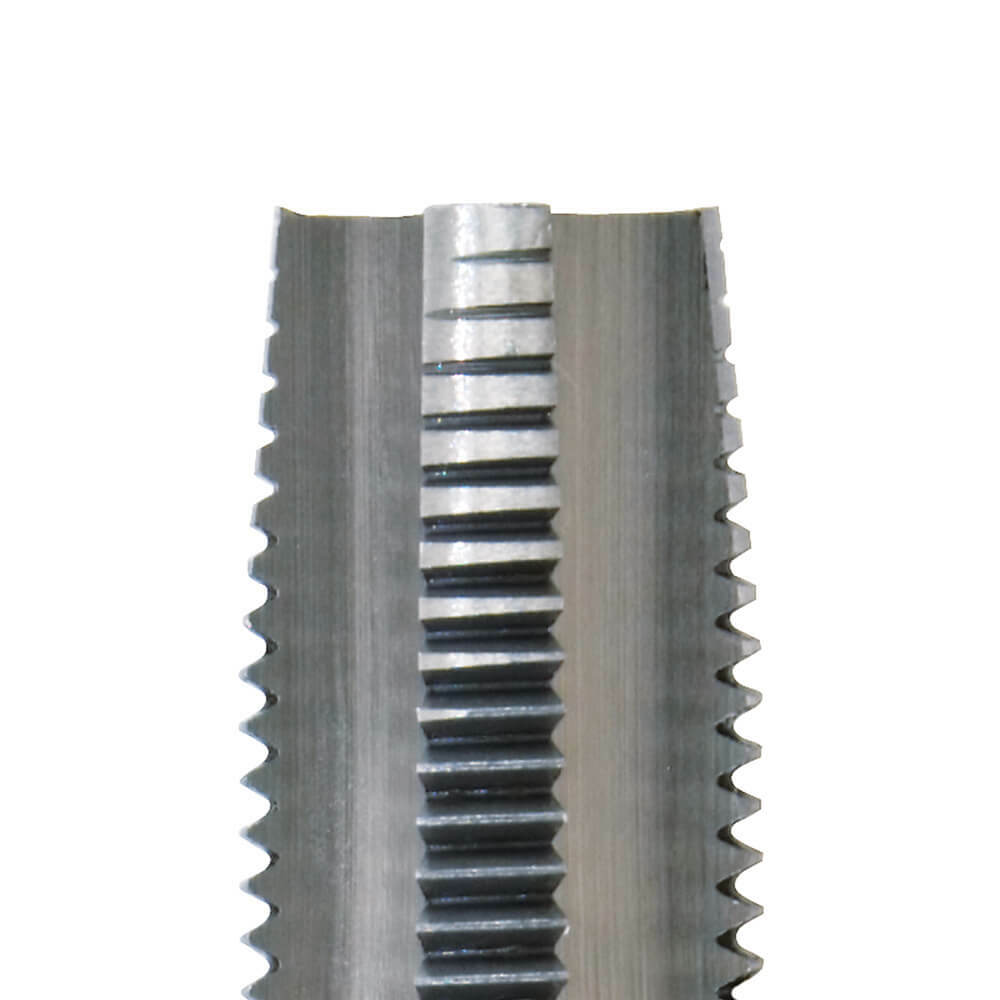

Sutton M240 G-BSPF Hand Tap - Taper - Tungsten Chrome 2

Sutton M2400973 G-BSPF 1/8 x 28 Hand Tap - Taper - Tungsten Chrome

Sutton M2401316 G-BSPF 1/4 x 19 Hand Tap - Taper - Tungsten Chrome

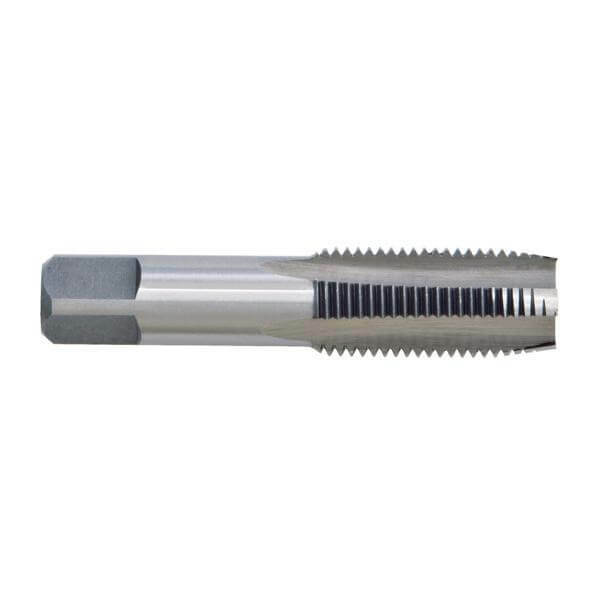

Sutton M2401666 G-BSPF 3/8 x 19 Hand Tap - Taper - Tungsten Chrome

Sutton M2402096 G-BSPF 1/2 x 14 Hand Tap - Taper - Tungsten Chrome

Sutton M2402291 G-BSPF 5/8 x 14 Hand Tap - Taper - Tungsten Chrome

Sutton M2402644 G-BSPF 3/4 x 14 Hand Tap - Taper - Tungsten Chrome

Sutton M2403325 G-BSPF 1 x 11 Hand Tap - Taper - Tungsten Chrome

Sutton M2404191 G-BSPF 1 1/4 x 11 Hand Tap - Taper - Tungsten Chrome

Sutton M2405961 G-BSPF 2 x 11 Hand Tap - Taper - Tungsten Chrome

Description +

Descriptions

Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Tungsten Chrome Alloy (TCA)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Square Shank
X: als
Type: Straight Flute
Thread Form: ISO G Parallel Series 55¬∞ (G-BSPF)
Lead: Taper

Features & Benefits +

Features

Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
Intermediate lead: used after a taper lead tap and are suitable for through holes or blind holes where the thread does not need to go right to the bottom of the hole
Square shank for use with a suitable tap wrench to drive the tap
Made from tungsten chrome alloy
Bright finish for general purpose applications, non-ferrous metals & plastics

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton M240 G-BSPF Hand Tap - Taper - Tungsten Chrome

SKU: A0011429

$120.81

Inc. GST

Buy It Now

Available

The Sutton M240 G-BSPF Hand Tap by Sutton Tools is a 0 made of Tungsten Chrome Alloy. It provides a 3.175 mm diameter and is suitable for through hole tapping.
