Sutton T173 UNF Spiral Point Tap - Premium HSS 1

Sutton T173 UNF Spiral Point Tap - Premium HSS 2

Sutton T1730218 UNF #2 x 64 Spiral Point Tap - HSSE V3

Sutton T1730284 UNF #4 x 48 Spiral Point Tap - HSSE V3

Sutton T1730351 UNF #6 x 40 Spiral Point Tap - HSSE V3

Sutton T1730417 UNF #8 x 36 Spiral Point Tap - HSSE V3

Sutton T1730483 UNF #10 x 32 Spiral Point Tap - HSSE V3

Sutton T1730635 UNF 1/4 x 28 Spiral Point Tap - HSSE V3

Sutton T1730794 UNF 5/16 x 24 Spiral Point Tap - HSSE V3

Sutton T1730953 UNF 3/8 x 24 Spiral Point Tap - HSSE V3

Sutton T1731111 UNF 7/16 x 20 Spiral Point Tap - HSSE V3

Sutton T1731270 UNF 1/2 x 20 Spiral Point Tap - HSSE V3

Sutton T1731429 UNF 9/16 x 18 Spiral Point Tap - HSSE V3

Sutton T1731588 UNF 5/8 x 18 Spiral Point Tap - HSSE V3

Sutton T1731905 UNF 3/4 x 16 Spiral Point Tap - HSSE V3

Sutton T1732223 UNF 7/8 x 14 Spiral Point Tap - HSSE V3

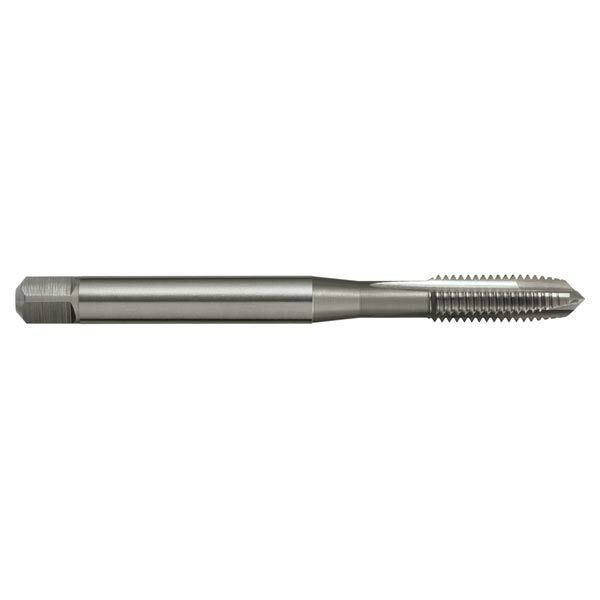

Sutton T1732540 UNF #1 x 12 Spiral Point Tap - HSSE V3

Description +

Dimensions

d1 (mm): 2.1844
d2 (mm): 2.8
l1 (mm): 45
l2 (mm): 9
l4 (mm): 5
Square Size (mm): 2.1
z: 2
Drill Size (mm): 1.9 (drill)
TPI: 64 (TPI)

Features

General purpose use, materials up to approx. 1000 N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications +

Dimensions

d1 (mm): 2.1844
d2 (mm): 2.8
l1 (mm): 45
l2 (mm): 9
l4 (mm): 5
Square Size (mm): 2.1
z: 2
Drill Size (mm): 1.9 (drill)
TPI: 64 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features & Benefits +

Features

General purpose use, materials up to approx. 1000 N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T173 UNF Spiral Point Tap - Premium HSS

SKU: A0013374

$263.62

Inc. GST

Buy It Now

Available

The Sutton T173 UNF Spiral Point Tap by Sutton Tools is a 0 with Bright finish. It offers 20 TPI and is for Machining.
