Sutton T440 1 x 12 TPI Spiral Point Tap Intermediate - HSSE - Steam Oxide - ISO 529
Available

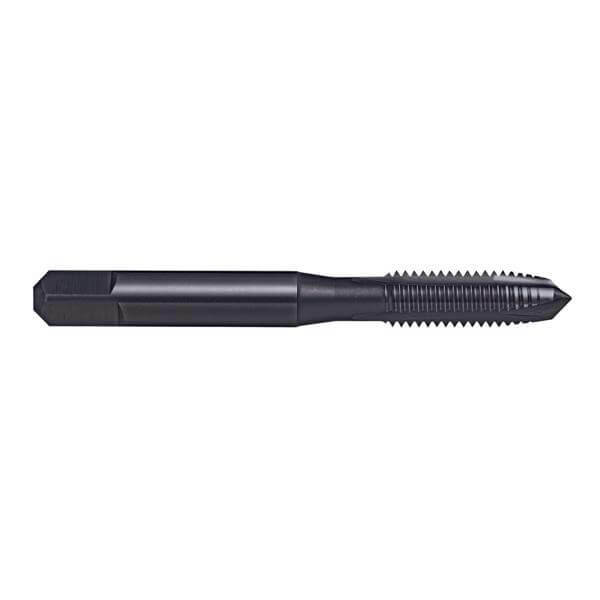

The Sutton T440 is a spiral point (gun) tap (intermediate chamfer) for UNF threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 10 sizes from #10 x 32 TPI to 1 x 12 TPI.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through holes.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 to 4 flutes, depending on size.
- Intermediate chamfer (Form D), generally for through holes.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes | Limit |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T440 0483 | #10 x 32 TPI | 32 | 4.1 | 58 | 16 | 22 | 5 | 4 | 7 | 3 | GH3 |
| T440 0635 | 1/4 x 28 TPI | 28 | 5.5 | 66 | 19 | 25 | 6.3 | 5 | 8 | 3 | GH3 |
| T440 0794 | 5/16 x 24 TPI | 24 | 6.9 | 72 | 22 | 30 | 8 | 6.3 | 9 | 3 | GH4 |
| T440 0953 | 3/8 x 24 TPI | 24 | 8.5 | 80 | 24 | 33 | 10 | 8 | 11 | 3 | GH4 |
| T440 1111 | 7/16 x 20 TPI | 20 | 9.8 | 85 | 25 | - | 8 | 6.3 | 9 | 3 | GH5 |
| T440 1270 | 1/2 x 20 TPI | 20 | 11.5 | 89 | 29 | - | 9 | 7.1 | 10 | 3 | GH5 |
| T440 1588 | 5/8 x 18 TPI | 18 | 12.8 | 102 | 32 | - | 12.5 | 10 | 13 | 3 | GH5 |
| T440 1905 | 3/4 x 16 TPI | 16 | 17.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 | GH6 |
| T440 2223 | 7/8 x 14 TPI | 14 | 20.5 | 118 | 38 | - | 16 | 12.5 | 16 | 4 | GH6 |
| T440 2540 | 1 x 12 TPI | 12 | 23.5 | 130 | 45 | - | 18 | 14 | 18 | 4 | GH7 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T440 |
| Type | Spiral point (gun) tap |
| Thread series | UNF |
| Material | HSSE |
| Finish | Steam Oxide |
| Chamfer | Intermediate (Form D) |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 10 sizes, #10 x 32 TPI to 1 x 12 TPI |
Related products
Related Sutton taps: T439 UNF Spiral Point Tap Intermediate - HSSE - Bright - ISO 529, T441 UNF Spiral Point Tap Intermediate - HSSE - TiN - ISO 529, T694 UNF Spiral Point Tap Black Magic - PM-HSSE V3 - Hardlube - DIN 2184-1, T698 UNF Spiral Point Tap VA PM - PM-HSSE V3 - TiCN - DIN 2184-1, T702 UNF Spiral Point Tap - PM-HSSE V3 - Steam Oxide - DIN 2184-1.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T440 UNF Spiral Point Tap Intermediate - HSSE - Steam Oxide - ISO 529: 12 / #1
SKU: A0015415 | Model: T4402540
TPI 12, Diameter (inch) #1. Features
The Sutton T440 is a spiral point (gun) tap (intermediate chamfer) for UNF threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 10 sizes from #10 x 32 TPI to 1 x 12 TPI.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The tap is built to ISO 529: short machine tap construction.
