Sutton T694 1/2 x 20 TPI Spiral Point Tap Black Magic - PM-HSSE V3 - Hardlube - DIN 2184-1
Available

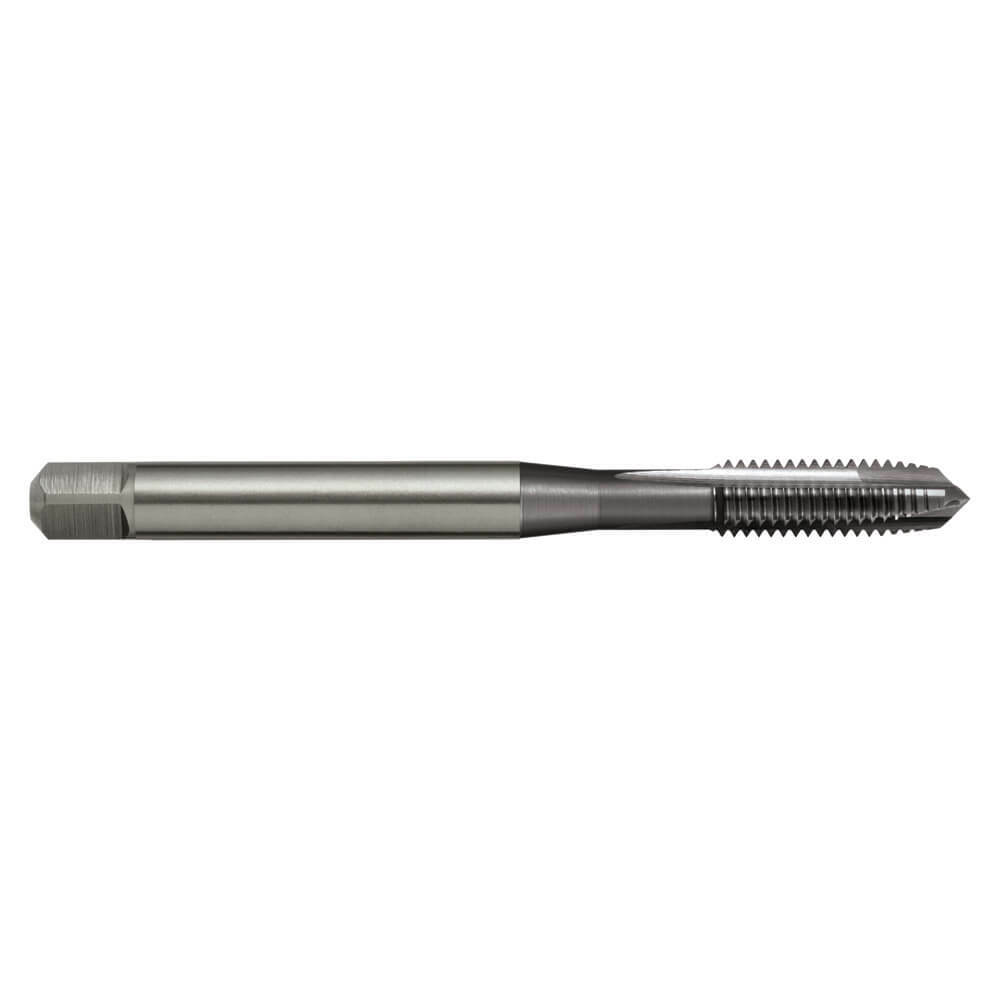

The Sutton T694 is a spiral point (gun) tap (UNI designation, Black Magic range) for UNF threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a Hardlube (TiAlN + WC/C) coating. This listing covers 9 sizes from #4 x 48 TPI to 5/8 x 18 TPI.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The UNI designation is for normal, general purpose materials, with a normal rake angle and high thread relief, in powder metal high speed steel. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is 2BX. The tap is built to DIN 2184-1.
Where this product is used
- Universal high performance tapping.
- Use in stainless steels and high strength steels up to 850 N/mm2.
- Suitable for synchronous tapping in machine operations.
- Through holes up to 3 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- Hardlube (TiAlN + WC/C) coating for tapping hard-to-machine materials, with minimum quantity lubrication (MQL) or dry machining, longer tool life and higher cutting speeds.
- 2 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance 2BX.
- The UNI designation is for normal, general purpose materials, with a normal rake angle and high thread relief, in powder metal high speed steel.
- PM-HSSE V3 offers superior tool life.
- DIN 2184-1 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

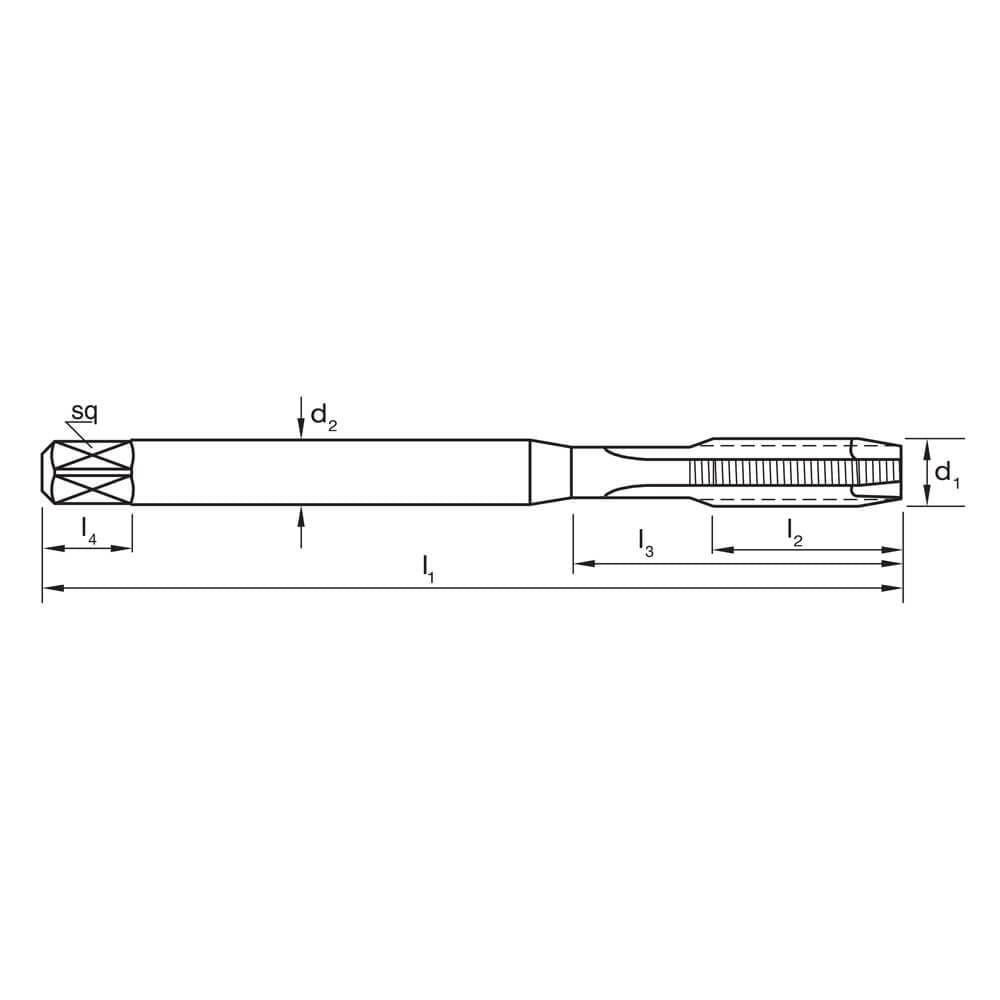

| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T694 0284 | #4 x 48 TPI | 48 | 2.35 | 56 | 11 | 18 | 3.5 | 2.7 | 6 | 2 |
| T694 0351 | #6 x 40 TPI | 40 | 2.9 | 56 | 13 | 20 | 4 | 3 | 6 | 3 |
| T694 0417 | #8 x 36 TPI | 36 | 3.5 | 63 | 13 | 21 | 4.5 | 3.4 | 6 | 3 |
| T694 0483 | #10 x 32 TPI | 32 | 4.1 | 70 | 16 | 25 | 6 | 4.9 | 8 | 3 |
| T694 0635 | 1/4 x 28 TPI | 28 | 5.5 | 80 | 19 | 30 | 7 | 5.5 | 8 | 3 |
| T694 0794 | 5/16 x 24 TPI | 24 | 6.9 | 90 | 22 | 35 | 6 | 4.9 | 8 | 3 |
| T694 0953 | 3/8 x 24 TPI | 24 | 8.5 | 90 | 20 | 39 | 7 | 5.5 | 8 | 3 |
| T694 1270 | 1/2 x 20 TPI | 20 | 11.5 | 100 | 22 | - | 9 | 7 | 10 | 4 |
| T694 1588 | 5/8 x 18 TPI | 18 | 14.5 | 100 | 22 | - | 12 | 9 | 12 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T694 |
| Type | Spiral point (gun) tap |
| Thread series | UNF |
| Material | PM-HSSE V3 |
| Finish | Hardlube |
| Designation | UNI |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | 2BX |
| Standard | DIN 2184-1 |
| Flutes | 2 to 4 |
| Sizes in this listing | 9 sizes, #4 x 48 TPI to 5/8 x 18 TPI |
