Sutton T698 UNF Spiral Point Tap - Vanadium HSS TiCN1

Sutton T698 UNF Spiral Point Tap - Vanadium HSS TiCN2

Sutton T6980284 UNF #4-48 Spiral Point Tap - HSSE V3 TiCN

Sutton T6980351 UNF #6-40 Spiral Point Tap - HSSE V3 TiCN

Sutton T6980417 UNF #8-36 Spiral Point Tap - HSSE V3 TiCN

Sutton T6980483 UNF #10-32 Spiral Point Tap - HSSE V3 TiCN

Sutton T6980635 UNF 1/4 x 28 Spiral Point Tap - HSSE V3 TiCN

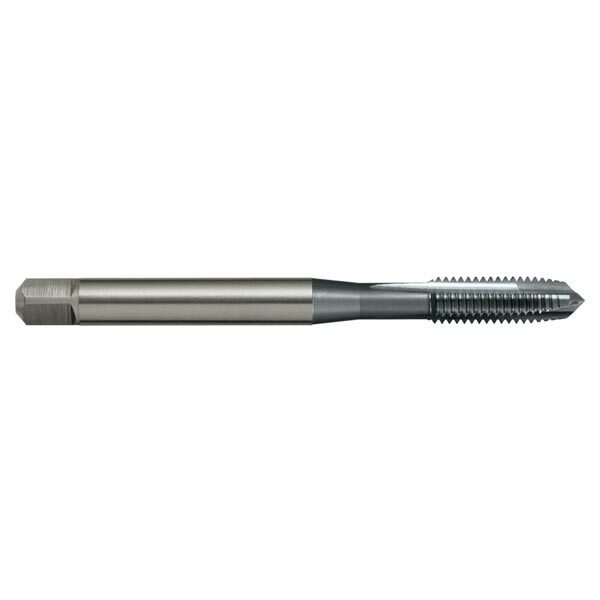

Sutton T6980794 UNF 5/16 x 24 Spiral Point Tap - HSSE V3 TiCN

Sutton T6980953 UNF 3/8 x 24 Spiral Point Tap - HSSE V3 TiCN

Sutton T6981270 UNF 1/2 x 20 Spiral Point Tap - HSSE V3 TiCN

Sutton T6981588 UNF 5/8 x 18 Spiral Point Tap - HSSE V3 TiCN

Description +

Dimensions

d1 (mm): 2.8448
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 2
Drill Size (mm): 2.35 (drill)
TPI: 48 (TPI)

Features

PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Through holes up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2BX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed
High temperature alloys - Fe based: Age Hardened
High temperature alloys - Ni / Co based: Annealed

Specifications +

Dimensions

d1 (mm): 2.8448
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 2
Drill Size (mm): 2.35 (drill)
TPI: 48 (TPI)

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2BX
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed
High temperature alloys - Fe based: Age Hardened
High temperature alloys - Ni / Co based: Annealed

Features & Benefits +

Features

PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Through holes up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T698 UNF Spiral Point Tap - Vanadium HSS TiCN

SKU: A0016048

$287.79

Inc. GST

Buy It Now

Available

The Sutton T698 UNF Spiral Point Tap by Sutton Tools is a 0 made from Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3). It offers d1 12.7 mm and is suitable for Stainless Steel - Austenitic: Age Hardened.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue
