Sutton T176 3/4 x 16 TPI Spiral Point Tap VA - HSSE - Steam Oxide - DIN 2184-1
Available

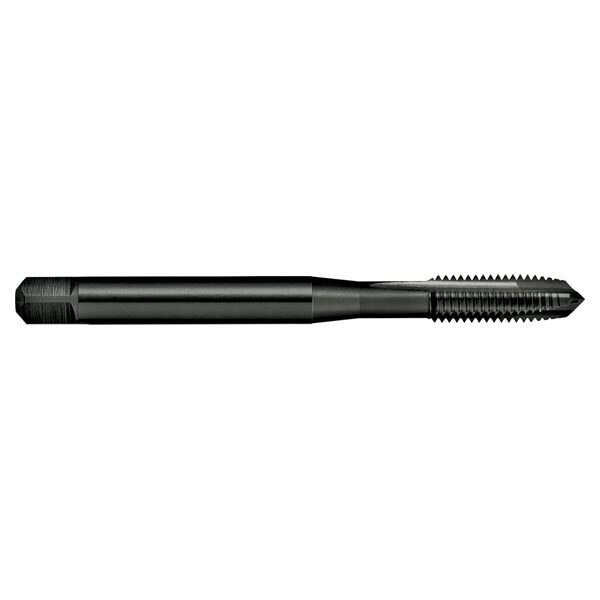

The Sutton T176 is a spiral point (gun) tap (VA designation) for UNF threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 14 sizes from #4 x 48 TPI to 1 x 12 TPI.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The VA designation is for stainless and tough steels, with a high rake angle and thread relief, so the chip flows continuously in an axial direction. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is 2B. The tap is built to DIN 2184-1.
Where this product is used
- Use in stainless steels and high strength steels up to 1000 N/mm2.
- Through holes.
- Suitable for machine operations.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 2 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance 2B.
- The VA designation is for stainless and tough steels, with a high rake angle and thread relief, so the chip flows continuously in an axial direction.
- DIN 2184-1 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

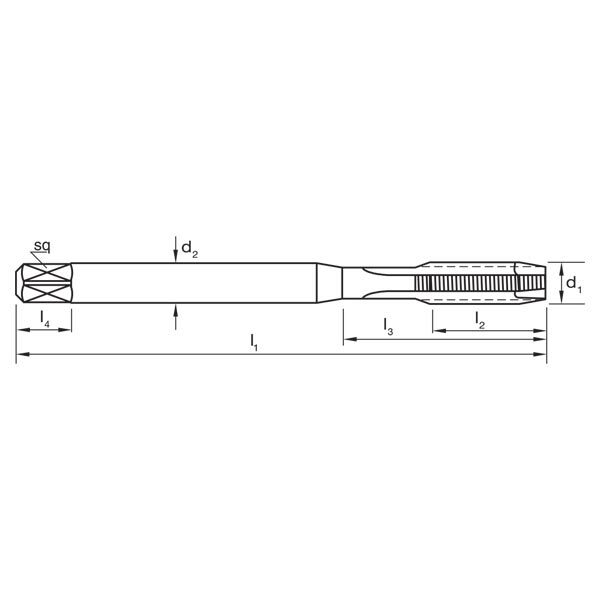

| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T176 0284 | #4 x 48 TPI | 48 | 2.35 | 56 | 11 | 18 | 3.5 | 2.7 | 6 | 2 |
| T176 0351 | #6 x 40 TPI | 40 | 2.9 | 56 | 13 | 20 | 4 | 3 | 6 | 3 |
| T176 0417 | #8 x 36 TPI | 36 | 3.5 | 63 | 13 | 21 | 4.5 | 3.4 | 6 | 3 |
| T176 0483 | #10 x 32 TPI | 32 | 4.1 | 70 | 16 | 25 | 6 | 4.9 | 8 | 3 |
| T176 0635 | 1/4 x 28 TPI | 28 | 5.5 | 80 | 19 | 30 | 7 | 5.5 | 8 | 3 |
| T176 0794 | 5/16 x 24 TPI | 24 | 6.9 | 90 | 22 | 35 | 8 | 6.2 | 9 | 3 |
| T176 0953 | 3/8 x 24 TPI | 24 | 8.5 | 100 | 20 | 35 | 10 | 8 | 11 | 3 |
| T176 1111 | 7/16 x 20 TPI | 20 | 9.8 | 100 | 24 | - | 8 | 6.2 | 8 | 3 |
| T176 1270 | 1/2 x 20 TPI | 20 | 11.5 | 110 | 28 | - | 9 | 7 | 10 | 3 |
| T176 1429 | 9/16 x 18 TPI | 18 | 12.8 | 110 | 32 | - | 11 | 9 | 12 | 3 |
| T176 1588 | 5/8 x 18 TPI | 18 | 14.5 | 110 | 32 | - | 12 | 9 | 12 | 3 |
| T176 1905 | 3/4 x 16 TPI | 16 | 17.5 | 125 | 34 | - | 14 | 11 | 14 | 4 |
| T176 2223 | 7/8 x 14 TPI | 14 | 20.5 | 140 | 34 | - | 18 | 14.5 | 17 | 4 |
| T176 2540 | 1 x 12 TPI | 12 | 23.5 | 160 | 38 | - | 18 | 14.5 | 17 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T176 |
| Type | Spiral point (gun) tap |
| Thread series | UNF |
| Material | HSSE |
| Finish | Steam Oxide |
| Designation | VA |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | 2B |
| Standard | DIN 2184-1 |
| Flutes | 2 to 4 |
| Sizes in this listing | 14 sizes, #4 x 48 TPI to 1 x 12 TPI |
