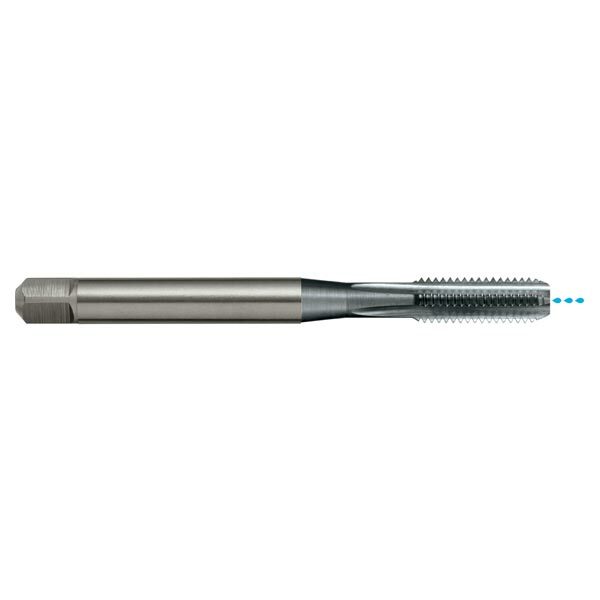

Sutton T357 M6 x 1 Straight Flute Tap DC IK - PM-HSS Co - TiCN - DIN 371
Available
The Sutton T357 is a straight flute tap (DC designation, internal coolant) for metric coarse (M) threads, made from powder metallurgy, 8% cobalt high speed steel (PM-HSS Co) with a TiCN coating. This listing covers 2 sizes from M6 x 1 to M8 x 1.25.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The chamfer is Form E (1.5 x P), for blind holes with very short thread run-out.
The thread tolerance is 6HX. The tap is built to DIN 371: reinforced shank with square drive. The internal coolant duct (IK) delivers coolant through the tap to the cutting zone.
Where this product is used
- For production tapping in die cast materials.
- Depths up to 1.5 x d1.
Design features
- Powder metallurgy, 8% cobalt high speed steel (PM-HSS Co). The cobalt keeps strength and hardness at very high cutting temperatures, which suits heavy duty tapping of materials up to 45 HRC.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 4 flutes.
- Form E chamfer, 1.5 x P.
- Thread tolerance 6HX.
- PM-HSS Co for superior tool life.
- Form E for maximum thread depth in blind holes.
- DIN 371 construction, reinforced shank with square drive.
Sizes

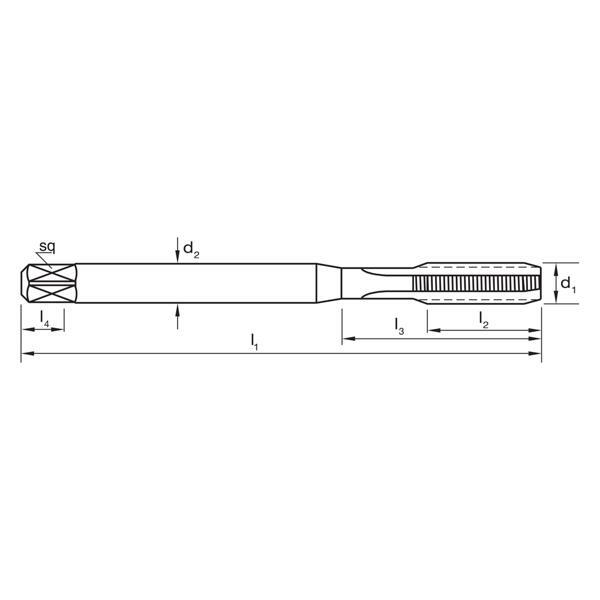

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T357 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 30 | 6 | 4.9 | 8 | 4 |
| T357 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 22 | 35 | 8 | 6.2 | 9 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T357 |
| Type | Straight flute tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSS Co |
| Finish | TiCN |
| Designation | DC - IK |
| Chamfer | Form E / 1.5 x P |
| Thread tolerance | 6HX |
| Standard | DIN 371 |
| Flutes | 4 |
| Sizes in this listing | 2 sizes, M6 x 1 to M8 x 1.25 |
