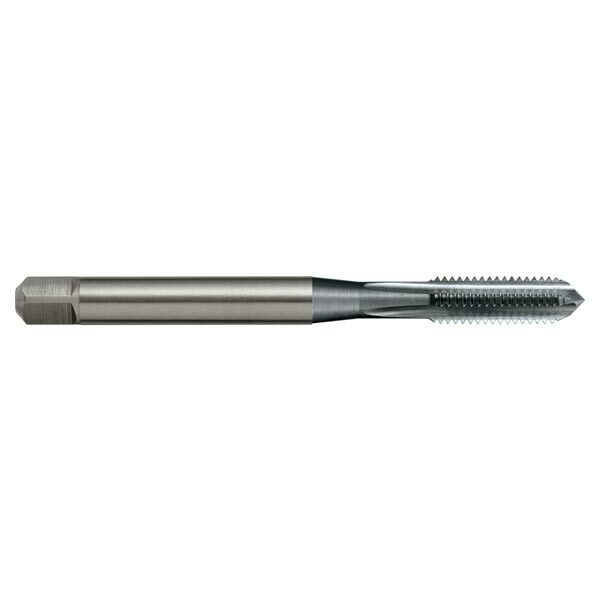

Sutton T335 Metric Straight Flute Tap - Cobalt Steel TiCN1

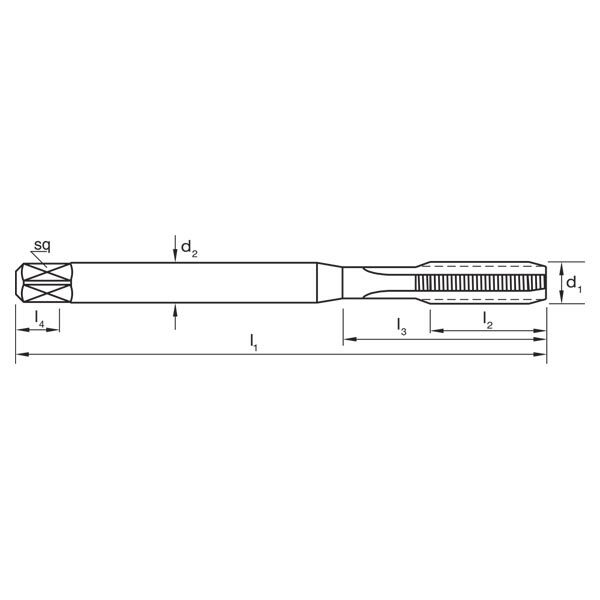

Sutton T335 Metric Straight Flute Tap - Cobalt Steel TiCN2

Sutton T3350600 Metric M6 x 1 Straight Flute Tap - Cobalt Steel TiCN

Sutton T3350800 Metric M8 x 1.25 Straight Flute Tap - Cobalt Steel TiCN

Sutton T3351000 Metric M10 x 1.5 Straight Flute Tap - Cobalt Steel TiCN

Specifications +

Specifications

Designation: DC
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form E / 1.5 x P

Application +

Applications

Aluminum & Magnesium, cast alloy ‚â§12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ‚â§12% Si - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Features & Benefits +

Features

For production tapping in die cast materials
PM-HSS Co for superior tool life
Form E for maximum thread depth in blind holes
Depths up to 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 29%

Sutton T335 Metric Straight Flute Tap - Cobalt Steel TiCN

SKU: A0014543

Type: Threading Die

$66.37

$66.37 ~~$94.81~~

Inc. GST

⚙Cobalt HSS Construction

⚙Sutton Metric Straight Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Features

For production tapping in die cast materials
PM-HSS Co for superior tool life
Form E for maximum thread depth in blind holes
Depths up to 1.5 x d1

Specifications

Designation: DC
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form E / 1.5 x P

Applications

Aluminum & Magnesium, cast alloy ‚â§12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ‚â§12% Si - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
