Description
Description
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 28
- l4 (mm): 10
- Square Size (mm): 7
- z: 4
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Features
- For production tapping in die cast materials
- PM-HSS Co for superior tool life
- Form E for maximum thread depth in blind holes
- Depths up to 1.5 x d1
Specifications
- Designation: DC
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Straight Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form E / 1.5 x P
Applications
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Specifications
Specifications
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 28
- l4 (mm): 10
- Square Size (mm): 7
- z: 4
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Specifications
- Designation: DC
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Straight Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form E / 1.5 x P
Applications
Applications
Applications
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Features & Benefits
Features & Benefits
Features
- For production tapping in die cast materials
- PM-HSS Co for superior tool life
- Form E for maximum thread depth in blind holes
- Depths up to 1.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

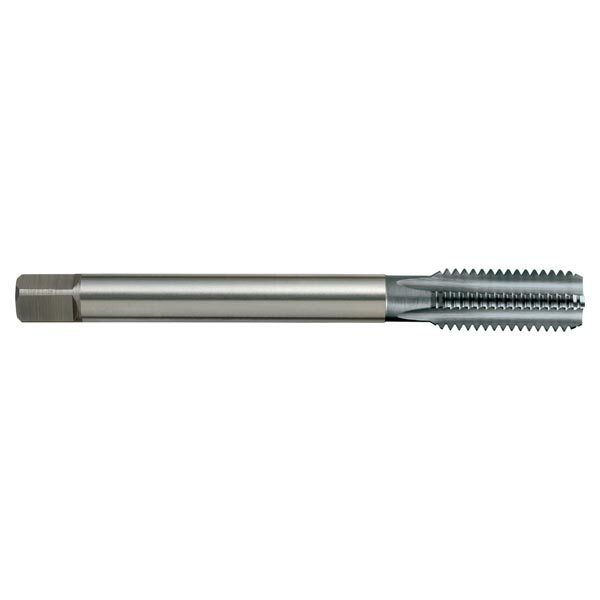

Sutton T336 Metric Straight Flute Tap - Cobalt Steel TiCN
Sutton T336 Metric Straight Flute Tap - Cobalt Steel TiCN
SKU: A0014546
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T336 Metric Straight Flute Tap by Sutton Tools is a 0 made from Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides Drill Size 10.2 (drill) and is suitable for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 28
- l4 (mm): 10
- Square Size (mm): 7
- z: 4
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Features
- For production tapping in die cast materials
- PM-HSS Co for superior tool life
- Form E for maximum thread depth in blind holes
- Depths up to 1.5 x d1
Specifications
- Designation: DC
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Straight Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form E / 1.5 x P
Applications
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Specifications
Specifications
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 28
- l4 (mm): 10
- Square Size (mm): 7
- z: 4
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Specifications
- Designation: DC
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Straight Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form E / 1.5 x P
Applications
Applications
Applications
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Features & Benefits
Features & Benefits
Features
- For production tapping in die cast materials
- PM-HSS Co for superior tool life
- Form E for maximum thread depth in blind holes
- Depths up to 1.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T336 Metric Straight Flute Tap - Cobalt Steel TiCN
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T336 Metric Straight Flute Tap by Sutton Tools is a 0 made from Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides Drill Size 10.2 (drill) and is suitable for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable. |
Regular price
From $94.97
Sale price
From $94.97
Regular price
Unit price
/per
| Sutton Tools |
Diameter (metric)
M12,M14,M16,M20
|
Choose your option
Sutton T336 Metric Straight Flute Tap - Cobalt Steel TiCN
Sutton T336 Metric Straight Flute Tap - Cobalt Steel TiCN
SKU: A0014546
Available
The Sutton T336 Metric Straight Flute Tap by Sutton Tools is a 0 made from Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides Drill Size 10.2 (drill) and is suitable for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable.
