Sutton T297 Metric Straight Flute Tap - Carbide TiCN1

Sutton T297 Metric Straight Flute Tap - Carbide TiCN2

Sutton T2970300 Metric M3 x 0.5 Straight Flute Tap - Carbide TiCN

Sutton T2970400 Metric M4 x 0.7 Straight Flute Tap - Carbide TiCN

Sutton T2970500 Metric M5 x 0.8 Straight Flute Tap - Carbide TiCN

Sutton T2970600 Metric M6 x 1 Straight Flute Tap - Carbide TiCN

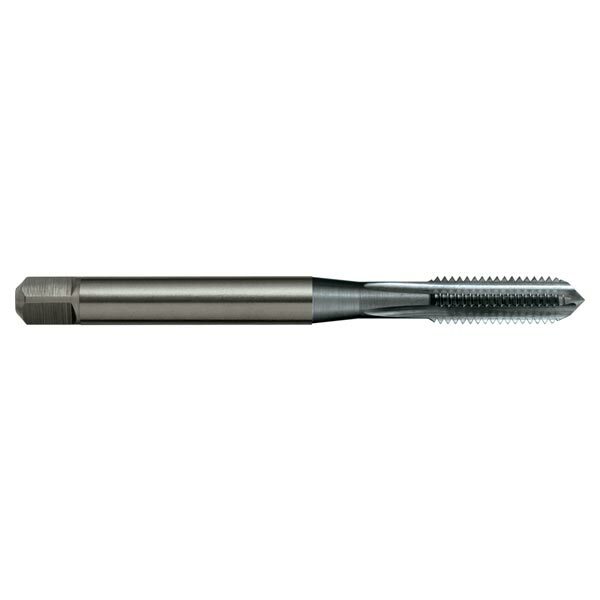

Sutton T2970800 Metric M8 x 1.25 Straight Flute Tap - Carbide TiCN

Sutton T2971000 Metric M10 x 1.5 Straight Flute Tap - Carbide TiCN

Sutton T2971200 Metric x 1.75 Straight Flute Tap - Carbide TiCN

Sutton T2971600 Metric x 2 Straight Flute Tap - Carbide TiCN

Sutton T2972000 Metric x 2.5 Straight Flute Tap - Carbide TiCN

Specifications +

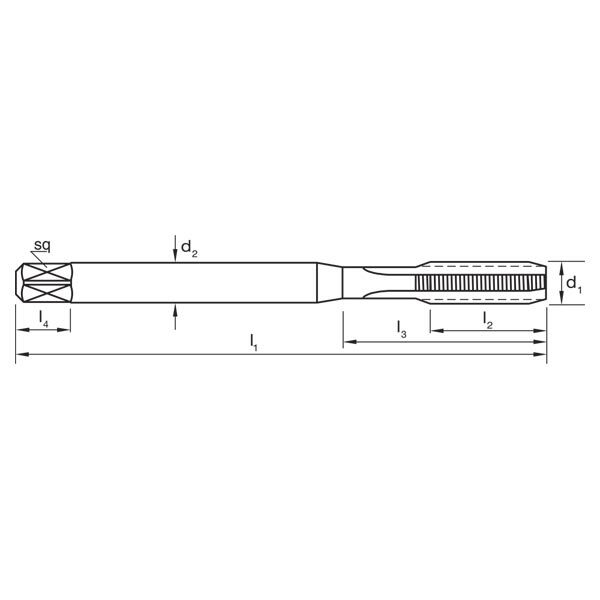

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 4
Drill Size (mm): 2.55 (drill)
Pitch (mm): 0.5 (pitch)

Specifications

Designation: VH (for very hard materials)
Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371 / DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form D / 4 x P

Application +

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Hardened steel: Hardened & Tempered
Cast Iron: Hardened & Tempered

Features & Benefits +

Features

XH, use in hardened steels 42-52 HRc
VH, use in hardened steels 50-60 HRc
Through & blind holes
Depths up to approx. 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T297 Metric Straight Flute Tap - Carbide TiCN

SKU: A0014286

Type: Threading Die

$331.33

Inc. GST

⚙Carbide Construction

⚙Sutton Metric Straight Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑Hardened for Longer Life

Available

Product Highlights −

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 4
Drill Size (mm): 2.55 (drill)
Pitch (mm): 0.5 (pitch)

Features

XH, use in hardened steels 42-52 HRc
VH, use in hardened steels 50-60 HRc
Through & blind holes
Depths up to approx. 1.5 x d1

Specifications

Designation: VH (for very hard materials)
Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371 / DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form D / 4 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Hardened steel: Hardened & Tempered
Cast Iron: Hardened & Tempered

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue

Specifications +

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 4
Drill Size (mm): 2.55 (drill)
Pitch (mm): 0.5 (pitch)

Specifications

Designation: VH (for very hard materials)
Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371 / DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form D / 4 x P

Application +

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Hardened steel: Hardened & Tempered
Cast Iron: Hardened & Tempered

Features & Benefits +

Features

XH, use in hardened steels 42-52 HRc
VH, use in hardened steels 50-60 HRc
Through & blind holes
Depths up to approx. 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:

M3mm threading die
Model Number: T2970300
M4mm threading die
Model Number: T2970400
M5mm threading die
Model Number: T2970500
M6mm threading die
Model Number: T2970600
M8mm threading die
Model Number: T2970800
M10mm threading die
Model Number: T2971000
M12mm threading die
Model Number: T2971200
M16mm threading die
Model Number: T2971600
M20mm threading die
Model Number: T2972000
