Sutton T293 Metric Straight Flute Tap - Premium HSS TiCN1

Sutton T293 Metric Straight Flute Tap - Premium HSS TiCN2

Sutton T2930600 Metric M6 x 1 Straight Flute Tap - HSSE V3 TiCN

Sutton T2930800 Metric M8 x 1.25 Straight Flute Tap - HSSE V3 TiCN

Sutton T2931000 Metric M10 x 1.5 Straight Flute Tap - HSSE V3 TiCN

Sutton T2931200 Metric M12 x 1.75 Straight Flute Tap - HSSE V3 TiCN

Sutton T2931400 Metric M14 x 2 Straight Flute Tap - HSSE V3 TiCN

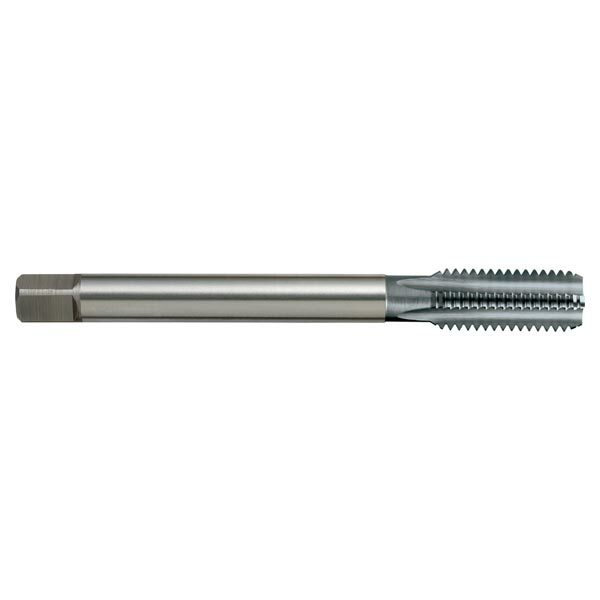

Sutton T2931600 Metric M16 x 2 Straight Flute Tap - HSSE V3 TiCN

Sutton T2932000 Metric M20 x 2.5 Straight Flute Tap - HSSE V3 TiCN

Specifications +

Dimensions

d1: M6
d2 (mm): 4.5
l1 (mm): 80
l2 (mm): 19
l4 (mm): 6
Square Size (mm): 3.4
z: 4
Drill Size (mm): 5 (drill)
Pitch (mm): 1 (pitch)

Specifications

Designation: GG (for cast iron materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Application +

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) - Pearlitic

Features & Benefits +

Features

For use in grey cast iron (GG)
Through & blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 29%

Sutton T293 Metric Straight Flute Tap - Premium HSS TiCN

SKU: A0014251

Type: Threading Die

$65.36

$65.36 ~~$93.37~~

Inc. GST

⚙Professional Grade Construction

⚙Sutton Metric Straight Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1: M6
d2 (mm): 4.5
l1 (mm): 80
l2 (mm): 19
l4 (mm): 6
Square Size (mm): 3.4
z: 4
Drill Size (mm): 5 (drill)
Pitch (mm): 1 (pitch)

Features

For use in grey cast iron (GG)
Through & blind holes
Depths up to 3 x d1

Specifications

Designation: GG (for cast iron materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) - Pearlitic
