Sutton T295 Metric Straight Flute Tap - 11% Cobalt Steel TiCN1

Sutton T295 Metric Straight Flute Tap - 11% Cobalt Steel TiCN2

Sutton T2950300 Metric M3 x 0.5 Straight Flute Tap - 11% Cobalt Steel TiCN

Sutton T2950400 Metric M4 x 0.7 Straight Flute Tap - 11% Cobalt Steel TiCN

Sutton T2950500 Metric M5 x 0.8 Straight Flute Tap - 11% Cobalt Steel TiCN

Sutton T2950600 Metric M6 x 1 Straight Flute Tap - 11% Cobalt Steel TiCN

Sutton T2950800 M8 x 1.25 Straight Flute Tap - 11% Cobalt Steel TiCN

Sutton T2951000 M10 x 1.5 Straight Flute Tap - 11% Cobalt Steel TiCN

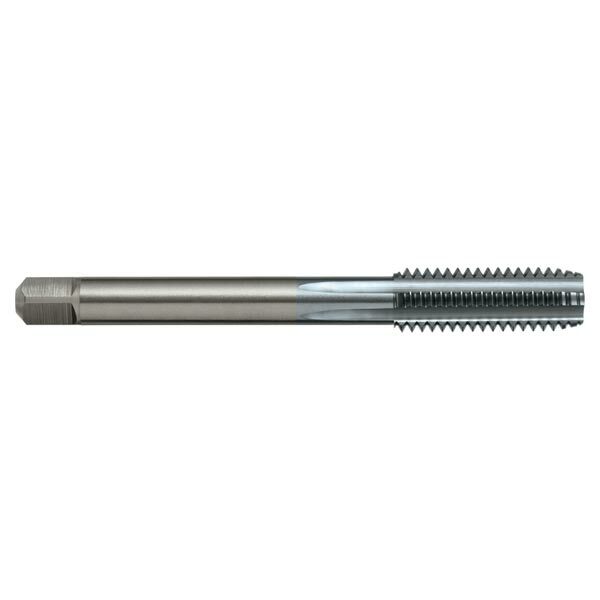

Sutton T2951200 M12 x 1.75 Straight Flute Tap - 11% Cobalt Steel TiCN

Sutton T2951600 Metric M16 x 2 Straight Flute Tap - 11% Cobalt Steel TiCN

Sutton T2952000 M20 x 2.5 Straight Flute Tap - 11% Cobalt Steel TiCN

Description +

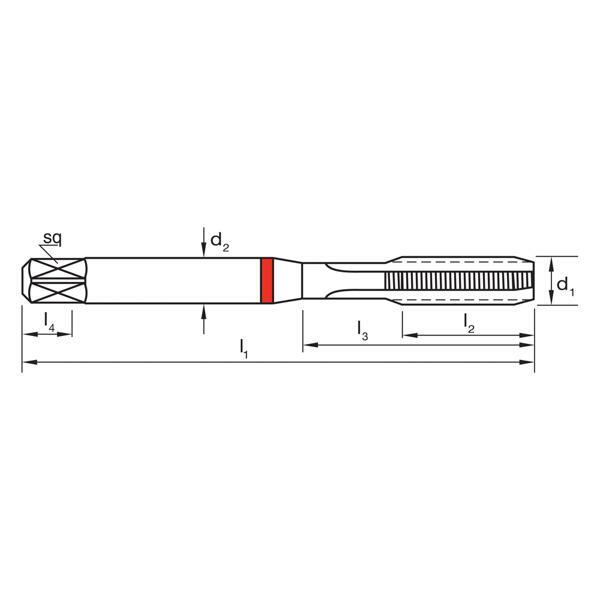

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 46
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 4
Drill Size (mm): 2.55 (drill)
Pitch (mm): 0.5 (pitch)

Features

Use in hardened steels 42-52 HRc
Through & blind holes
Depths up to 1.5 x d1

Specifications

Designation: XH (for extra hard materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: Sutton
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form D / 4 x P

Applications

Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Pearlitic
Hardened steel:Hardened & Tempered
Cast Iron - Chilled: Cast

Specifications +

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 46
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 4
Drill Size (mm): 2.55 (drill)
Pitch (mm): 0.5 (pitch)

Specifications

Designation: XH (for extra hard materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: Sutton
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form D / 4 x P

Application +

Applications

Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Pearlitic
Hardened steel:Hardened & Tempered
Cast Iron - Chilled: Cast

Features & Benefits +

Features

Use in hardened steels 42-52 HRc
Through & blind holes
Depths up to 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T295 Metric Straight Flute Tap - 11% Cobalt Steel TiCN

SKU: A0014267

$87.64

Inc. GST

Buy It Now

Available

The Sutton T295 Metric Straight Flute Tap by Sutton Tools is a 0 with TiCN finish. It offers M10 and is suitable for Hardened steel:Hardened & Tempered.
