Sutton T292 M3 x 0.5 Straight Flute Tap GG - HSSE - TiCN - DIN 371
Available

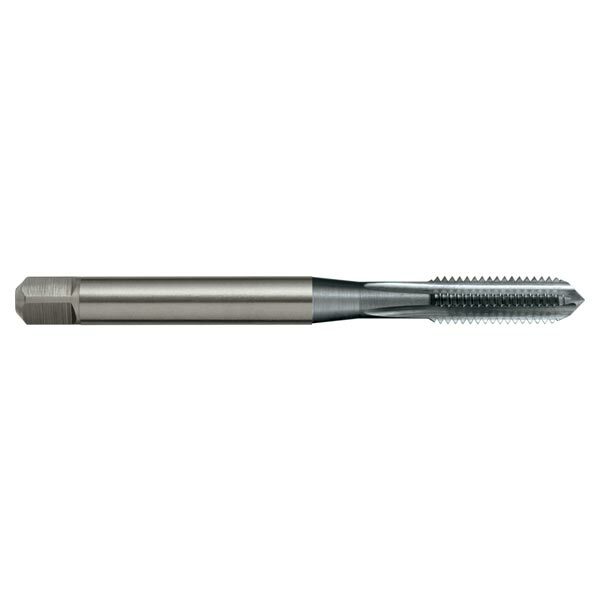

The Sutton T292 is a straight flute tap (GG designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a TiCN coating. This listing covers 6 sizes from M3 x 0.5 to M10 x 1.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The GG designation is for cast iron, with straight flutes and a low rake angle. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is 6HX. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- For use in grey cast iron (GG).
- Through & blind holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 4 flutes.
- Form C chamfer, 2.5 x P.
- Thread tolerance 6HX.
- The GG designation is for cast iron, with straight flutes and a low rake angle.
- DIN 371 construction, reinforced shank with square drive.
Sizes

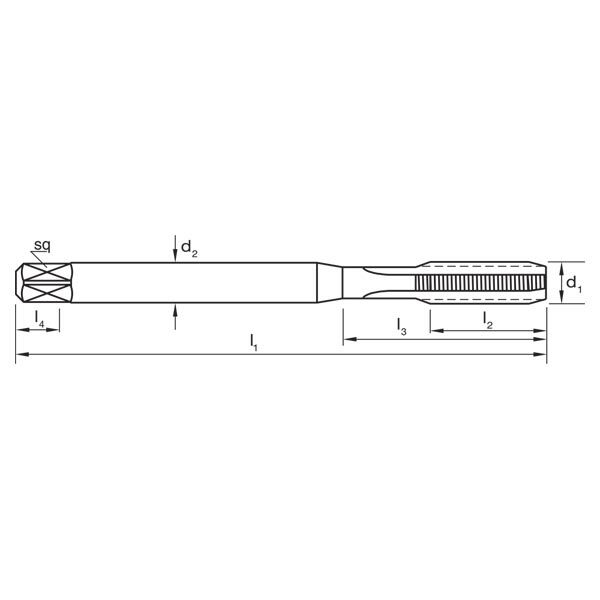

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T292 0300 | M3 x 0.5 | 0.5 | 2.5 | 56 | 11 | 18 | 3.5 | 2.7 | 6 | 4 |
| T292 0400 | M4 x 0.7 | 0.7 | 3.3 | 63 | 13 | 21 | 4.5 | 3.4 | 6 | 4 |
| T292 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 16 | 25 | 6 | 4.9 | 8 | 4 |
| T292 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 30 | 6 | 4.9 | 8 | 4 |
| T292 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 22 | 35 | 8 | 6.2 | 9 | 4 |
| T292 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 24 | 39 | 10 | 8 | 11 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T292 |
| Type | Straight flute tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | TiCN |
| Designation | GG |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | 6HX |
| Standard | DIN 371 |
| Flutes | 4 |
| Sizes in this listing | 6 sizes, M3 x 0.5 to M10 x 1.5 |
Related products
Related Sutton taps: T293 Metric Coarse Straight Flute Tap GG - HSSE - TiCN - DIN 376, T291 Metric Coarse Straight Flute Tap GG - HSSE - Plasma Nitride + Steam Oxide - DIN 376, T290 Metric Coarse Straight Flute Tap GG - HSSE - Plasma Nitride + Steam Oxide - DIN 371, T294 Metric Coarse Straight Flute Tap XH - SPM - TiCN, T295 Metric Coarse Straight Flute Tap XH - SPM - TiCN.
