Sutton T290 Metric Straight Flute Tap - Premium HSS Ni/Blue1

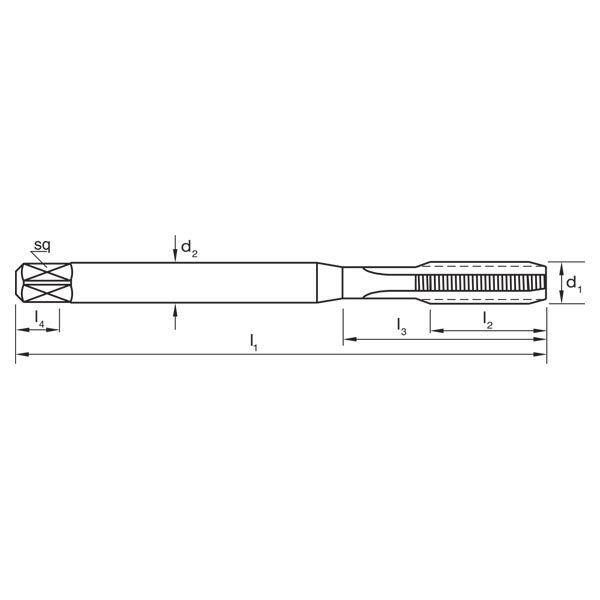

Sutton T290 Metric Straight Flute Tap - Premium HSS Ni/Blue2

Sutton T2900300 Metric M3 x 0.5 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T2900400 Metric M4 x 0.7 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T2900500 Metric M5 x 0.8 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T2900600 Metric M6 x 1 Straight Flute Tap - HSSE V3 Ni/Blue

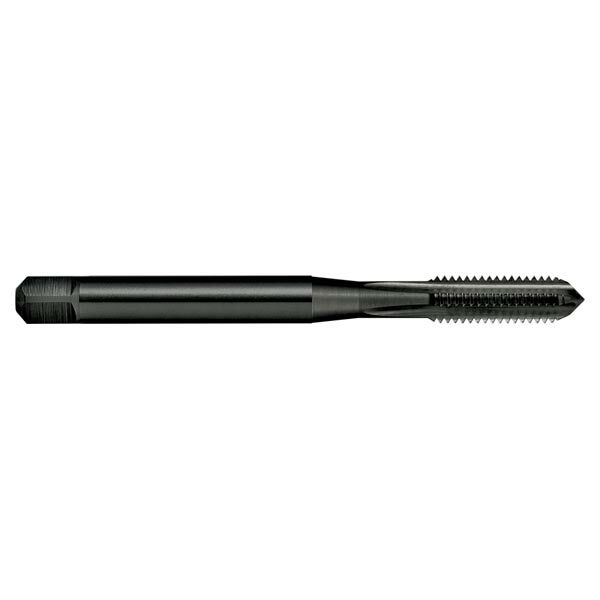

Sutton T2900800 Metric M8 x 1.25 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T2901000 Metric M10 x 1.5 Straight Flute Tap - HSSE V3 Ni/Blue

Specifications +

Specifications

Designation: GG (for cast iron)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Plasma Nitride (Ni) + Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Application +

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) ‚Äì Pearlitic
Cast Iron, Nodular (GGG) ‚Äì Ferritic
Cast Iron, Nodular (GGG) - Pearlitic

Features & Benefits +

Features

For use in grey cast iron (GG)
Through & blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton T290 Metric Straight Flute Tap - Premium HSS Ni/Blue

SKU: A0014232

Type: Threading Die

$24.71

$24.71 ~~$35.31~~

Inc. GST

⚙Professional Grade Construction

⚙Sutton Metric Straight Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Features

For use in grey cast iron (GG)
Through & blind holes
Depths up to 3 x d1

Specifications

Designation: GG (for cast iron)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Plasma Nitride (Ni) + Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) ‚Äì Pearlitic
Cast Iron, Nodular (GGG) ‚Äì Ferritic
Cast Iron, Nodular (GGG) - Pearlitic
