Sutton T286 Metric Straight Flute Tap - Premium HSS 1

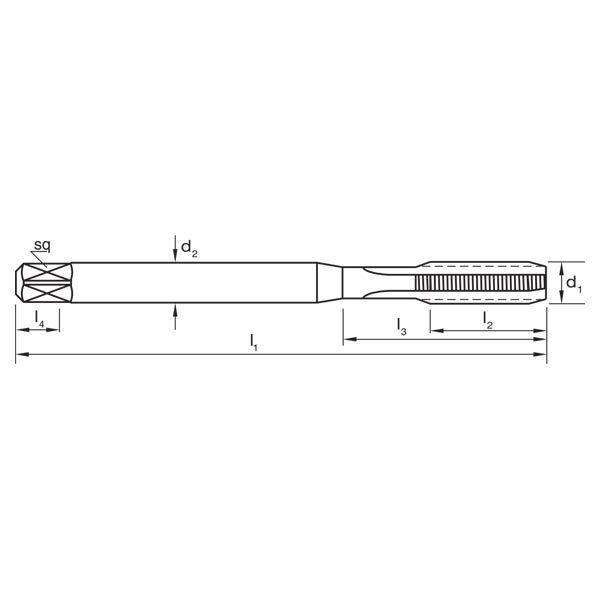

Sutton T286 Metric Straight Flute Tap - Premium HSS 2

Sutton T2860200 Metric M2 x 0.4 Straight Flute Tap - HSSE V3

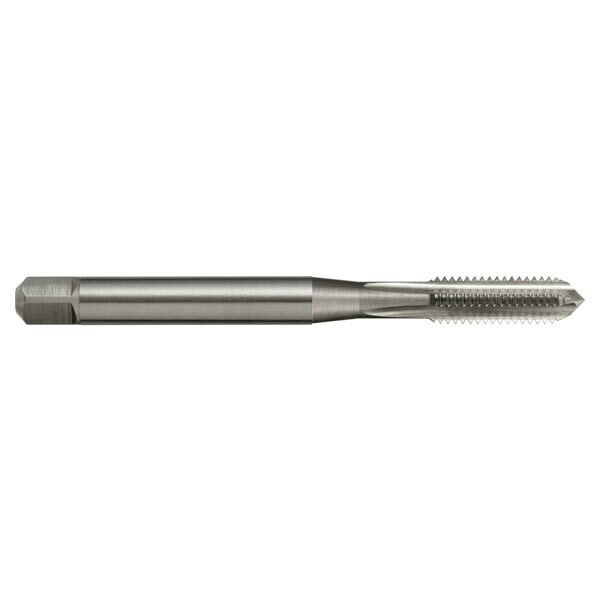

Sutton T2860220 Metric M2.2 x 0.45 Straight Flute Tap - HSSE V3

Sutton T2860230 Metric M2.3 x 0.4 Straight Flute Tap - HSSE V3

Sutton T2860250 Metric M2.5 x 0.45 Straight Flute Tap - HSSE V3

Sutton T2860260 Metric M2.6 x 0.45 Straight Flute Tap - HSSE V3

Sutton T2860300 Metric M3 x 0.5 Straight Flute Tap - HSSE V3

Sutton T2860350 Metric M3.5 x 0.6 Straight Flute Tap - HSSE V3

Sutton T2860400 Metric M4 x 0.7 Straight Flute Tap - HSSE V3

Sutton T2860500 Metric M5 x 0.8 Straight Flute Tap - HSSE V3

Sutton T2860600 Metric M6 x 1 Straight Flute Tap - HSSE V3

Sutton T2860800 Metric M8 x 1.25 Straight Flute Tap - HSSE V3

Sutton T2861000 Metric M10 x 1.5 Straight Flute Tap - HSSE V3

Description +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Depths up to 1.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Depths up to 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T286 Metric Straight Flute Tap - Premium HSS

SKU: A0014184

$41.39

Inc. GST

Buy It Now

Available

The Sutton T286 Metric Straight Flute Tap by Sutton Tools is a 0 made of Premium Grade High Speed Steel (HSSE-V3). It provides depths up to 1.5 x d1 and is suitable for Steel - Low alloy & cast < 5% of alloying elements: Annealed.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue
