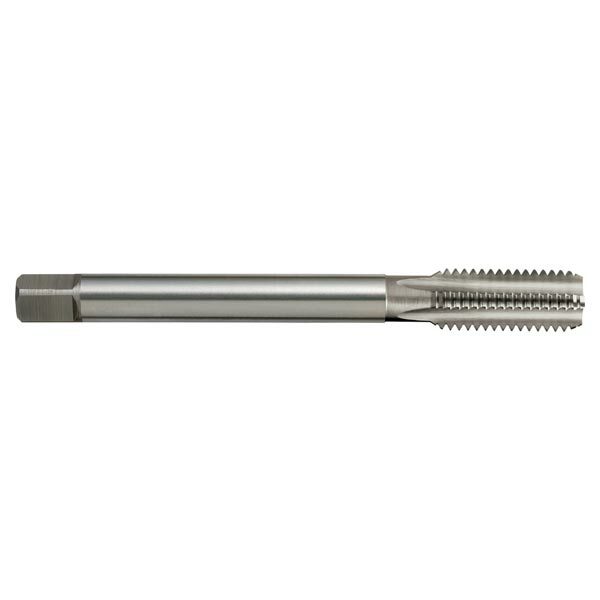

Sutton T287 M6 x 1 Straight Flute Tap - HSSE - Bright - DIN 376
Available
The Sutton T287 is a straight flute tap (N designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 12 sizes from M6 x 1 to M30 x 3.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 376: reduced shank with square drive.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Depths up to 1.5 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- 3 to 4 flutes, depending on size.
- Form C chamfer, 2.5 x P.
- Thread tolerance ISO 2 / 6H.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- DIN 376 construction, reduced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T287 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 4.5 | 3.4 | 6 | 3 |
| T287 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 22 | 6 | 4.9 | 8 | 3 |
| T287 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 24 | 7 | 5.5 | 8 | 3 |
| T287 1200 | M12 x 1.75 | 1.75 | 10.2 | 110 | 28 | 9 | 7 | 10 | 3 |
| T287 1400 | M14 x 2 | 2 | 12 | 110 | 30 | 11 | 9 | 12 | 3 |
| T287 1600 | M16 x 2 | 2 | 14 | 110 | 32 | 12 | 9 | 12 | 4 |
| T287 1800 | M18 x 2.5 | 2.5 | 15.5 | 125 | 34 | 14 | 11 | 14 | 4 |
| T287 2000 | M20 x 2.5 | 2.5 | 17.5 | 140 | 34 | 16 | 12 | 15 | 4 |
| T287 2200 | M22 x 2.5 | 2.5 | 19.5 | 140 | 34 | 18 | 14.5 | 17 | 4 |
| T287 2400 | M24 x 3 | 3 | 21 | 160 | 38 | 18 | 14.5 | 17 | 4 |
| T287 2700 | M27 x 3 | 3 | 24 | 160 | 38 | 20 | 16 | 19 | 4 |
| T287 3000 | M30 x 3.5 | 3.5 | 26.5 | 180 | 45 | 22 | 18 | 21 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T287 |
| Type | Straight flute tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Bright |
| Designation | N |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 376 |
| Flutes | 3 to 4 |
| Sizes in this listing | 12 sizes, M6 x 1 to M30 x 3.5 |
