Sutton T389 M3 x 0.5 Straight Flute Tap Left Hand Taper - HSS - Bright - ISO 529
Available

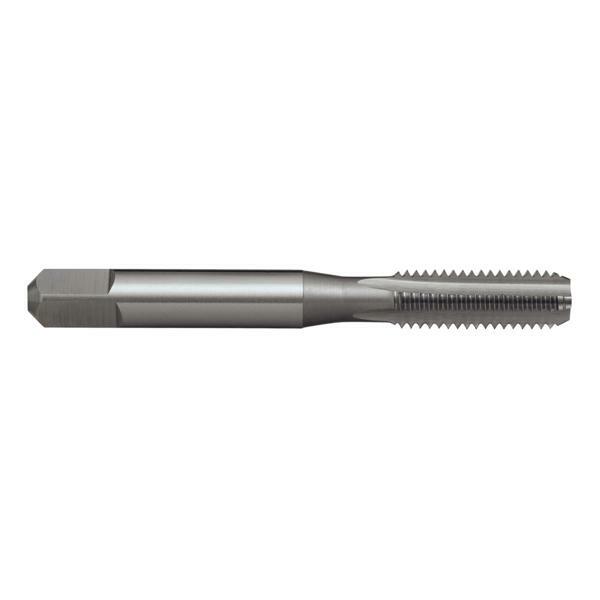

The Sutton T389 is a straight flute tap (taper chamfer, left hand) for metric coarse (M) threads, made from high speed steel (HSS) with a bright finish. This listing covers 11 sizes from M3 x 0.5 to M20 x 2.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a taper chamfer (Form A, 6 to 8 threads on the lead), for short through holes.
The thread tolerance is ISO 2 / 6H LH. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 3 to 4 flutes, depending on size.
- Taper chamfer (Form A), for short through holes.
- Thread tolerance ISO 2 / 6H LH.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T389 0300 | M3 x 0.5 | 0.5 | 2.5 | 48 | 11 | 15 | 3.15 | 2.5 | 5 | 3 |
| T389 0400 | M4 x 0.7 | 0.7 | 3.3 | 53 | 13 | 18 | 4 | 3.15 | 6 | 3 |
| T389 0500 | M5 x 0.8 | 0.8 | 4.2 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T389 0600 | M6 x 1 | 1 | 5 | 66 | 19 | 26 | 6.3 | 5 | 8 | 3 |
| T389 0800 | M8 x 1.25 | 1.25 | 6.8 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T389 1000 | M10 x 1.5 | 1.5 | 8.5 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T389 1200 | M12 x 1.75 | 1.75 | 10.2 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T389 1400 | M14 x 2 | 2 | 12 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T389 1600 | M16 x 2 | 2 | 14 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T389 1800 | M18 x 2.5 | 2.5 | 15.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T389 2000 | M20 x 2.5 | 2.5 | 17.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T389 |
| Type | Straight flute tap |
| Thread series | Metric coarse (M) |
| Material | HSS |
| Finish | Bright |
| Chamfer | Taper (Form A) |
| Thread tolerance | ISO 2 / 6H LH |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 11 sizes, M3 x 0.5 to M20 x 2.5 |
Related products
Related Sutton taps: T390 Metric Coarse Straight Flute Tap Left Hand Intermediate - HSS - Bright - ISO 529, T391 Metric Coarse Straight Flute Tap Left Hand Bottoming - HSS - Bright - ISO 529, T386 Metric Coarse Straight Flute Tap Bottoming - HSS - Bright - ISO 529, T392 Metric Coarse Straight Flute Tap Oversize Bottoming - HSS - Bright - ISO 529, T385 Metric Coarse Straight Flute Tap Intermediate - HSS - Bright - ISO 529.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T389 Metric Coarse Straight Flute Tap Left Hand Taper - HSS - Bright - ISO 529: 0.5
SKU: A0014859 | Model: T3890300
This is the pitch 0.5mm option of the Sutton T389 Metric Coarse Straight Flute Tap Left Hand Taper - HSS - Bright - ISO 529. Key details for this option: thread size M3 x 0.5, thread length 11mm, tapping drill size 2.5mm, square size 2.5mm, shank diameter 3.15mm.
Sutton Straight Flute Taps - Left Hand - M - Taper
The Sutton T389 is a straight flute tap (taper chamfer, left hand) for metric coarse (M) threads, made from high speed steel (HSS) with a bright finish. This listing covers 11 sizes from M3 x 0.5 to M20 x 2.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a taper chamfer (Form A, 6 to 8 threads on the lead), for short through holes.
The thread tolerance is ISO 2 / 6H LH. The tap is built to ISO 529: short machine tap construction.
